ESL Refresh Tus Nqi thiab Tso Tawm Ua Haujlwm

Qhov Tseem Ceeb Txwv

Electronic Shelf Labels ua haujlwm raws li kev txwv lub cev uas tsis muaj qhov kev lag luam tuaj yeem pom:Electrophoretic particles txav los ntawm cov kua dej khov, thiab cov kua nplaum nplaum tiv thaiv kev txav. Tsis muaj software hloov tshiab yuav kho qhov no.

Tus nqi tshiab ntawm ESL- feem ntau300ms txog 2000msrau qhov hloov tshiab puv npo- tawm ncaj qha los ntawm lub sijhawm xav tau rau kev them nyiaj titanium dioxide thiab cov pa roj carbon dub kom txav los ntawm cov kuab tshuaj hydrocarbon nyob rau hauv daim ntawv thov hluav taws xob. Cov particles ntsib lub zog rub (Stokes luag, yog tias koj xav tau cov ntsiab lus technical, lej tom qab nws tseem ceeb dua li qhov ua tau zoo: cov khoom qeeb qeeb hauv cov kua dej tuab). Lawv cuam tshuam electrostatically nrog cov khoom nyob sib ze. Lawv ua raws li cov phab ntsa capsule tom qab so ntev.

Txhua millisecond ntawm lub sijhawm tshiab qhia txog qhov tseeb molecular- teev cov xwm txheej tshwm sim hauv ntau lab microcapsules ib txhij. Cov neeg tuaj ntawm LCD lossis OLED keeb kwm yav dhau yuav tsum tso tseg tus qauv kev xav ntawd tag nrho. Cov no tsis qhia tias "scan" pixels nrog electrons. Cov no yog cov tshuab electrochemical uas lub cev hloov cov teeb meem.

Tsav Waveforms: Qhov Chaw Engineering ntsib Electrochemistry

Covtsav waveformyog qhov twg optimization dag zog tsom feem ntau intensively. Nws yog qhov hluav taws xob- lub sijhawm ua ntu zus uas yuav tsum ua kom tiav plaub lub hom phiaj ib txhij: tshem tawm cov duab dhau los, qhib cov lus tsis txaus ntseeg, tsim kom muaj kev siv greyscale, thiab sau cov duab tshiab-tag nrho thaum txo qis kev siv hluav taws xob, cov khoom cuav, thiab tag nrho lub sijhawm rov ua dua.

Erasurelos ua ntej. Cov zaub tsav tag nrho cov pixels mus rau ib qho teeb meem kho qhov muag, feem ntau yog dawb. Vim li cas thab? Vim EPD cov khoom nthuav qhia txoj hauv kev - nyob ntawm tus cwj pwm. Ib pixel hloov ntawm dub mus rau grey ua raws li ib qho kev sib txawv ntawm ib qho kev hloov ntawm dawb mus rau grey. Qhov no tau tshwm sim thaum lub sij hawm xa tawm ntxov thaum cov neeg siv khoom yws txog qhov tsis sib haum xeeb ntawm kev ua haujlwm grey. Erasure yuam tag nrho cov pixels mus rau qhov chaw pib ib txwm, tshem tawm kev vam khom rau thawj zaug.

Ua komua raws li-siab- zaus hloov voltage (± 15V ntawm 50-100Hz) uas oscillates hais nruab nrab ntawm optical extremes. Cov txheej txheem no shakes xoob hais tias tau txais xis nyob. Cov khoom uas tseem nyob ruaj ruaj txhim kho qhov adhesion rau cov phab ntsa capsule thiab cov khoom nyob sib ze. Kev ntsuam xyuas nthuav tawm lub sijhawm ua kom zoo tshaj plaws los ntawm kev txheeb xyuas qhov cuam tshuam ntawm qhov ci ntsa iab - piv rau - lub sijhawm nkhaus- lub sijhawm tiag tiag thaum cov khoom txav mus txog qhov siab tshaj plaws. Mus luv dua thiab sluggish hais tau sab laug. Mus ntev dua thiab lub zog poob qis.

Ces lossiv greyscale tsim. Cov zaub tsim cov qauv dawb siv lub xeev vim tias EPD greyscale qhov tseeb nyob ntawm qhov tseem ceeb ntawm kev pib los ntawm qhov paub qhov kho qhov muag. Tshwj xeeb tshaj yog, ntxig ib qho luv luv xoom-voltage ncua sij hawm tom qab theem no txhim kho qhov sib xws ntawm greyscale tom ntej. Cov khoom xav tau ib ntus kom ruaj khov ua ntej yuav raug nug kom ntaus cov haujlwm nruab nrab ntawm qhov tseeb.

Thaum kawg,daim duab sau. Pixel- tshwj xeeb voltages thiab ncua sij hawm tsav cov khoom mus rau lub hom phiaj txoj haujlwm. A 16-theem greyscale yuav tsum muaj kev tswj xyuas meej ntawm particle ntsug tis nyob rau hauv txhua lub microcapsule-particles nyob rau saum npoo ua dawb, nyob rau hauv qab tsim dub, thiab nruab nrab txoj hauj lwm ua greys.

Pushing mus rau 300ms

Lub tshuab ESL tuaj yeem mus sai npaum li cas? Ntsig waveform optimization tau pom180ms txonyob rau hauv kev ua kom lub sij hawm thiab120ms txohauv kev siv greyscale theem. Cov txiaj ntsig no tau los ntawm ntau cov txheej txheem ua kom zoo dua ntau lub voj voog xa mus.

Inflection point tsom xamtso cai saib xyuas ntawm - lub sij hawm kho qhov muag es tsis siv lub sij hawm ua kom ruaj khov.Polarity switching txoQhov teeb meem vim qhov thim rov qab voltage polarity ua rau cov spikes tam sim no thiab pov tseg lub zog - kev ua haujlwm sib txuas kom txo qis cov kev hloov pauv no ntxiv. ThiabLub tswv yim ntxig ntawm 0V ntuexploits particle momentum, cia txuas ntxiv tsiv teb tsaws yam tsis muaj hluav taws xob siv.

Qhov tsawg kawg nkaus theoretical rau tam sim no - tiam EPD cov ntaub ntawv zoo li yog kwv yees li200ms ibkom tau txais cov duab zoo. Qee lub vaj huam sib luag tau raug thawb mus rau 180ms hauv kev tswj xyuas, tab sis kev ua kom tsis zoo ua rau pom. Kev rhuav tshem qhov teeb meem no yuav xav tau cov ntaub ntawv tshiab, tsis yog waveform cleverness.

Hloov tshiab hom: Qhov ceev -Quality-Ghosting Trilemma

Txhua qhov kev hloov tshiab ESL suav nrog peb txoj hauv kev sib pauv tsis tau -. Tsis muaj engineering yuav khiav tau nws; ib tug tsuas tuaj yeem xaiv qhov kev cuam tshuam los txais. Kev xa mus thoob plaws cov khw muag khoom noj, khoom siv hluav taws xob, thiab chaw muag tshuaj hauv khw muag tshuaj tau tsim cov lus txiav txim siab txog thaum twg yuav siv txhua hom.

Ntiaj teb no Refresh (GC16 hom)

Qhov no yog tag nrho rov pib dua -750-2000msntawm dub-dawb-dub flashing uas ua rau txhua qhov hais los ntawm kev ua tiav kev tsiv teb tsaws chaw. Nws zoo nkaus li zoo heev, cov neeg siv khoom qee zaum nug yog tias cov ntawv sau ua haujlwm tsis zoo, tab sis nws yog tib hom uas tshem tawm tag nrho cov kev ua haujlwm tsis raug.

Kev hloov tshiab thoob ntiaj teb yog qhov tsim nyog tom qab txuas ntxiv ib nrab ncua sijhawm ntxiv, thaum pom cov duab siab -fidelity, lossis thaum ghosting tau dhau los ua qhov tsis pom kev. Ib lub khw muag khoom noj tau pib tawm tsam qhov "dab tuag flashing" thiab sim khiav cov hloov tshiab ib nrab. Peb lub lis piam tom qab, lawv cov ntawv tshaj tawm yuav luag tsis tau nyeem. Lawv tam sim no khiav thoob ntiaj teb refresh txhua hmo thaum lub sijhawm kaw.

Ib nrab Refresh

Ib nrab refresh hloov tshiab tsuas yog cov pixels sib txawv ntawm cov thav ntawv, ua tiav hauv250-500ms. Lub sij hawm txuag tau ntau heev - ntsuas qhia70% txo hwj chimntawm tus nqi hloov tshiab -tab sis muaj kev sib pauv hloov.

Unchanged pixels txais tsis muaj tsav tsheb voltage. Lawv cov khoom maj mam txav mus rau hauv kev txhim kho ruaj khov. Stable suab zoo kom txog thaum ib tug paub ruaj khov kuj txhais tau tias immobile. Tom qab 5-10 qhov kev hloov pauv ib nrab, cov khoom cuav tuaj yeem pom. Qhov chaw pib no txawv ntawm cov chaw tsim khoom; ib co panels zam 15 cycles, lwm tus qhia teeb meem tom qab 6. Qhov tsuas txhim khu kev qha mus kom ze yog kev qhuab ntuas lub sij hawm thoob ntiaj teb refresh interspersion.

Fast Refresh (DU hom)

Direct Update homtxi greyscale muaj peev xwm nkaus. Txhua pixel yog binary -dub lossis dawb, tsis muaj dab tsi nyob nruab nrab. Qhov no enables120-250mshloov tshiab nrog ib qho flash, tab sis cov ntawv ntug zoo li aliased thiab cov duab tsis muaj lus nug.

Rau tus nqi-tsuas yog daim ntawv thov ESL uas qhia cov cim, DU hom feem ntau sawv cev rau qhov chaw qab zib. Ib sab -los ntawm- kev sim sab hauv ib lub khw muag khoom siv hluav taws xob tau qhia tias cov neeg siv khoom tsis tuaj yeem paub qhov txawv ntawm DU- tau muab nqi los ntawm GC16-rendered tus nqi ntawm qhov pom qhov deb. Kev txuag hluav taws xob tseem ceeb heev.

A2 Animation hom

Ntawm80-120ms, A2 hom ze rau video-muaj peev xwm refresh tus nqi. Nws tau raug siv rau cov khoom lag luam demos thiab kev sib tham sib kiosk daim ntawv thov.

Tab sis cov kev sib pauv hloov loj heev. Ghosting accumulates sai heev. Qhov sib piv txo qis. Cov ntsiab lus zoo ploj tom qab ob peb lub voj voog. Ib tus neeg siv khoom xav tau cov ntsiab lus tshaj tawm cov yeeb yaj kiab ntawm cov ntawv txee- thev naus laus zis nrog A2, tab sis cov duab tsis zoo tom qab 30 vib nas this ua rau nws ua tsis tau. Hom no muaj rau kev nkag siab cwj mem thiab ua qauv qhia luv luv, tsis yog kev xa tawm ESL.

Xaiv txoj cai hom

Yuav xaiv li cas? Ua siab ncaj, hom ntsiab lus feem ntau txiav txim siab rau koj. Cov duab thaij duab xav tau GC16; Tus lej lej tuaj yeem siv DU. Hloov tshiab zaus hloov qhov sib npaug- tsis tu ncua hloov tshiab nyiam qhov zoo, nquag hloov kho kom nrawm. Thiab tsis hais txog hom thawj, lub ntiaj teb kev hloov tshiab yuav tsum tshwm sim ntawm lub sijhawm teev tseg. Tsis muaj kev khiav tawm ntawm qhov teeb meem ntawm ghosting commulation.

Zaub Performance Parameters

Qhov sib piv piv

EPD qhov sib piv piv feem ntau yog los ntawm8: 1-15: 1, nrog hwm panels ncav cuag20:1. Muab piv rau LCD specifications (1000:1+) yog to taub yuam kev.

EPD qhov sib piv yog ntsuas nyob rau hauv ib puag ncig illumination -cov xwm txheej tiag tiag uas cov neeg siv khoom nyeem cov ntawv txee. LCD qhov sib piv poob qis hauv lub teeb pom kev siab; EPD qhov sib txawv zoo dua. Kev ntsuas kev nyeem ESL hauv khw muag khoom ib puag ncig nrog 800+ lux nyiaj siv ua haujlwm teeb pom kev zoo qhia nyob ze LCD cov ntxaij vab tshaus ntxuav tawm tag nrho.

Barcode scanner xav tau qhov chaw nyob ib puag ncig6:1 sibkom nyeem tau kev ntseeg siab-peb tau sim qhov no hla ntau tus qauv scanner. Txhua qhov kev lag luam ESL peb tau ntsuas tshem tawm qhov bar yooj yim, uas txhais tau tias laser scanners tuaj yeem nyeem barcodes ncaj qha tawm ntawm cov khoom siv hluav taws xob yam tsis muaj teeb meem.

Kev daws teeb meem thiab Pixel ceev

ESL pixel ceev (100-150 DPI) qhia txog kev txiav txim siab engineering xaiv, tsis yog kev txwv thev naus laus zis. Kev daws teeb meem siab dua yuav tsum muaj pixels ntau dua, txhua tus xav tau tus neeg tsav tsheb - ua kom lub sijhawm ua kom rov zoo dua, kev siv hluav taws xob, thiab cov nqi tiv thaiv.

Qee cov neeg siv khoom tau thov 200+ DPI cov duab. Thaum nug txog kev saib deb, cov lus teb yog ib txwm tshaj 50cm. Ntawm qhov deb, 100 DPI muab cov ntawv nyeem txaus. Tshaj -txhais kev daws teeb meem pov tseg cov peev txheej yam tsis muaj txiaj ntsig pom.

Xim muaj peev xwm

Txheem dub-thiab-dawb ESLtseem tshuav tus neeg ua haujlwm: ceev tshaj plaws refresh (300ms), lub zog qis tshaj, kev ntseeg siab tshaj plaws. Nws tuav 90% ntawm cov nqi tso saib daim ntawv thov tau zoo.

Plaub -xim tshuabsiv E Ink Spectra 3100 thev naus laus zis ua kom muaj xim dub / dawb / liab / daj. Pab tau rau hom hom - cov xim tshwj xeeb accent, tab sis lub sijhawm ua kom rov qab txuas ntxiv mus ntxiv.

Tag nrho - xim vaj huam sib luagsiv ACEP Gallery thev naus laus zis tuaj yeem tsim cov duab thaij duab. Lub cyan-magenta- daj-dawb particle system yog qhov zoo nkauj tiag tiag- cov duab khoom tso tawm ntawm cov vaj huam sib luag no feem ntau xav tias yuav luam tawm. Tab sis1500ms + lub sijhawm hloov tshiabthiab cov nqi siab dua txwv tsis pub siv rau cov xwm txheej siv tau zoo uas qhov pom kev cuam tshuam pom tseeb qhov kev siv nyiaj.

Thaum nws los txog rau xim, cov lus nug yog ib txwm hais tias cov ntaub ntawv ntxiv muaj txiaj ntsig zoo rau kev ntaus kom rov ua dua lub sijhawm, lub zog, thiab chav tsev nqi. Cuaj zaug ntawm kaum, monochrome ua txoj haujlwm.

Ghosting: Lub Persistent Artifact

Ghosting tsis yog ib qho teeb meem uas yuav raug tshem tawm. Nws yog ib qho tseem ceeb ntawm kev siv tshuab electrophoretic uas xav tau kev tswj hwm.Txhua tus neeg uas muaj kev cia siab rau dab -kev ua haujlwm pub dawb EPD yog qhov qhia tsis tseeb txog kev siv thev naus laus zis lossis muag cov vaj huam sib luag uas rov ua kom qeeb txaus los nkaum qhov teeb meem.

Dab Tsi Los Ntawm

Peb mechanisms pab.Tsis tiav particle migration- cov khoom tsis tuaj yeem ncav cuag qhov xav tau vim yog lub sijhawm tsav tsheb tsis txaus lossis qhov hluav taws xob.Residual nqi faib- tsis sib xws nqi tsub zuj zuj ntawm cov phab ntsa capsule cuam tshuam rau cov lus txib tom ntej. Thiabparticle adhesion hysteresis- cov khoom uas tseem nyob ruaj khov txhim kho qhov adhesion nce ntxiv.

Lub sij hawm tseem ceeb tau siv los ua tus cwj pwm dab qhuas thoob plaws ntau lub vaj huam sib luag manufacturers. Cov kev hloov pauv tseem ceeb; ib co vaj huam sib luag dab pom tom qab 5 ib nrab hloov tshiab thaum lwm tus zam 12-15.

Environmental Factors ua rau nws phem

Kubtseem ceeb heev. Cov kuab tshuaj viscosity nce ntawm qhov kub thiab txias, impeding particle motion thiab exacerbating ghosting. Hauv qab 10 degree, lub sijhawm hloov tshiab xav tau txuas ntxiv lossis pom cov khoom cuav yuav tsum raug lees txais. Hauv qab 0 degree, cov qauv vaj huam sib luag dhau los ua teeb meem- cov lus tsis txaus ntseeg tau pom nyob rau hauv cov tub yees siv cov vaj huam sib luag tsis ntsuas rau kev ua haujlwm txias.

Roj teeb voltagecuam ​​tshuam txog dab thiab. Depleted roj teeb muab txo tsav tsheb voltage, ua rau tsis tiav particle migration. Ib lub tsev muag tshuaj tus neeg siv khoom tau ntsib teeb meem tsis paub dab tsi uas tau dhau los ua tsis tau cov roj teeb hauv ib pawg ntawm cov ntawv. Lub tshuab ESL yuav tsum siv cov- roj teeb qis nrog kev ceeb toom kev saib xyuas ua ntej.

Rov ua dua keeb kwmsib tov txhua yam. Ib pixel pheej rov ua kom pom tib cov ntsiab lus txhim kho qhov teeb meem tsis tu ncua ntxiv. Cov ntsiab lus zoo li dab ntxwg nyoog nrawm dua cov ntsiab lus dynamic - counterintuitive kom txog thaum lub adhesion mechanism yog to taub.

Tswj Ghosting hauv Xyaum

Lub sijhawm hloov tshiab thoob ntiaj tebtseem yog thawj mitigation. Cov lus pom zoo ib txwm yog qhov yuav tsum tau ua puv -screen refresh tom qab txhua 5-10 qhov hloov tshiab ib nrab, txawm hais tias lub sijhawm zoo sib txawv los ntawm vaj huam sib luag thiab kev ua haujlwm.

Qhov kub thiab txias- tau them nyiaj rau cov lus nrhiavpab nyob rau hauv ib puag ncig sib txawv. Kev tsav tsheb tsis tau khaws cia hauv LUTs indexed los ntawm qhov kub thiab txias tau txuas ntxiv waveform ntev ntawm qhov kub thiab txias. Kev ntsuas qhia40% txo qis ntawm ghostingsiv zoo- kho qhov kub thiab txias tiv thaiv qhov ntsuas tsis tu ncua.

Keeb kwm kev them nyiaj yugyog sophisticated ntau dua -kho tam sim no tsav waveforms raws li pixel- theem refresh keeb kwm los them rau cov kev tsis ncaj ncees nyob rau hauv ntau. Tsis yog txhua tus tswj hwm ESL txhawb qhov no, tab sis nws ua rau ntsuas qhov sib txawv ntawm cov vaj huam sib luag uas tau ua haujlwm rau ntau lub hlis.

Cov ntsiab lus tsimtseem ceeb heev. Cov keeb kwm dawb nrog cov ntawv dub ua rau pom kev tsis pom zoo dua li cov qauv xim sib txawv. ESL templates yuav tsum tau tsim nrog ghosting yam ntxwv nyob rau hauv lub siab - tsis txhob loj loj dub cheeb tsam uas yuav ghost obviously, nyiam dawb keeb kwm yav dhau.

System-Level Refresh Performance

Tus kheej ESL refresh lub sij hawm tsuas yog ib feem ntawm kev hloov kho latency. Rau kev xa tawm nrog ntau txhiab daim ntawv lo, network architecture dominates tag nrho cov sij hawm hloov tshiab. Qee cov neeg siv khoom xav tau ntau dua 50ms vaj huam sib luag kev txhim kho kev txhim kho thaum tsis quav ntsej txog kev sib txuas hauv lub network uas ntxiv 30 vib nas this rau lawv qhov hloov tshiab.

Kev sib txuas lus raws tu qauv

Proprietary sub-1GHz RF systemsmuab qhov chaw siab tshaj plaws thiab kev nkag mus hauv tsev. Rooj vag- mus rau- daim ntawv lo sib txuas lus ntau tshaj 25 meters, uas tseem ceeb nyob rau hauv loj -footprint khw muag khoom ib puag ncig. Cov kev txwv Bandwidth txwv ib txhij hloov tshiab muaj peev xwm, tab sis rau cov khw muag khoom hloov tshiab cov qauv no tsis tshua muaj qhov tsis zoo.

Bluetooth Tsawg Zog nrog PAwR(Kev Tshaj Tawm Sijhawm Sijhawm nrog Cov Lus Teb, ntxiv rau hauv BLE 5.4) ua kom muaj kev sib txuas lus bidirectional nrog cov khoom siv loj heev. Ib qho chaw nkag mus rau ib qho tuaj yeem ua raws li qhov xav tau32,640 npe-128 pawg zaug 255 daim ntawv lo rau ib pawg. Lub ncua sij hawm tshaj tawm tshaj tawm txiav txim siab qhov system latency; luv luv luv muab cov lus teb sai dua ntawm cov nqi hluav taws xob ntau dua. BLE cov tshuab tau raug xa tawm nrog 1-thib ob ntu rau cov ntawv thov siv sijhawm thiab 10-thib ob ntu rau cov nqi hloov pauv niaj hnub.

Network topologyua raws li lub hnub qub qauv nrog centralized rooj vag. Txhua lub rooj vag npog ib cheeb tsam uas tau hais tseg; overlapping kev pab them nqi kom redundancy. Kev xa khoom loj loj yuav tsum tau ceev faj txog kev npaj RF channel- ib qho kev xa tawm qhov twg ob lub rooj vag ntawm cov channel uas nyob ib sab tsim cov qauv cuam tshuam ua rau 15% pob ntawv poob.

Tiag -Kev thoob ntiaj teb

Hauv kev tsim khoom,3,000 daim ntawv qhia hloov tshiab hauv 5 feeblos ntawm ib lub rooj vag nkaus xwb yeej ua tiav. Xaus - mus rau - kawg latency los ntawm cov neeg rau zaub mov hais kom ua tiav kev ua tiav3-10 vib nas thisnyob ntawm lub network thauj khoom thiab rov ua dua qhov xav tau.

Qhov kev pom tseem ceeb los ntawm kev xa tawm: rau cov xwm txheej hloov tshiab hauv khw muag khoom uas tus nqi hloov pauv mus rau ntau txhiab daim ntawv lo, qhov system - theem kev ua haujlwm hauv network txwv tag nrho cov sij hawm hloov tshiab es tsis yog ib tus neeg daim ntawv lo refresh ceev. Optimizing ib tus neeg refresh tus nqi qis dua 500ms muab qhov rov qab qis dua thaum kev tshaj tawm hauv network xav tau vib nas this.

Kev siv hluav taws xob thiab roj teeb lub neej

EPD kev siv hluav taws xob tshwm sim yuav luag tshwj xeeb thaum lub sijhawm hloov tshiab. Standby tam sim no tsis tsim nyog -microamperes tau ntsuas. Qhov profile no enablesntau- xyoo roj teeblos ntawm npib hlwb, uas tseem yog ib qho ntawm cov lus sib cav muaj zog tshaj plaws rau EPD-raws li ESL.

Dab tsi siv zog

Pixel suavmuaj kev sib raug zoo linear- cov zaub loj dua noj ntau dua.Greyscale qhov tobQhov teeb meem vim tias 16-theem GC16 yuav tsum muaj ntau qhov sib txawv waveforms dua li binary DU hom.Refresh hom xaivmuaj kev cuam tshuam loj; ntiaj teb no refresh noj 2-3 × lub zog ntawm ib nrab refresh. Thiabkubcuam ​​tshuam rau lub zog rub vim qhov chaw txias yuav tsum muaj lub voj voog ntev dua.

Roj teeb lub neej hauv kev xyaum

RauCR2450 lithium npib hlwbnrog kwv yees li 600mAh muaj peev xwm, pom kev ua tau zoo raws li hauv qab no:

Cov kev kwv yees no xav tias chav ua haujlwm kub. Cov ntawv thov cia txias-cov tub yees thiab cov chaw khov nab kuab-ua kom cov roj teeb nrawm nrawm los ntawm ob qho tib si ua kom lub zog tshiab thiab txo cov roj teeb muaj peev xwm ntawm qhov kub thiab txias. Ib daim ntawv teev npe rau 5 xyoos ntawm chav tsev kub yuav kav ntev li 2 xyoos hauv ib lub tub yees.

Txhua qhov refresh siv cov roj teeb uas muaj peev xwm kawg. Ib tus neeg siv khoom xav tau kev txhawb nqa tus nqi ua haujlwm tsis tu ncua- cov roj teeb tau siv sijhawm peb lub lis piam. Cov kws tsim qauv tsim qauv yuav tsum txheeb xyuas qhov hloov tshiab zaus ua ntej xaiv kho vajtse. Ib daim ntawv lo yuav tsum tau hloov tshiab txhua teev xav tau cov roj teeb sib txawv dua li ib qho hloov tshiab txhua hnub.

Temperature Effects ntawm Kev Ua Haujlwm

Kub cuam tshuam ESL kev ua tau zoo los ntawm ntau lub tshuab, ua rau nwsib qho tseem ceeb tshaj plaws ib puag ncig hloov pauv. Qhov no tau tshwm sim ntau zaus hla kev xa tawm hauv huab cua- tswj cov khw muag khoom hauv tsev, cov tub yees txias, cov khoom noj khov, thiab cov ntawv thov sab nraum zoov.

Cov kuab tshuaj viscosity

Qhov no nkag mus rau hauv qee yam chemistry, tab sis luv luv version: EPD hnyav tau thicker thaum txias. Kev sib raug zoo roughly raws li ibArrhenius nkhaus- yam tsis tau nkag mus tob rau hauv cov thermodynamics, qhov tseem ceeb yog tias cov nyhuv yog exponential, tsis yog linear.

Ntawm25 degree(reference condition), particles nthuav tawm nominal mobility. Ntawm0 degree, viscosity roughly doubles, halving particle tshaj tawm. Ntawm-20 degree, viscosity nce kwv yees li 4 ×, yuav tsum tau muab faib ua ntu ntu ntu ntu ntu. Cov lej twv ua qhov no zoo nkauj, txawm tias tiag tiag - cov txiaj ntsig hauv ntiaj teb qee zaum txawv nyob ntawm cov qauv hnyav hnyav uas txhua tus neeg tsim khoom siv.

Kev ntsuam xyuas ntawm ib lub chaw tsim khoom "dav kub" thov los ntawm kev khiav lawv cov vaj huam sib luag ntawm -15℃qhia lub sijhawm tshiab txuas ntxiv ntawm 400ms txog 1100ms. Cov vaj huam sib luag ua haujlwm, tab sis cov lus qhia tshwj xeeb tau hais txog kev ua haujlwm txias txias dua.

Kev khiav hauj lwm Range Classifications

Standard panelsnpog 0℃txog 40℃nrog kev ua haujlwm hauv paus.Extended ntau yam panelskov -10℃mus rau 50℃nrog nruab nrab waveform them.Dav kub vaj huam sib luag-yuav tsum tau rau lub tub yees{1}} ua haujlwm los ntawm -25℃mus rau 60℃siv cov ntaub ntawv tshwj xeeb pem hauv ntej-dav hlau laminate, kev ntsuas kub sib xyaw, thiab kev xaiv hloov waveform. Muaj tseeblub freezer- qib panelsoptimized rau -30℃rau 10℃muaj nyob tab sis hais kom tus nqi hwm.

Kev them nyiaj kub kub

Dav - kub ESL suav nrog -chip kub sensors, ntau lub waveform parameter teev cia hauv nco, thiab tsis siv neeg qhov ntsuas ntsuas raws li ntsuas kub. Nthuav waveform ncua sij hawm rau kev ua haujlwm txias thiab txo qhov hluav taws xob viav vias rau siab - kub ua haujlwm.

Kev nplua rau qhov dav -kev ua haujlwm kub tsis yog- tsis tseem ceeb. Kev ntsuas qhia lub sijhawm rov ua dua ntawm qhov kub siab tshaj khiavmuab ob npaug rau triplechav-kub kev ua haujlwm. Cov neeg siv khoom siv nyob rau hauv qhov chaw txias txias yuav tsum tau ua qhov no rau hauv lawv cov sijhawm hloov tshiab.

Qhov twg ESL Requirements Diverge NEW SECTION

Cov kev qhia tshwj xeeb "cov khw muag khoom ESL" suav nrog tej zaum 60% ntawm qhov tiag -kev xa tawm thoob ntiaj teb. Qhov seem 40% suav nrog cov kev cai tshwj xeeb uas tshwm sim tsuas yog thaum kuaj xyuas cov khw muag khoom tshwj xeeb. Dab tsi ua haujlwm hauv lub khw muag khoom siv hluav taws xob tsis zoo zoo nkauj hauv lub tsev khaws khoom noj khoom haus khov. Cov ntu hauv qab no sau cov kev paub txog kev xa tawm thoob plaws kev lag luam uas cov qauv ESL kev xav tau tawg.

Khoom noj khoom haus tshiab thiab khoom noj khoom haus: Tus nqi dynamic raws li cov khoom lag luam poob qis

Cov khw muag khoom noj tshiab sawv cev rau daim ntawv thov ESL uas xav tau tshaj plaws rau qhov laj thawj yooj yim: cov khoom lag luam tus nqi degrades tsis tu ncua thaum tso tawm. Ib lub steak uas raug nqi $ 15 / lb rau hnub Monday sawv ntxov yuav raug nqi $ 7 / lb txog hnub Wednesday yav tsaus ntuj yog tias nws tsis tau muag. Cov ntawv sau ib txwm tsis tuaj yeem ntes tus nqi nkhaus no. ESL tuaj yeem-tab sis qhov yuav tsum tau ua yog txawv ntawm tus nqi khoom noj khoom haus.

Dynamic markdown tus nqiyuav tsum tau hloov tshiab zaus uas yuav tso cov qauv ESL roj teeb hauv lub hlis. Lub chaw ua zaub mov tshiab uas khiav plaub tus nqi hloov tshiab txhua hnub- cov khoom muag thaum sawv ntxov, nruab nrab nruab hnub, kev teeb tsa yav tsaus ntuj, rov pib dua hmo ntuj- siv roj teeb ntawm 4 × tus nqi ntawm ib lub chaw- lub khw muag khoom ib zaug ib lub lim tiam. Roj teeb chemistry xaiv hloov los ntawm tus qauv CR2450 npib hlwb mus rau siab dua -muaj peev xwm lithium thionyl chloride hlwb lossis cov kev xaiv rov them rov qab nrog cov chaw them nyiaj inductive ua rau cov khoom txee.

Hnub tas sij hawm tso saibntxiv cov ntaub ntawv ceev ceev. Tus nqi yooj yim xav tau kab tias 50 cim. Daim ntawv qhia zaub mov tshiab qhia tus nqi, nqi tsev, hnub ntim, muag-los ntawm hnub, thiab siv-los ntawm hnub xav tau 150+ cov cim ntawm qhov loj me uas nyeem tau. Zaub vaj tse nce raws li-2.9 "thiab 4.2" cov ntawv sau ua tus qauv qhov twg 2.13" txaus rau lub khw muag khoom.

Ib lub khw muag khoom noj nqaij nruab deg tshiab tau xa tawm 4.2 "peb -xim ESL nrog kev sib xyaw NFC rau cov neeg siv khoom siv smartphone. Cov xim liab accents qhia txog cov khoom mus txog muag-los ntawm cov hnub uas tsis siv neeg nce qib markdown pricing: 15% tawm ntawm 48 teev seem, 30% ntawm 24 teev, 50% tom qab kev koom ua ke. tiag tiag -lub sij hawm cov khoom lag luam tswj kev sib txuas- ESL cov txheej txheem tseem ceeb tau dhau los ua ib feem ntawm cov khoom lag luam txo qis dua li tsuas yog cov cuab yeej txo nqi ntawm 23% hauv lub chaw tsav tsheb tau them rau tag nrho kev xa tawm hauv xya lub hlis.

Cov xwm txheej txiasqhia cov teeb meem kub uas tau tham ua ntej. Cov mis nyuj txias khiav ntawm 4℃ua rau pom kev ua kom qeeb qeeb. Cov nqaij tawv ntawm 2℃yog qhov phem dua. Cov khoom noj khov khov ntawm -18℃yuav tsum tau tshwj xeeb qhov dav-kub panels uas raug nqi 40-60% ntau dua li cov qauv. Ib lub khw muag khoom noj khoom haus khov tau pib siv cov qauv vaj huam sib luag hauv lawv cov ice cream; cov ntawv sau tau dhau los ua tsis tau nyeem nyob rau hauv ib lub lim tiam raws li ghosting sau los ntawm tsis txaus refresh ntawm kev khiav hauj lwm kub.

Qhov kub gradient nyob rau hauv cov tub yees txias tsim ntxiv complexity. Cov ntaub thaiv huab cua tsim qhov kub hloov pauv ntawm 8-12℃nruab nrab ntawm ntug pem hauv ntej (sov dua, nyob ze ntawm huab cua sib xyaw) thiab sab nraub qaum (txias, ze ntawm lub evaporator). Cov ntawv sau nyob rau pem hauv ntej ntawm cov khoom siv mis nyuj yuav ua haujlwm ntawm 8℃thaum cov ntawv nyob tom qab ua haujlwm ntawm 2℃- sib txawv txaus kom xav tau lub sijhawm sib txawv. Sophisticated deployments siv ib-daim ntawv teev qhov kub thiab txias sensing nrog ib tug neeg tus kheej refresh tsis.

Perishable inventory trackingkev koom ua ke sawv cev rau cov evolution tom ntej. Thaum ESL tshuab txuas bidirectionally nrog kev tswj cov khoom muag, daim ntawv lo dhau los ua lub sensor nrog rau cov zaub. Tshuag- tawm kev tshawb pom- txheeb xyuas thaum lub chaw txee yog khoob raws li qhov tsis muaj kev muag khoom- ua kom muaj kev ceeb toom tsis siv neeg ntxiv. Ib lub tuam txhab tsim khoom tau txo tawm - ntawm - cov xwm txheej hauv Tshuag los ntawm 34% siv ESL- kev soj ntsuam cov khoom lag luam uas tau tshaj tawm txoj haujlwm uas tsis muaj kev muag khoom rau ntau tshaj 4 teev thaum lub sij hawm siab tshaj.

Warehouse and Industrial Logistics: Scale Changes Txhua yam

Kev lag luam warehouse ESL deployments ua hauj lwm nyob rau hauv cov kev txwv uas cov khw muag khoom architects tsis tshua ntsib. Lub khw muag khoom noj yuav muaj 15,000 SKUs hla 40,000 square feet. Lub chaw faib khoom noj khoom haus muaj 50, 000+ SKUs hla 500,000 square feet nrog qab nthab siab ntawm 40 ko taw. RF propagation qauv uas ua hauj lwm nyob rau hauv ib tug 12-ko taw-qab nthab ib puag ncig khw muag khoom ua tsis tiav nyob rau hauv ib tug warehouse nrog steel racking txuas mus rau 35 ko taw.

Bin paub qhov chawyuav tsum muaj qhov sib txawv zaub ua ntej tshaj cov nqi muag khoom. Cov ntaub ntawv tseem ceeb tsis yog tus nqi - nws yog qhov chaw code, SKU, thiab ntau. Warehouse ESL templates feem ntau tso saib cov cim qhov chaw nyob hauv 48- taw tes lossis loj dua fonts nyeem tau los ntawm 3+ meters, ua rau cov neeg tsav tsheb thauj khoom thiab tuaj tos- pob cov neeg ua haujlwm txhawm rau txheeb xyuas qhov chaw yam tsis tau mus txog rau hauv. Qhov sib piv qhov yuav tsum tau nruj me ntsis vim qhov pom tshwm sim nyob rau hauv cov teeb pom kev lag luam sib txawv -ib co aisles nyob rau hauv qhov ncaj high-bay fixtures ntawm 1500+ lux, lwm tus nyob rau hauv ntxoov ntxoo ntawm 200 lux.

Xaiv -rau- teeb sib xyawtxuas ESL dhau ntawm cov zaub tsis txaus rau hauv cov lus qhia ua haujlwm nquag. LED qhov taw qhia ua ke nrog e- ntawv qhia flash rau cov neeg ua haujlwm ncaj qha mus xaiv qhov chaw. EPD qhia tias yuav xaiv dab tsi; LED qhia tau tias yuav xaiv qhov twg. Cov tshuab sib xyaw ua ke txo cov kev xaiv yuam kev los ntawm ib txwm 0.5-1% nce mus txog 0.1% lossis zoo dua. Cov peev nyiaj siv hluav taws xob hloov pauv-LED qhia thaum lub sijhawm xaiv cov haujlwm siv lub zog ntau dua li e{10}}paper refresh cycle. Roj teeb architectures hloov raws li, feem ntau tsiv mus rau AA lithium hlwb los yog xaim fais fab rau qhov chaw ua haujlwm siab.

High -bay khib ib puag ncigKev ntxhov siab RF kev sib txuas lus tshuab. Hlau racking tsim multipath cuam tshuam. Siab aisles tsim duab ntxoov ntxoo zones. Ib lub rooj vag uas npog 25 meters hauv khw muag khoom tsuas yog 8-10 meters hauv ib puag ncig ruaj khov. Gateway ceev nce 3-4 × piv rau cov khw muag khoom xa mus rau qhov sib npaug. Some warehouse deployments run hybrid networks-sub-1GHz for penetration in dense rack areas, WiFi for open staging areas, with middleware unifying the communication layer.

Forklift-mounted mobile zaubsawv cev rau lub tsev khaws khoom tshiab ESL variant. Tsis yog cov ntawv tuav ruaj ruaj, qhia txog lub forklift masts thiab tau txais cov lus qhia tiag - lub sijhawm xaiv raws li cov neeg ua haujlwm taug qab lub tsev khaws khoom. Cov cuab yeej no hloov kho tsis tu ncua- qhov chaw, qhov ntau, qhov chaw tom ntej- xav tau cov qauv hluav taws xob sib txawv ntawm cov ntawv txee zoo li qub. Hardwired zog los ntawm forklift hluav taws xob system yog tus qauv; Lub roj teeb ua haujlwm tsis tuaj yeem ua haujlwm tau txuas ntxiv - hloov tshiab daim ntawv thov.

Cov khoom lag luam suav automationleverages bidirectional ESL kev sib txuas lus. RFID kev koom ua ke ua kom tsis siv neeg lub voj voog suav- cov khoom cim npe nrog RFID hla ze ESL units nruab nrog RFID nyeem ntawv, thiab cov khoom lag luam suav suav hloov tshiab yam tsis muaj phau ntawv scanning. Lub chaw xa khoom xa tawm tau txo qis cov khoom muag hauv lub cev suav ua haujlwm los ntawm 60% siv ESL- suav nrog RFID lub voj voog suav uas tswj xyuas qhov tseeb ntawm cov khoom muag tas mus li 99%.

Kev ntsuas hnyav ib puag ncigteeb meem nyob rau hauv industrial contexts. IP54 plua plav thiab txaws tsis kam yog lub hauv paus rau warehouse ESL; IP65 dhau los ua qhov tsim nyog nyob rau hauv ib puag ncig nrog cov txheej txheem ntxuav. Tshuaj tiv thaiv tseem ceeb hauv cov chaw tuav cov kuab tshuaj los yog cov tshuaj ntxuav. Ib lub tsev khaws khoom tsheb yuav tsum muaj cov ntawv lo tiv thaiv cov kua nres thiab kis tau cov kua dej sib kis- qauv ESL cov vaj tsev degraded hauv lub hlis. Cov chaw tshwj xeeb nrog cov tshuaj lom neeg-cov vaj tsev tiv thaiv polycarbonate ntxiv 35% rau cov nqi tsev tab sis ua pov thawj tseem ceeb rau kev xa mus ntev.

Kev kho mob thiab chaw muag tshuaj: Qhov tseeb yog Tsis yog -Tshaj tawm

Cov chaw muag tshuaj ESL kev xa tawm ntsib cov kev cai txwv tsis pub muaj los ntawm cov khw muag khoom noj. Tus nqi yuam kev hauv khw muag khoom txhais tau hais tias cov neeg siv khoom tsis txaus siab thiab muaj peev xwm raug kev raug cai raws li cov cai ntawm tus nqi raug. Ib qho kev sau tshuaj yuam kev hauv lub tsev muag tshuaj tuaj yeem txhais tau tias tus neeg mob raug mob lossis tuag. Qhov kev pheej hmoo profile tau hloov pauv qhov tseem ceeb ntawm kev tsim qauv.

Daim ntawv qhia txog tshuajxav tau cov ntaub ntawv ceev tshaj li cov khw muag khoom ESL. Daim ntawv qhia lub tsev muag tshuaj yuav tsum tso tawm: lub npe tshuaj (hom thiab generic), lub zog, daim ntawv ntau npaum, NDC tus lej, tus nqi, nqi tsev, chaw tsim khoom, thiab feem ntau yuav tsum tau khaws cia. Haum rau qhov no ntawm 2.13" daim ntawv lo yuav tsum tau ceev faj typography- lossis ntau dua, xa tawm ntawm 2.9" lossis loj dua. Qee lub tsev muag tshuaj siv 4.2 "cov ntawv lo nrog QR cov lej txuas kom ua tiav cov ntaub ntawv sau tshuaj.

Kev txheeb xyuas qhov tseeb ntawm Barcodeua qhov tseem ceeb. Cov neeg ua hauj lwm hauv tsev muag tshuaj tau tshuaj xyuas cov tshuaj ntau zaus thaum lub sij hawm xa cov haujlwm ua haujlwm - tau txais, txee, rub, pov thawj, xa tawm. Tus ESL-pom barcode yuav tsum luam theej duab kom raug ntawm txhua kauj ruam. Qhov no ua kom nruj qhov sib piv qhov xav tau tshaj li cov khw muag khoom tsawg kawg nkaus. Kev ntsuam xyuas thoob plaws hauv lub tsev muag tshuaj cov cuab yeej siv tshuaj ntsuam xyuas qhia tau tias cov kws tshuaj ntsuam xyuas laus dua -ib txhia tseem siv CCD thev naus laus zis ntau dua li niaj hnub laser lossis imaging scanners -xav tau 10: 1 lossis qhov sib piv zoo dua rau kev nyeem ntawv zoo. Kev xaiv vaj huam sib luag yuav tsum suav rau qhov phem tshaj - cov cuab yeej siv tshuaj ntsuam xyuas hauv lub hauv paus.

Tswj cov khoom sivqhia txog kev ruaj ntseg ntawm lub cev. Teem caij II-V cov tshuaj yuav tsum muaj kev ruaj ntseg cia nrog kev nkag mus nkag. ESL hauv cov txee tswj cov khoom yuav tsum sib koom ua ke nrog cov txee nkag mus rau kev tswj hwm lub tshuab- qhia txog kev txwv tsis pub nkag, kaw cov ntawv uas tau pom thaum txhua lub txee qhib, muaj peev xwm cuam tshuam cov zaub thaum nkag mus tsis tau tso cai. Ib lub tsev muag tshuaj hauv tsev kho mob tau koom ua ke ESL nrog lawv cov kev tswj xyuas cov khoom siv los ua kom pom tseeb - lub sijhawm cov khoom lag luam suav uas hloov kho tau raws li cov tshuaj tau muab xa tawm, tshem tawm cov ntawv suav suav rov qab.

Txias tshuaj ciaua ke cov kev cai ntawm lub khw muag tshuaj nrog rau qhov txias -chain kub sib tw. Cov tshuaj tiv thaiv, insulin, thiab qee yam tshuaj lom neeg yuav tsum tau khaws cia ntawm 2-8℃. Dav - kub ESL panels yog yuav tsum tau. Qee lub tsev muag tshuaj txias cia daim ntawv thov yuav tsum tau ntsuas qhov kub thiab txias nrog ESL- cov khoom siv sib xyaw ua ke uas tso saib qhov ntsuas kub tam sim no nrog rau cov ntaub ntawv tshuaj- muab kev pom tseeb tias cov xwm txheej khaws cia nyob hauv qhov tshwj xeeb yam tsis tas yuav tsum muaj cov neeg ua haujlwm los xyuas cov cuab yeej saib xyuas.

Kev ua haujlwm hauv tsev kho mobntxiv complexity tshaj lub khw muag tshuaj. Cov tsheb thauj tshuaj, cov khoom siv hluav taws xob tsis siv neeg, thiab cov chaw muag tshuaj satellite txhua qhov kev xav tau ESL sib txawv. Lub laub-mounted ESL yuav tsum tau siv ruggedized muaj sia nyob rov thauj; Cov lus qhia yuav tsum nyob twj ywm nyeem tau nyob rau hauv lub teeb pom kev zoo fluorescent ib txwm nyob hauv tsev kho mob txoj kev hauv tsev. Automated dispensing txee kev koom ua ke yuav tsum muaj cov txheej txheem kev sib txuas lus sib xws nrog kev tswj hwm txee software-feem ntau cov cuab yeej muaj peev xwm nrog tsawg thib peb - muaj peev xwm sib koom ua ke.

Cov ntaub ntawv tswj kev ua raws caiyuav tsum tau tshawb xyuas txoj hauv kev uas khw muag khoom ESL tsis tshua muaj. Kev sib koom ua ke kev lees paub rau cov tsev muag tshuaj hauv tsev kho mob yuav tsum muaj cov ntaub ntawv ntawm kev sau tshuaj kom raug. Kev tswj hwm ESL yuav tsum sau txhua daim ntawv hloov tshiab nrog lub sijhawm, kev tso cai rau tus neeg siv, thiab cov ntsiab lus hloov pauv. Ib lub tsev kho mob qhov kev tshawb fawb koom nrog Pawg Neeg Saib Xyuas tshwj xeeb tau tshuaj xyuas lawv txoj kev tshawb xyuas ESL txoj kev muaj peev xwm; tus kws tshawb fawb tau thov cov ntaub ntawv ntawm cov txheej txheem kev txheeb xyuas qhov tseeb ntawm daim ntawv lo rau 12 lub hlis dhau los.

Electronics thiab High - Tus Nqi Muag Khoom: Tiag - Sijhawm Sib Tw Tus Nqi

Cov khw muag khoom siv hluav taws xob siv hluav taws xob ua haujlwm hauv tus nqi- kev lag luam pob tshab uas cov neeg siv khoom niaj hnub tshawb xyuas tus nqi sib tw ntawm cov xov tooj smartphones thaum sawv hauv khw. Tus nqi ESL hloov pauv los ntawm kev txuag nyiaj rau kev ua haujlwm kom muaj peev xwm teb tau zoo - muaj peev xwm sib tw lossis tuav tus nqi sib tw tiag tiag - lub sijhawm es tsis yog tos rau hmo ntuj cov ntaub ntawv hloov tshiab.

Kev sib tw nqi saib xyuas kev koom ua ketxuas ESL systems nrog cov kev pabcuam kev txawj ntse uas cuam tshuam cov vev xaib sib tw tsis tu ncua. Thaum tus neeg sib tw tseem ceeb poob lawv cov nqi ntawm lub xov tooj smartphone, tus nqi kev txawj ntse tshawb pom qhov kev hloov pauv hauv feeb, lub cav tus nqi ntsuas cov kev cai margin, thiab cov nqi tshiab tshaj tawm rau cov ntawv txee hauv 3-10 thib ob network latency window. Ib lub khw muag khoom siv hluav taws xob txo tus nqi- tau tsav kev taug kev los ntawm 18% tom qab siv cov nqi sib tw tiag tiag los ntawm lawv cov ESL infrastructure.

Cov khoom lag luam nplua nuj nthuav qhiahaum rau kev txiav txim siab siab dua yuav khoom hauv khw muag khoom hluav taws xob. Ib tus neeg yuav khoom $ 1,500 lub laptop xav tau cov lus qhia tshwj xeeb- processor, nco, cia, zaub daws teeb meem, roj teeb lub neej. Cov ntawv loj dua ESL (7.5" thiab siab dua) tso cai rau cov lus qhia tshwj xeeb uas yav dhau los xav tau cov ntawv luam tawm tshwj xeeb. Qee lub khw muag khoom siv hluav taws xob siv cov khoom siv sib xyaw ua ke nrog e- ntawv rau tus nqi thiab cov lus qhia tshwj xeeb nrog rau cov ntxaij vab tshaus LCD me me rau kev tshaj tawm cov ntsiab lus video - sib zog ua txhua lub zog.

Accessory txuas tso saibsiv ESL los tsav kev muag khoom. Ib qho zaub uas qhia "ua haujlwm nrog:" cov ntaub ntawv txuas cov khoom tseem ceeb rau cov khoom siv sib xws- rooj plaub rau xov tooj, cables rau laptops, games rau consoles. Dynamic Symptoms pricing tuaj yeem muab cov nyiaj cheb luv nqi tso tawm ntawm cov khoom siv ESL thaum cov khoom tseem ceeb ESL qhia txog cov khoom lag luam uas xav tau kev txav mus los.

Anti-kev koom ua ke tub sab nyiagua rau muaj feem rau siab - cov khoom muaj nqis. Cov tshuab ESL tuaj yeem koom ua ke nrog cov khoom siv hluav taws xob soj ntsuam (EAS) thiab RFID-raws li kev soj ntsuam cov khoom muag. Thaum EAS tag raug tshem tawm yam tsis muaj kev cuam tshuam zoo, ESL cuam tshuam tuaj yeem tso saib kev ceeb toom lossis hloov qhov tsos. Cov kev ua kom zoo dua qub hloov kho cov khoom lag luam suav hauv tiag- lub sijhawm raws li cov khoom raug tshem tawm ntawm kev ruaj ntseg fixtures, ua rau cov khoom tam sim ntawd - tawm kev paub.

Product lifecycle pricingrau cov khoom siv hluav taws xob ua raws li cov qauv uas xav tau- pib tus nqi hwm tus nqi, kev sib tw nruab nrab ntawm - lub neej tus nqi, tshem tawm qhov kawg - ntawm - tus nqi lub neej. ESL tso cai rau cov neeg siv khoom siv hluav taws xob hauv lub neej txoj cai uas kho cov paj laum raws li cov khoom lag luam hnub nyoog, qib khoom muag, thiab cov khoom lag luam ua tiav. Thaum lub iPhone tshiab tso tawm, cov tiam dhau los ESL tau hloov kho nrog tus nqi tshem tawm raws li cov cai ua ntej - tau hais tseg, tsis muaj kev cuam tshuam los ntawm phau ntawv.

Demo chav tswjHauv cov khw muag khoom siv hluav taws xob siv ESL variants tsim rau cov khoom lag luam teeb pom kev zoo. Cov koog no feem ntau koom nrog kev ruaj ntseg tethers, kev tswj hwm lub zog, thiab kev sib tham sib kiosks. Cov zaub yuav qhia tus nqi thaum tsis ua haujlwm thiab hloov mus rau qhov tseem ceeb thaum cov neeg siv khoom cuam tshuam nrog cov khoom lag luam demo. Qee qhov kev siv tau siv qhov sib thooj sensors txhawm rau txheeb xyuas cov neeg siv khoom pom thiab hloov kho cov ntsiab lus tso tawm kom haum.

Industrial Parts thiab MRO: Ntev -Tail Inventory Challenges

Kev tu, kho, thiab kev ua haujlwm (MRO) cov chaw muag khoom thiab cov chaw tsim khoom lag luam tswj cov khoom lag luam cov ntaub ntawv sib txawv ntawm cov neeg siv khoom. Ib tus neeg muab khoom MRO raug suav nrog 100, 000+ SKUs nrog ntev -tail faib-20% ntawm SKUs tsim 80% ntawm cov nyiaj tau los thaum 80% ntawm SKUs zaum nrog tsawg zog. Cov ntawv sau ib txwm siv tsis tau kev lag luam thaum daim ntawv lo cov nqi kho mob tshaj cov khoom lag luam rau cov khoom qeeb.

Siab -SKU- suav kev lag luamHloov ESL ROI suav. Hauv cov khw muag khoom noj khoom haus, ESL cov nyiaj rov qab los feem ntau los ntawm kev txuag nyiaj ntawm cov nqi hloov pauv. Hauv MRO kev faib tawm, kev them rov qab los ntawm kev txhim kho qhov tseeb ntawm cov khoom muag thiab txo qhov kev ua tsis tiav ntawm qeeb - tsiv Tshuag. Tus neeg xa khoom nrawm txo qis cov ntawv sau npe- tawm los ntawm 31% tom qab siv ESL- kev sib xyaw cov khoom lag luam taug qab uas tau txheeb xyuas qeeb- txav cov khoom lag luam rau kev tshaj tawm tus nqi ua ntej kev lag luam.

Technical specification zaubcov kev xav tau zoo ib yam li lub tsev muag tshuaj ntau dua li khoom noj. Cov khoom lag luam yuav tsum muaj cov khoom siv dav dav, cov khoom siv qib, ntawv pov thawj, thiab cov ntaub ntawv sib raug zoo. Ib tug bearing distributor's ESL qhia: ib feem naj npawb, chaw tsim tshuaj paus, bore txoj kab uas hla, txheej txoj kab uas hla, dav, ceev ntsuas, load ntsuam xyuas, thiab cov specifications (ISO, ABEC, thiab lwm yam). Cov ntaub ntawv yuav tsum ceev ceev thawb mus rau cov duab loj dua thiab ceev faj typographic tsim.

Bin qhov chaw systemsnyob rau hauv cov khoom faib feem ntau siv cov tswv cuab qhov chaw coding schemes tsim nyob rau ntau xyoo ntawm kev ua haujlwm. Kev koom ua ke ESL yuav tsum ua kom haum raws li qhov chaw nyob hauv keeb kwm thaum muaj peev xwm ua kom muaj kev tsiv teb tsaws chaw mus rau qhov chaw coding txheej txheem. Kev tswj hwm kev hloov pauv tseem ceeb npaum li kev siv cov txuj ci- cov neeg ua haujlwm hauv tsev khaws khoom tau siv rau cov lej chaw lawv tau siv rau 20 xyoo tiv thaiv kev hloov pauv yam tsis hais lub peev xwm ua haujlwm li cas.

Cov neeg siv khoom-faus cov khoom sivntawm cov khoom suav tau txais txiaj ntsig los ntawm ESL kev koom ua ke. Thaum tus neeg siv khoom thov ib feem, cov neeg ua haujlwm txee nug cov kab ke, thiab ESL qhia ntawm qhov chaw cia teeb lossis tso saib cov lus qhia khaws. Qee qhov chaw xa khoom tau siv "nqa mus rau counter" workflows qhov twg ESL cov lus qhia ntawm qhov chaw hauv qhov chaw qhia cov lus qhia thiab cov neeg ua haujlwm cov npe, ua kom muaj ntau yam kev pabcuam rau cov neeg siv khoom sib cuam tshuam nrog kev txheeb xyuas kom pom tseeb.

Kitting thiab assembling ua haujlwmsiv ESL los qhia kev xaiv cov khoom siv rau ntau -ib feem sib dhos. Cov khoom siv hydraulic yuav muaj xws li lub twj tso kua mis, lub cev muaj zog, li qub, fittings, hose, thiab cov kua dej-txhua qhov chaw khaws cia rau hauv qhov chaw sib txawv. ESL cov lus qhia ntawm txhua qhov chaw qhia cov khoom siv, qhov xav tau, thiab ua tiav. Kev koom ua ke nrog cov ntaub ntawv sib dhos qhia cov lus qhia ua haujlwm nrog rau kev txheeb xyuas cov khoom.

Tus neeg muag khoom-Managed Inventory (VMI)cov kev pab cuam leverage ESL rau kev sib qhia pom. Thaum cov neeg muag khoom tswj hwm cov khoom lag luam ntawm cov neeg siv khoom, ESL tuaj yeem nthuav qhia cov xwm txheej ntxiv, hnub xa khoom tuaj, thiab cov khoom muaj nyob. Qhov pob tshab no txhawb nqa tsuas yog - hauv - lub sijhawm tsim cov kev pabcuam uas xav tau qhov chaw muaj kev ntseeg siab yam tsis muaj kev nqis peev ntau dhau.

ESL vs. Alternative Display Technologies TSHIAB SIAB

Kev xaiv ESL tsis yog tsuas yog xaiv qhov zoo tshaj plaws e-paper vaj huam sib luag. Nws yog hais txog kev xaiv cov cuab yeej tsim nyog rau daim ntawv thov.E- ntawvsib tw nrogLCD zaub txee, ntu qhia, thiab cov ntawv sau ib txwm siv -txhua qhov kev ua tau zoo sib txawv, cov qauv nqi, thiab daim ntawv thov qab zib me ntsis. Cov kev ntsuam xyuas hauv qab no muab lub hauv paus rau kev txiav txim siab xaiv technology.

E-Daim ntawv (EPD) Electronic Shelf Labels

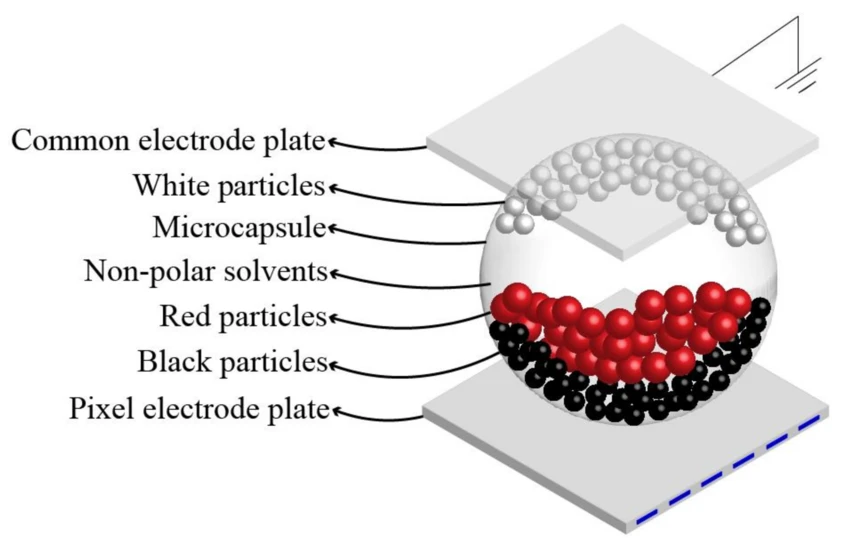

Kev khiav hauj lwm txoj cai: Electrophoretic particle migration hauv microcapsule suspension nyob rau hauv daim ntawv thov hluav taws xob. Bistable- tuav cov duab tsis muaj zog.

Lub zog: Zero zog noj thaum zoo li qub (tshwj xeeb bistability), zoo heev ambient lub teeb nyeem tau, dav saib lub kaum ntse ntse (170℃+), ntawv-zoo li cov tsos uas sib xyaw ua ke nrog ib puag ncig cov khw muag khoom, ntau- lub roj teeb lub neej ntawm npib hlwb, hnub ci nyeem tau rau sab nraum zoov thiab siab - brightness daim ntaub ntawv.

Kev txwv: qeeb refresh (300-2000ms rau kev hloov tshiab tag nrho), muaj peev xwm xim (1-4 xim rau cov khoom lag luam, cov xim puv tawm), cov khoom cuav uas xav tau txhua lub sijhawm ua kom rov zoo dua, txias txias kev ua haujlwm degradation, tus nqi pib nqi ntau dua li LCD lwm qhov.

Tus nqi qauv: Zaub modules $3-15 nyob ntawm qhov loj thiab xim muaj peev xwm; ua kom tiav ESL units nrog cov tswj, kev sib txuas lus, vaj tse, thiab roj teeb $8-40; infrastructure (gateways, management software) ntxiv $0.50-2 ib daim ntawv lo rau kev xa tawm.

Kev siv zoo tshaj plaws: Nqe-centric khw muag khoom daim ntawv lo nrog tsis tu ncua hloov tshiab (khoom noj khoom haus, khoom siv dav dav, tsev muag tshuaj), sab nraum zoov lossis siab -ambient- teeb pom kev zoo, kev xa tawm tseem ceeb ntawm lub roj teeb ntev dua li kev hloov kho ceev, daim ntawv thov xav tau ntawv- zoo li kev zoo nkauj.

LCD Zaub Zaub

Kev khiav hauj lwm txoj cai: Liquid Crystal Light Modulation nrog LED backlight. Yuav tsum muaj lub zog txuas ntxiv rau lub teeb pom kev zoo; tso saib lub xeev tsis tswj tsis muaj hwj chim.

Lub zog: Fast refresh (60Hz standard, haum rau video), tag nrho cov xim muaj peev xwm nrog ntau lab ntawm cov xim, siab brightness rau kev saib xyuas -kev txhawb nqa, muaj peev xwm los tso saib video thiab animation, paub tab technology nrog nws kim heev ecosystem.

Kev txwv: Kev siv hluav taws xob tsis tu ncua (3-15W rau cov khoom txee-ntug), kev ua haujlwm tsis zoo ntawm lub teeb pom kev zoo (ntxuav tawm hauv qhov chaw muag khoom ci), saib lub kaum sab xis (± 60℃raug ua ntej xim hloov), backlight tsis ua hauj lwm yog hom tsis ua hauj lwm, yuav tsum tau wired power infrastructure.

Tus nqi qauv: Zaub modules $15-50 nyob ntawm qhov loj me; ua tiav networked txee qhia $50-200; installation nqi feem ntau tshaj cov nqi kho vajtse vim lub zog infrastructure yuav tsum tau.

Kev siv zoo tshaj plaws: Promotional end caps where animation attracts attention, video-muaj peev xwm tshaj tawm, lub sij hawm- txwv kev tshaj tawm kev tshaj tawm, ib puag ncig uas tswj teeb pom kev zoo (khoom noj khoom haus sab hauv, khw hauv tshav dav hlau), cov ntawv thov uas muaj cov khoom siv hluav taws xob twb muaj lawm.

Segment LCD Zaub

Kev khiav hauj lwm txoj cai: Tej yam yooj yim ua kua siv lead ua ntu (xws li lub laij lej qhia) uas tau tsav los ntawm cov tsav tsheb tshwj xeeb. Lub hwj chim tsawg heev tab sis txwv rau ua ntej - cov cim cim.

Lub zog: Tus nqi qis heev ($ 0.50-2 ib qho zaub), kev siv hluav taws xob tsawg heev (microamps rau cov khoom zoo li qub), qhov kub thiab txias, kev tsav tsheb yooj yim, muaj pov thawj kev ntseeg tau ntau xyoo ntawm kev xa tawm.

Kev txwv: Cov qauv ntu ntu txwv cov ntsiab lus pom tau (feem ntau cov lej thiab cov cim txwv nkaus xwb), tsis muaj peev xwm kos duab, xaiv qhov loj me, qhov zoo nkauj hnub tim, txhua tus cim yuav tsum muaj cov qauv ntu ntu.

Tus nqi qauv: Zaub modules qis dua $1 hauv ntim; ua kom tiav cov nqi tso saib chav nyob $2-5; tsawg tus nqi infrastructure.

Kev siv zoo tshaj plaws: Ntshiab tus nqi tso saib qhov twg cov ntsiab lus tsis tas yuav hloov pauv, tus nqi siab heev - kev xa tawm yooj yim, siab - cov ntawv thov ntim tseem ceeb ua ntej kev lag luam hauv tsev tshaj qhov muaj peev xwm, kev xa tawm ib puag ncig hnyav uas cov khoom siv hluav taws xob zoo tsim muaj kev pheej hmoo ntawm kev ntseeg siab.

Paper Labels (Manual)

Kev khiav hauj lwm txoj cai: Cov ntawv luam tawm cov ntawv tso rau hauv cov yas tuav los yog adhered ncaj qha rau cov npoo npoo. Hloov kho manually los ntawm cov neeg ua haujlwm hauv khw.

Lub zog: Tus nqi thev naus laus zis qis tshaj plaws (zoo xoom rau cov khoom siv kho vajtse), tsis muaj kev txwv graphical yooj, tsis muaj hluav taws xob ua tsis tau, tsis muaj kev tsim kho vaj tse, kev paub ua haujlwm rau cov neeg ua haujlwm muag khoom.

Kev txwv: Kev ua haujlwm- txheej txheem hloov tshiab hnyav (15-30 vib nas this ib daim ntawv lo rau cov neeg ua haujlwm paub txog), kev ua yuam kev (kwv yees 5-15% tus nqi raug teeb meem hauv cov khw muag khoom ib txwm), cov khoom siv thiab luam ntawv cov nqi siv tau, txwv tsis pub muaj peev xwm ua tiav cov nqi hloov pauv sai, ib puag ncig cov khoom pov tseg los ntawm daim ntawv lo pov tseg.

Tus nqi qauv: Tus tuav daim ntawv lo $0.10-0.50 txhua; daim ntawv lo $0.01-0.05 txhua; cov nqi ua haujlwm tsis tu ncua thiab cov khoom siv feem ntau tshaj li ESL tus nqi ntawm lub neej nyob rau hauv 2-4 xyoo rau cov ntawv thov hloov tshiab-ntau zaus.

Kev siv zoo tshaj plaws: Cov khw muag khoom me me heev uas cov nqi zog ua haujlwm tsis txaus (tus tswv- cov khw muag khoom), qhov hloov tshiab tsis tshua muaj zaus ib puag ncig, ib ntus lossis pop- cov khw muag khoom uas cov peev txheej hauv vaj tse tsis raug cai, cov ntawv thov xav tau cov qauv tsis zoo ntawm lub cev tsis muaj nyob hauv cov kev xaiv hluav taws xob.

Technology xaiv Framework

Cov txheej txheem kev txiav txim siab rau kev xaiv siv thev naus laus zis suav nrog ntau yam uas yuav tsum tau ntsuas raws li qhov tseem ceeb ntawm daim ntawv thov:

Hloov tshiab zauscuam ​​tshuam rau kev xaiv technology. Cov ntawv thov uas tsawg dua qhov hloov tshiab txhua lub limtiam tsis tshua pom zoo rau ESL peev; daim ntawv lo tseem pheej yig. Cov ntawv thov nrog cov hloov tshiab txhua hnub mus txog ESL breakeven hauv 2-3 xyoos. Cov ntawv thov uas muaj ntau yam hloov tshiab txhua hnub txhawb nqa ESL kev lag luam.

Cov ntsiab lus nyuajcuam ​​tshuam rau kev xaiv technology. Ntshiab tus nqi zaub tuaj yeem siv ntu LCD ntawm tus nqi qis tshaj. Cov nqi ntxiv rau cov ntawv txwv (cov npe khoom, nqi tsev) haum rau e- ntawv ESL. Cov duab nraaj nplua nuj lossis yees duab xav tau LCD txawm tias muaj nqi zog dua.

Ib puag ncig tej yam kev mobtxwv kev xaiv. High ambient teeb (sab nraum zoov, qhov rais, ci khw muag khoom teeb pom kev zoo) nyiam e-daim ntawv qhia. Tswj teeb pom kev zoo ib puag ncig tuaj yeem siv LCD zoo. Qhov kub thiab txias (lub tub yees, sab nraum zoov) yuav tsum muaj kev ntsuas vaj huam sib luag tsim nyog txawm hais tias siv tshuab xaiv.

Muaj zog infrastructure muajfeem ntau txiav txim siab ua tau. Cov chaw uas tsis muaj lub hwj chim lossis qhov chaw khiav hluav taws xob yuav raug txwv tsis pub kim tseem ceeb rau lub roj teeb -powered ESL. Cov chaw uas muaj lub zog hluav taws xob twb nyob rau hauv qhov chaw (saum toj no - txee teeb pom kev zoo circuits) tuaj yeem xav txog kev xaiv LCD.

Tag nrho cov nqi ntawm kev txheeb xyuas tswv cuabyuav tsum xav txog:

Cov nuj nqis no sib txawv raws li cov nqi ua haujlwm hauv zos, hloov tshiab zaus, thiab kev xa tawm. Kev suav feem ntau nyiam ESL rau kev hloov pauv zaus saum toj no 1-2 zaug hauv ib lub lim tiam hauv kev lag luam kev lag luam kev lag luam.

Hybrid Deployment Strategies

Ob peb lub khw muag khoom siv ib qho kev siv thev naus laus zis thoob plaws txhua daim ntawv thov. Cov tswv yim hybrid phim cov thev naus laus zis rau cov ntawv thov uas xav tau hauv ib puag ncig muag khoom:

E- ntawv rau nqe, LCD rau kev nce qibsiv ESL rau cov nqi niaj hnub thoob plaws hauv lub khw thaum siv cov ntxaij vab tshaus LCD ntawm lub kaus mom kawg, cov chaw kuaj xyuas, thiab kev tshaj tawm kub qhov chaw uas muaj peev xwm video thiab ci ntsa iab nyiam cov neeg siv khoom. Txoj hauv kev no ntes ESL cov txiaj ntsig kev ua tau zoo rau feem ntau ntawm cov ntawv sau thaum khaws cia kev txhawb nqa yooj yim uas nws tseem ceeb tshaj plaws.

Segment LCD rau nqe, e- ntawv rau cov ntaub ntawvxa cov ntu pheej yig rau cov nqi ntawm tus lej ntshiab thaum siv cov e- cov ntawv loj dua rau cov ncauj lus kom ntxaws txog cov khoom lag luam uas cov ntsiab lus tsis yooj yim ua rau tus nqi them nqi. Txoj hauv kev no txo ​​qis tus nqi rau siab - ntim cov ntawv sau yooj yim thaum ua kom cov ntaub ntawv nplua nuj tso saib qhov twg cov neeg siv khoom muaj txiaj ntsig pom zoo rau kev nqis peev.

Kub -zone technology matchingxa cov qauv ESL hauv cov chaw muag khoom nyob ib puag ncig thaum siv dav - qhov kub thiab txias sib txawv hauv thaj chaw tub yees thiab muaj peev xwm xaiv rau cov ntu nyuaj tshaj tawm hauv cov tub yees qhov chaw txawm tias dav - qhov kub thiab txias e- ntawv ua haujlwm dhau los. Kev xaiv thev naus laus zis ua raws li qhov yuav tsum tau ua ntawm ib puag ncig tsis yog siv cov kev qhia tshwj xeeb.

Scale - tsim nyog infrastructuretej zaum yuav siv ESL nrog rau tag nrho network infrastructure nyob rau hauv loj - hom khw khw muag khoom thaum lub sij hawm deploying standalone segment qhia los yog txawm daim ntawv lo nyob rau hauv me me cov khw muag khoom uas infrastructure peev tsis scale economically. Kev xaiv thev naus laus zis suav nrog kev xa tawm nplai nrog rau cov kev xav tau.

Kev Siv Hluav Taws Xob

Siab -Speed ​​EPD Research

Laboratory ua qauv qhia tau ua tiav75Hz refresh tus nqintawm e-paper panels- mus txog thaj chaw LCD. Cov demos ntawm cov rooj sib tham hauv kev lag luam yog qhov zoo siab tiag tiag, tab sis kev xa tawm ntau lawm tseem nyob deb.

Cov thev naus laus zis tseem ceeb suav nrogkua siv lead ua additivesuas dope electrophoretic kua nrog cov tebchaw inducing backflow teebmeem. Cov ntaub ntawv tshawb fawb qhia txog 2.8 × kev txhim kho ceev thaum ib txhij txo kev tsav tsheb los ntawm 50%.Nyias- zaj duab xis pem hauv ntej- dav hlau laminatestxo particle migration nrug.Novel nanoparticle formulationsoptimize tus nqi deg tus yam ntxwv thiab txo hydrodynamic radius. Thiabtshuab kev kawm -kev ua kom zoo tshaj plaws waveform tiamyoog raws li - sij hawm los qhia txog lub xeev thiab ib puag ncig.

Cov thev naus laus zis no tseem nyob hauv kev txhim kho. Kev qhia txog kev tsim khoom ESL cov khoom raws li kev soj ntsuam kuaj tsis pom zoo.

Xim E-Paper Evolution

E Ink Gallery 3thev naus laus zis qhia pom qhov twg xim EPD tab tom mus. Dub / dawb refresh tau poob rau350ms ib, nqis los ntawm 2000ms hauv tiam dhau los. Fast xim hom hits500ms ib. Txheem xim hom khiav750-1000ms. Qhov zoo tshaj plaws xim hom tseem xav tau1500ms ib.

Xim EPD yog hloov los ntawm "tsis tshua muaj txiaj ntsig" mus rau "yooj yim siv tau" rau cov ntawv xaiv xaiv. Cia siab tias yuav txhim kho txuas ntxiv, tab sis monochrome yuav khaws ceev thiab lub zog kom zoo nyob tsis ntev vim qhov sib txawv ntawm qhov sib txawv ntawm lub cev.

Performance Specifications rau System Design

Yam tsawg kawg siv tau Specifications

Rau kev muag khoom txee dav dav, cov lej no sawv cev rau hauv pem teb:

Lub sijhawm tshiabyuav tsum ntaus 2000ms lossis zoo dua rau hom ntiaj teb, 500ms lossis zoo dua rau ib nrab.Qhov sib piv pivyuav tsum tau ntau tshaj 8:1.Kev daws teeb meemyuav tsum ncav cuag yam tsawg 100 DPI.Saib lub kaum sab xisyuav tsum ncua 170℃lossis dav dua.Kev khiav hauj lwm qhov kub thiab txiasyuav tsum npog 0℃rau 40 degree.Roj teeb lub neejyuav tsum tshaj 5 xyoos ntawm 2 hloov tshiab ib hnub twg.

Txhim kho Specifications

Rau kev thov cov ntawv thov- hloov tshiab tsis tu ncua, cia txias, cov ntsiab lus txhawb nqa- cov lus qhia nruj:

Lub sijhawm tshiabyuav tsum ntaus 1000ms rau ntiaj teb no, 300ms rau ib nrab.Qhov sib piv pivyuav tsum tshaj 12:1.Kev daws teeb meemyuav tsum ncav cuag 120 DPI lossis siab dua.Xim muaj peev xwm(3-4 xim) dhau los ua qhov cuam tshuam.Kev khiav hauj lwm qhov kub thiab txiasQhov kub yuav tsum yog -25 ° C mus rau 50 ° C.Roj teeb lub neejyuav tsum tshaj 3 xyoos ntawm 4 hloov tshiab ib hnub twg.

Specification Validation

Cov neeg muag khoom specifications yuav tsum raug txheeb xyuas raws li qhov tseeb. Qhov no tsis yog xaiv tau- qhov tsis sib xws tseem ceeb ntawm cov ntaub ntawv thov thiab kev tsim khoom tau ntsib.

Ntsuam xyuas lub sij hawm refresh ntawm qhov tsawg kawg nkaus thiab siab tshaj plaws ua haujlwm kub, tsis yog chav tsev kub xwb. Paub meej qhov sib piv ntawm cov khoom siv teeb pom kev zoo, tsis yog lub teeb pom kev hauv chav kuaj. Txheeb xyuas cov roj teeb lub neej kev kwv yees nrog qhov xav tau hloov tshiab zaus thiab cov ntsiab lus hom- tus neeg muag khoom kwv yees feem ntau xav tias zoo tshaj plaws - xwm txheej xwm txheej. Txheeb xyuas qhov system-theem hloov tshiab latency nrog lub hom phiaj daim ntawv suav kom paub tseeb tias network architecture scales tsim nyog.

Matching Technology rau Daim Ntawv Thov

Electronic txee daim ntawv lo xaiv thev naus laus zis thaum kawg los ua kom muaj peev xwm ua tau raws li qhov xav tau. Lub physics ntawm electrophoretic qhia tau tsim cov ciam teb ruaj khov -cov nqi tshiab, qhov kub thiab txias, kev coj cwj pwm dab phem- uas tsis muaj qhov kev ua kom zoo dua yuav dhau mus. Kev nkag siab txog cov ciam teb no ua rau muaj qhov tseeb tsim qauv thiab xaiv cov tshuab tsim nyog.

Rau kev xa tawm qhov kev txwv kom haum rau daim ntawv thov - hloov tshiab nruab nrab zaus, kev ua haujlwm kub ib puag ncig, tus nqi- tsom rau cov ntsiab lus-ESL muab cov txiaj ntsig cuam tshuam los ntawm kev tshem tawm kev ua haujlwm, kev txhim kho tus nqi raug, thiab kev ua haujlwm yooj yim. Rau cov ntawv thov thawb tawm tsam ESL cov kev txwv- siab- hloov tshiab zaus, qhov kub thiab txias, cov ntsiab lus nplua nuj tshaj tawm- lwm yam thev naus laus zis lossis cov txheej txheem hybrid tuaj yeem ua pov thawj tsim nyog dua.

Kev siv tshuab txuas ntxiv mus. Refresh tus nqi txhim kho incrementally. Xim muaj peev xwm nthuav. Qhov kub thiab txias tau nthuav dav. Tab sis lub hauv paus physics tseem nyob. Kev xa tawm ESL ua tiav yuav tsum ua haujlwm nyob rau hauv cov kev txwv no, tsis yog ua piv txwv tias lawv tsis muaj.
