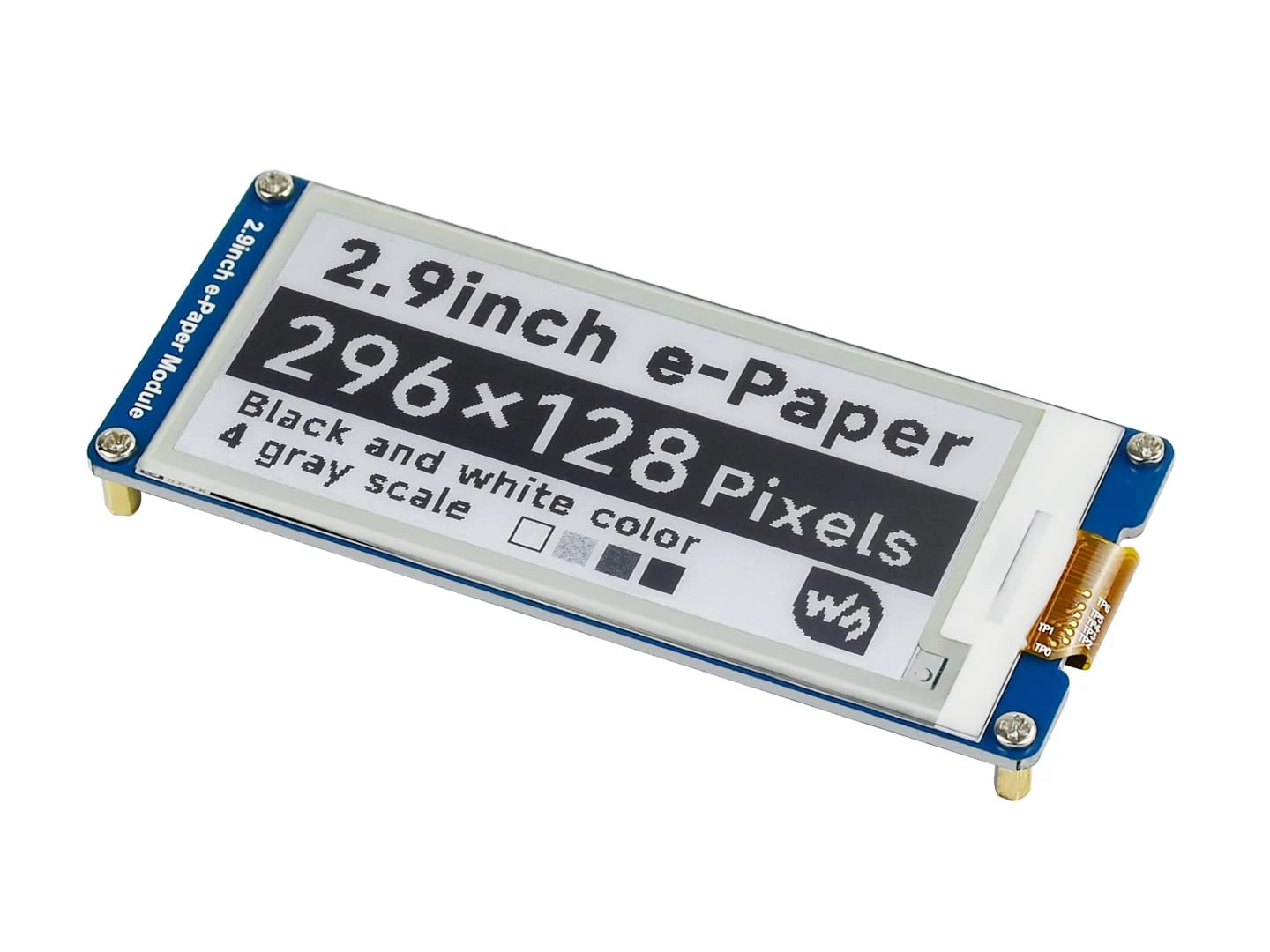

Bare zaub modules raug nqi kwv yees li$5–$300, cov khoom siv txhim kho nrog cov rooj tsav tsheb tsav tsheb raug nqi kwv yees li$10–$450, thiab ua tiav e-paper displays nqi kwv yees li$800–$2,500.
A 2.9-inch e-ink module nqi $15. Ib tug 25-nti e-ink saib nqi $2,000. Qhov no tsis yog typo. Qhov no yog qhov tseeb ntawm kev lag luam tswj los ntawm ib lub tuam txhab, txwv tsis pub muaj patents, thiab tshaib plab ntawm kev sib tw.
Nqe toj roob hauv pes
Cov lej tiag yog staggering hauv lawv qhov ntau.
Ntawm qhov kawg me me -1.5 "mus rau 2.9" panelsrau cov ntawv txee hluav taws xob thiab IoT sensors-koj tab tom saib $5 txog $20 rau cov qauv liab qab, $10 txog $30 nrog cov tsav tsheb. Tus nqi khoom muag. Lub lag luam ESL tau tsav cov ntim siab txaus los ua kom cov khoom muaj nqis tiag tiag.
Cov4.2 "mus rau 5.8" ntau yamnpog cov khoom hnav thiab cov khoom me me. Cov nqi nce mus txog $ 18– $ 45 rau cov qauv liab qab, $ 25– $ 60 nrog cov tsav tsheb- tseem tsim nyog rau feem ntau cov haujlwm.

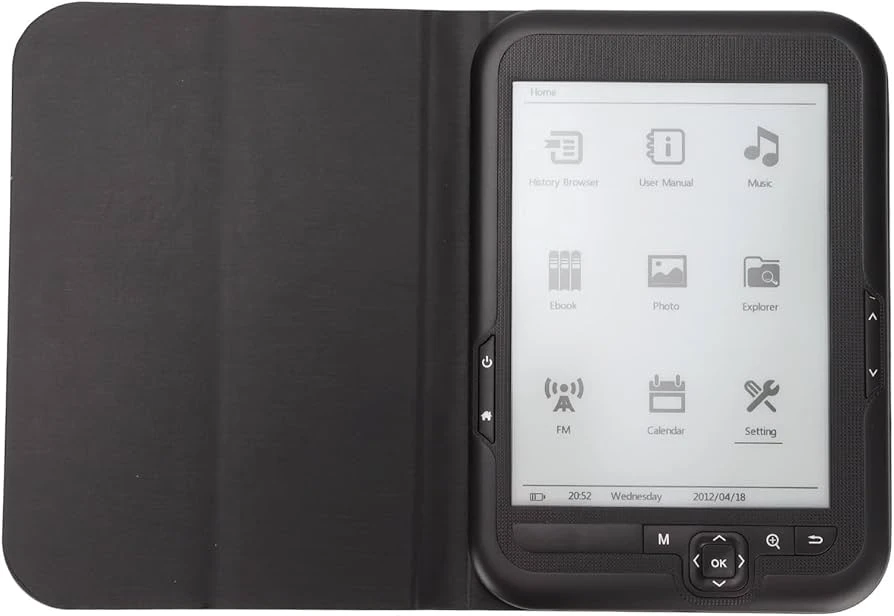

Rau ntiv tesyog qhov twg cov neeg siv khoom feem ntau xub ntsib e-ink. Lub Kindle Paperwhite. Hom ntawv tau kho dua tshiab tshaj kaum tsib xyoos. Qhov no yog tus qauv e- nyeem ntawv, thiab tus nqi qhia txog qhov kev loj hlob: $ 30 txog $ 65 rau lub module, $ 45 txog $ 80 nrog lub rooj tsav tsheb. Tsis pheej yig, tab sis tsis outrageous. Koj tau them kwv yees li $ 5 - $ 10 ib kab pheeb ces kaum ntawm qhov loj me no.
Ces tus nkhaus steepens dramatically.
Cov ntsiav tshuaj loj dua siv7.5 "mus rau 7.8" panels-Kobo Sage, ntau yam Boox qauv. Module nqi dhia mus rau $70–$100, lossis $90–$130 nrog tsav tsheb electronics. Tus nqi -ib -inch pib nce. Ntawm10.3 hli, tus kws tshaj lij e- thaj chaw ceeb toom, koj tab tom saib ntawm $ 100– $ 180 rau lub module ib leeg. Ntxiv ib daim ntawv tsav tsheb thiab koj tau hla $ 130- $ 220. Lub reMarkable 2, Boox Note series-lawv txhua tus siv cov vaj huam sib luag hauv chav kawm no. Tam sim no peb tau dhau $10-ib-nti thiab txuas ntxiv mus.
Cov13.3 nti panelszaum ntawm qhov kawg ntawm qhov feem ntau cov neeg siv khoom yuav ntsib. Boox Max. Fujitsu Quaderno. Cov khoom loj no - hom ntawv siv cov panels raug nqi $140–$280 rau module, $180–$350 nrog tsav tsheb electronics. Txhua nti ntxiv ntawm kab pheeb ces kaum hais kom tus nqi tseem ceeb.
Thiab tom qab ntawd muaj25.3 nti chav kawm-desktop e-ink monitors, white whale of the e-paper world. Raw vaj huam sib luag raug nqi $800–$1,200. Cov saib tiav muag muag rau $1,500–$2,500. Kev lag luam ntawm no NW nyuam qhuav ua rau kev txiav txim siab, tab sis peb yuav tau txais qhov ntawd.
Xim hloov txhua yam.Cov duab xim raug nqi 1.5 × rau 3 × ntau dua li lawv cov monochrome sib npaug thoob plaws txhua chav kawm. A 13.3-inch Kaleido 3 xim module muag rau $449 los ntawm E Ink lub khw muag khoom-thiab qhov ntawd tsuas yog lub vaj huam sib luag xwb. Gallery 3 tag nrho-xim panels nrog 50,000 xim hais kom ntau dua cov nqi, txawm hais tias tus nqi pes tsawg tsis tshua muaj tshwm sim rau pej xeem.
Cov nqi no nyuam qhuav txav mus rau hauv ib xyoo caum. Qhov tseeb ib leeg qhia rau koj ib yam dab tsi tawg.

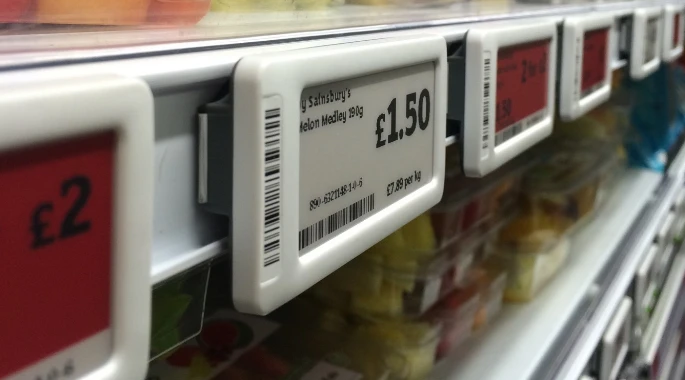

Vim li cas E-Ink Tus Nqi Nws Nqi Li Cas
E Ink Holdings, lub tuam txhab Taiwanese, tswj hwm95% ntawm lub ntiaj teb no e-paper zaub ua lag luam. Cia tus lej ntawd poob rau hauv. Txhua Kindle. Txhua Kobo. Txhua reMarkable. Txhua Boox. Txhua Supernote. Txhua lub txee hluav taws xob hauv txhua lub khw muag khoom, txhua lub tsev muag tshuaj, txhua lub tsev khaws khoom. Tag nrho cov ntawm lawv siv E Ink panels.
Qhov no tsis yog kev lag luam dominance. Qhov no yog monopoly.
Lub tuam txhab keeb kwm keeb kwm taug qab mus rau MIT's Media Lab hauv xyoo 1990, qhov twg cov kws tshawb fawb tau tsim cov tub ntxhais microencapsulated electrophoretic technology. Lub tuam txhab khiav tawm, E Ink Corporation, tau txais los ntawm Taiwan's Prime View International hauv 2009. Peb xyoos tom qab ntawd, hauv 2012, E Ink nqus SiPix, nws tsuas yog tus neeg sib tw tseem ceeb thaum lub sijhawm. Qhov tshwm sim yog ib qho khoom siv nrog ib qho chokepoint.
Thaum koj yuav ib qho e- ntawv ntaus ntawv los ntawm ib lub chaw tsim khoom, koj cov nyiaj thaum kawg ntws mus rau ib lub tuam txhab hauv Hsinchu, Taiwan.
Patents ua rau monopoly ruaj.Cov tub ntxhais microencapsulated electrophoretic zaub patent, tau thov rau xyoo 1996, tau tas sijhawm. Hauv txoj kev xav, qhov no yuav tsum tau qhib lub qhov dej nyab. Txhua tus neeg yuav tsum muaj peev xwm tsim tau e- ntawv qhia siv cov thev naus laus zis yooj yim.
Tab sis E Ink tsis tau so thaum lub sijhawm patent - tiv thaiv xyoo ntawd.
Lub tuam txhab siv nyiaj kwv yees li$ 150 lab txhua xyoo ntawm R & D- ib nrab - cov hluas feem pua ntawm cov nyiaj tau los. Rau cov chaw tsim khoom lag luam, qhov no yog qhov siab tshaj plaws. Samsung Display, ua haujlwm ntawm qhov loj dua, siv ib feem me me ntawm cov nyiaj tau los ntawm kev tshawb fawb. E Ink's R & D siv zog sib tw cov tuam txhab tshuaj.
Qhov kev nqis peev no tsim cov ntaub ntawv patent txuas ntxiv. Xim lim arrays. Faster refresh waveforms. Plastic substrate yooj yooj yim. Txhim kho qhov sib piv piv. Tsawg- ua haujlwm kub. Txhua tiam ntawm kev siv tshuab coj cov cuab yeej txawj ntse tshiab. Txhua yam tshiab ntxiv lwm txheej rau lub fortress.
Thawj patent tas sij hawm hloov tsis muaj dab tsi. Lub fortress tsuas loj hlob tshiab phab ntsa.
Txhua tus neeg sib tw sim nkag mus rau hauv kev lag luam ntsib kev xaiv: daim ntawv tso cai E Ink's thev naus laus zis (thiab lees txais lawv lub hwj chim tus nqi), txhim kho lwm txoj hauv kev uas taug kev ncig ntau txhiab tus patents (kim thiab sij hawm-siv), lossis lees tias lawv cov khoom lag luam yuav qis dua (thiab yog li kev lag luam tsis zoo).
Kuj tseem muaj lub voj voog tsis zoo ntawm kev ua si uas tau txais txiaj ntsig rau tus neeg sawv cev. E Ink tag nrho cov nyiaj tau los txhua xyoo ho nyob ib ncig ntawm $ 1 nphom. Uas suab zoo li ntau txog thaum koj muab piv rau lub ntiaj teb cov zaub vaj huam sib luag ua lag luam, uas tshaj $ 150 nphom txhua xyoo. E- ntawv nyob ib feem ntawm ib feem ntawm kev lag luam zaub.
Kev lag luam me txhais tau tias cov khoom me me. E Ink ua haujlwm fab uas me me piv rau qhov loj heev Gen 10.5 chaw uas BOE thiab Samsung siv rau LCD thiab OLED ntau lawm. Cov ntim me me txhais tau tias tsis muaj kev lag luam ntawm nplai. Tus nqi ruaj khov ntawm kev tsim khoom- chav huv, khoom siv, cov neeg ua haujlwm engineering- tau kis mus rau tsawg dua chav nyob.
Tsis muaj kev lag luam ntawm nplai txhais tau tias tus nqi nyob siab. Ib tug 6-inch e-ink panel nqi $30–$60. Lub 6-inch LCD vaj huam sib luag nqi $3-$8. Cov txheej txheem tsim khoom sib txawv, tab sis qhov sib txawv ntawm qhov sib txawv tsim qhov kev txiav txim-ntawm-qhov loj ntawm tus nqi sib txawv.
Tus nqi siab txwv tsis pub txais yuav. Cov neeg siv khoom saib e- cov khoom siv number case, saib tus nqi tshaj li LCD lwm qhov, thiab feem ntau xaiv cov kev xaiv pheej yig dua. Cov tuam txhab lag luam txwv lawv cov e- cov kab khoom lag luam vim tias kev lag luam me dua.
Txwv tsis pub txais yuav ua rau lub lag luam me. Thiab lub voj voog txuas ntxiv mus.
Qhov no yog tus kheej - txhawb nqa ntxiab uas tsuas yog tawg yog tias ib tus neeg nqis peev ntau txhiab daus las kom ncav cuag qhov ntsuas - lossis yog tias kev hloov pauv thev naus laus zis loj ua rau kev tsim khoom tam sim no tsis cuam tshuam. Tsis tau tshwm sim. Tsis zoo li yuav tshwm sim.
Kev sib piv LCD
Tus nqi sib txawv ntawm e- number case thiab LCD tsim nyog tau txais kev saib xyuas meej, vim nws qhia tau hais tias qhov kev cuam tshuam ntawm e- ntawv nqi tau dhau los.
Ntawm 6-inch loj- tus e- tus qauv nyeem ntawv- LCD vaj huam sib luag nqi $3 txog $8. Lub vaj huam sib luag e-ink raug nqi $ 30 txog $ 60. Qhov ntawd yog ib qho8 × txog 10 × hwmrau e- ntawv. Ob lub technologies yog mature. Ob qho tib si yog tsim los ntawm qhov ntsuas (txawm tias sib txawv loj heev). Tus e- tus cwj mem premium tsis tuaj yeem piav qhia los ntawm kev tsim khoom nyuaj ib leeg.
Ntawm 10 ntiv tes, LCD panels khiav $ 8 txog $ 15. E- cov ntawv luam ntawv raug nqi $100 txog $180. Qhov piv tau zuj zus mus10 × 12 ×. Koj tuaj yeem yuav kaum lub LCD vaj huam sib luag rau tus nqi ntawm ib qho e-ink panels.
Cov chav kawm 25-inch loj qhia qhov tsis txaus ntseeg tag nrho. Ib tug 25-inch LCD vaj huam sib luag- yam nyob rau hauv ib tug yooj yim chaw ua hauj lwm saib-tus nqi $40 rau $80. Lub vaj huam sib luag 25-nti e-ink raug nqi $ 800 txog $ 1,200. Qhov ntawd yog ib15 × txog 20 × hwm.
Ib qho tiav 25-inch LCD saib muag rau qis dua $ 100 ntawm cov khw muag khoom, suav nrog lub vaj huam sib luag, cov khoom siv hluav taws xob, cov khoom siv, cov khoom siv hluav taws xob, thiab cov nyiaj tau los. Ib tug tiav 25-nti e-ink saib muag rau $ 2,000 lossis ntau dua.
Cov cuab yeej sib txawv, yog. E-tus number case yuav tsum muaj qhov tseeb waveform tiam. Cov txheej txheem tsim khoom siv microencapsulation ntau dua li cov kua siv lead ua kua. Yields yuav qis dua, tolerances tighter.
Tab sis yog lub tshuab 15 × rau 20 × ntau dua? Puas yog 15 × rau 20 × kim dua los tsim khoom ntawm qhov sib npaug?
Tsis yog. Tus nqi sib txawv tsis yog los ntawm kev siv tshuab nkaus xwb. Nws yog justified los ntawm kev ua lag luam qauv. Thaum ib lub tuam txhab tswj cov khoom siv thiab ntsib tsis muaj kev sib tw, tus nqi cuam tshuam kev lag luam lub zog, tsis yog tus nqi tsim khoom.
Xim Technology: Kaleido, Gallery, thiab Spectra
Xim e-ink tau tuaj txog, tab sis nyob rau hauv ntau yam flavors nrog ntau yam txawv txawv thiab tus nqi ntsiab lus.
Kaleido
Kaleidosawv cev rau E Ink pawg-kev ua lag luam xim. Cov thev naus laus zis tso cov xim lim array (CFA) hla tus qauv dub-thiab-dawb e- txheej number case-conceptually zoo ib yam li LCD qhia ua xim, txawm tias lub hauv paus pixel technology txawv kiag li. Qhov tshwm sim:4,096 xim ntawm 150 PPIxim daws teeb meem, nrog rau hauv qab monochrome txheej tseem xa 300 PPI rau dub- thiab - cov ntsiab lus dawb. Cov ntawv tseem ntse vim nws ua tiav ntawm kev daws teeb meem tag nrho. Cov duab xim tshwm sim me ntsis muted thiab qis dua - daws teeb meem vim lawv tau lim los ntawm CFA.
Cov nqi hloov tshiab tseem pom zoo rau kev nyeem ntawv- piv rau cov vaj huam sib luag monochrome. Koj yuav tsis pom qhov qeeb qeeb thaum tig nplooj ntawv lossis scrolling los ntawm cov ntsiab lus xim.

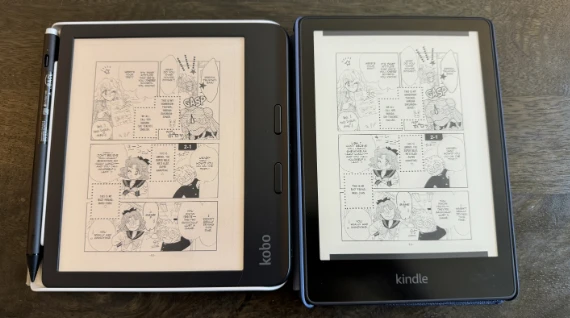

Kev ua lag luam- tawm yog muaj tiag. Cov xim zoo li ntxuav tawm piv rau LCD lossis OLED. Saturation yog txwv. 150 PPI xim daws teeb meem txhais tau tias cov ntsiab lus zoo xim zoo nkaus li muag me ntsis. Lub hnub ci ncaj qha nyeem tau-e- tus cwj mem tus cwj pwm tua neeg- yog qhov txo qis vim tias cov xim lim absorbs lub teeb.
Kaleido 3 modules raug nqi kwv yees50-80% ntaudua li sib npaug monochrome panels. Lub 7-nti Kaleido 3 vaj huam sib luag yuav raug nqi $ 50- $ 70 qhov twg lub vaj huam sib luag monochrome raug nqi $ 30- $ 40. Tus nqi yog qhov tseem ceeb tab sis tsis txwv, uas yog vim li cas Kaleido tau tshwm sim hauv cov neeg siv khoom xws li Kobo Libra Xim thiab ntau yam xim Boox qauv.

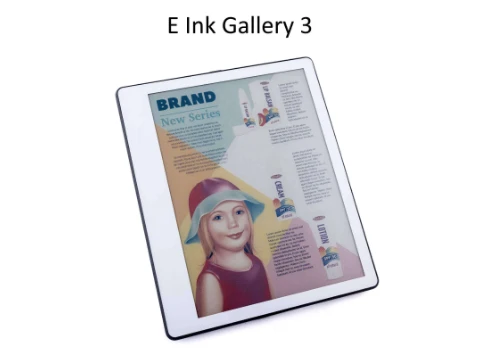

Gallery 3
Gallery 3yog ib txoj hauv kev sib txawv, thiab nws tswj hwm tus nqi sib txawv. Tsis txhob lim lub teeb dawb los ntawm cov xim arrays, Gallery 3 siv plaub -pigment system-cyan, magenta, daj, thiab dawb- ntim rau hauv txhua lub microcapsule. Txhua pixel muaj tag nrho plaub cov xim, uas tuaj yeem xaiv tau txav mus rau qhov pom los ntawm cov kab hluav taws xob sib txawv.
Tsis muaj xim lim yuav tsum tau. Qhov tshwm sim: kwv yees li50,000 xim ntawm tag nrho 300 PPIdaws teeb meem thoob plaws tag nrho cov zaub. Cov duab xim yog qhov pom tseeb dua li Kaleido. Cov thev naus laus zis mus txog qhov koj yuav hu ua "zoo txaus" xim luam tawm rau ntau qhov kev siv.
Kev lag luam - tawm yog ceev. Tsiv plaub hom xim sib txawv rau cov haujlwm meej yuav siv sijhawm. Qhov puv - xim zoo tuaj yeem siv sijhawm txog 1.5 vib nas this. Fast refresh hom muaj tab sis txi cov xim raug. Koj tsis saib video ntawm Gallery 3 zaub. Koj tsis txawm scrolling smoothly los ntawm ib daim ntawv xim.
Gallery 3 panels yog tshwj tseg rau cov ntawv thov hwm. E Ink tsis tshaj tawm tus nqi, thiab cov khoom tiav siv Gallery 3 tsis tshua tawg tawm cov nqi vaj huam sib luag. Tab sis cov ntaub ntawv pov thawj pom tseeb hauv cov nqi muag khoom: xim e-cov ntsiav tshuaj siv Gallery 3 hais kom ua $500–$800 tus nqi tshaj li cov monochrome sib npaug nrog cov yam ntxwv zoo ib yam. Ib reMarkable 2 raug nqi $450. Ib qho piv txwv Gallery 3 xim khoom raug nqi $ 900 lossis ntau dua.
Spectra 6
Thiab ces muajSpectra 6, uas lub hom phiaj ntawm kev ua lag luam sib txawv kiag li: kos npe thiab muag khoom muag. Cov thev naus laus zis siv rau -xim tso zis los ntawm plaub- pigment microcup architecture, optimized rau loj- hom ntawv qhia uas hloov tsis tu ncua. Xav tias lub khw muag khoom noj khoom haus cov paib, cov ntaub ntawv hauv tshav dav hlau, cov ntawv pov thawj hauv tsev cia puav pheej - cov ntawv thov uas koj xav tau xim, qhov loj me, thiab xoom lub zog ntawm kev hloov tshiab. Vaj huam sib luag qhov ntau thiab tsawg ncav cuag 75 ntiv tes hauv 2025. Cov nqi khiav mus rau ntau txhiab daus las. Kev muag khoom tshwm sim tshwj xeeb los ntawm B2B raws nrog kev sib cog lus, kev cog lus ntim, thiab kev pabcuam kev cai sib koom ua ke.
Yog tias koj tab tom nyeem tsab xov xwm no sim seb yuav ua li cas thiaj li yuav Spectra 6 vaj huam sib luag rau tus kheej qhov project, cov lus teb yog: koj tsis tuaj yeem ua tsis tau, thiab koj twv yuav raug hu tsis tuaj yeem them taus.
Dab tsi txawv buyers tiag them
e-ink lag luam ua hauj lwm radically txawv buyers ntawm radically sib txawv cov ntsiab lus. Qhov twg koj zaum hauv hierarchy txiav txim seb koj them dab tsi.

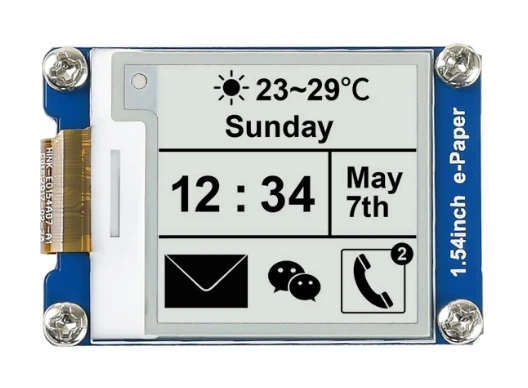

Hobbyist/Maker Tier
Yog tias koj tab tom tsim ib qhov project tus kheej- lub tsev ntse zaub, e- chaw nres tsheb huab cua, kos duab kos duab- koj tab tom yuav khoom ntawm Waveshare, Adafruit, Good Display, lossis AliExpress. Koj qhov kev yuav khoom ib txwm: 2.9 "mus rau 7.5" cov khoom siv txhim kho nrog lub rooj tsavxwm tsav tsheb, ribbon cables, thiab qauv code. Nqe ntau:$15 rau $120nyob ntawm qhov loj thiab nta.
Kev kuaj xyuas tseeb: koj them tus nqi muag khoom nrog tag nrho cov cim. Txhua tus neeg nruab nrab yuav txiav. Waveshare yuav cov vaj huam sib luag los ntawm E Ink (lossis cov chaw muag khoom tau tso cai), ntxiv cov khoom siv hluav taws xob, sau cov ntaub ntawv, tswj kev xa khoom, thiab muab kev txhawb nqa rau cov neeg siv khoom. Tag nrho cov no raug nqi nyiaj.
Ib qho 7.5-inch Waveshare peb-xim khoom raug nqi $50–$90 nyob ntawm seb koj yuav nws. Tib lub vaj huam sib luag, thaum yuav los ntawm Amazon hauv ntau ntau lab, tej zaum yuav raug nqi qis dua $ 20 suav nrog cov tsav tsheb hluav taws xob. Koj tab tom them 3 × rau 4 × tus nqi them rau txoj cai ntawm kev yuav ib chav nyob ib zaug.
Qhov no tsis ncaj ncees -me- kev faib tawm kom muaj nuj nqis muaj nqi tiag. Tab sis nws txhais tau tias hobbyist pob nyiaj siv tau sai sai. Tsim ib plaub- vaj huam sib luag e- tus lej dashboard yuav raug nqi $ 300 hauv vaj huam sib luag ib leeg.
Me Me Qib Ntau Lawm
Thaum koj xaj 100–1,000 units rau prototyping lossis me me -scale ntau lawm, qhov kev ua si hloov. Koj tab tom ua haujlwm los ntawm cov neeg xa khoom, cov chaw muag khoom Alibaba, lossis sim hu rau lub Hoobkas ncaj qha. Tus nqi feem ntau khiav20-40% hauv qab lub khw muag khoomntawm cov ntim no. Ib lub vaj huam sib luag uas raug nqi $ 60 ntawm Waveshare tej zaum yuav muaj nyob rau ntawm $ 40– $ 45 los ntawm kev sib raug zoo ntawm tus xa khoom.
Tab sis kev muaj tiag yuav nyuaj. Quotes xav tau NDAs- cov neeg muab khoom siv tsis xav kom cov neeg sib tw paub lawv tus nqi. Yam tsawg kawg nkaus kom muaj nuj nqis tsim teeb meem: tej zaum koj yuav tau cog lus rau 500 units kom tau txais tus nqi zoo, tab sis koj tsuas yog xav tau 200 rau koj qhov kev pib ua haujlwm. Lub sij hawm ua cov hmoov txhuas txuas mus rau lub lis piam lossis hli. Kev sib raug zoo ua rau koj qhov teeb meem.
Cov neeg yuav khoom me tsis muaj peev xwm. E Ink tsis quav ntsej txog koj qhov kev txiav txim 500-unit. Lawv muag ntau lab lub vaj huam sib luag rau Amazon. Koj lub lag luam nyob lossis tuag raws li kev txiav txim siab faib rau cov neeg siv khoom ib txhiab npaug ntawm koj qhov loj.
Enterprise / OEM Tier
Ntawm 10, 000+ units ib xyoos ib zaug, koj tau ncaj qha nrog E Ink cov neeg muag khoom lossis cov koom tes tsim khoom tau tso cai. Kev lag luam kwv yees qhia tias OEMs loj them$ 10- $ 15 rau 6-nti vaj huam sib luag-piv rau $30–$60 ntawm khw muag khoom. Volume pricing yog tiag tiag, thiab qhov sib txawv yog loj heev.
Amazon, Kobo, Rakuten, thiab ESL cov neeg muag khoom loj xws li Pricer thiab SES-imagotag ua haujlwm ntawm qib no. Lawv sib tham ntau- xyoo kev cog lus, lav kev faib tawm, kev cai tshwj xeeb, thiab tus nqi uas tus neeg yuav khoom yuav tsis pom. Qhov sib txawv ntawm cov khw muag khoom thiab ntim tus nqi tuaj yeem tshaj 70%.
Cov kev sib raug zoo no kuj tuaj nrog cov luag num: ntim cov lus cog tseg, kev sib koom tes hauv kev txhim kho, qee zaum tshwj xeeb qhov rais ntawm cov thev naus laus zis tshiab. Thaum E Ink nthuav tawm lub vaj huam sib luag loj lossis xim thev naus laus zis, OEMs loj feem ntau tau txais thawj zaug.
Yog tias koj tab tom sim tsim cov neeg siv khoom e- lub tuam txhab nyeem ntawv thiab sib tw nrog Kindle tus nqi, nkag siab tias koj tsis yog kev sib tw nrog Amazon lub npe thiab ecosystem. Koj tab tom sib tw nrog lawv cov nqi tiv thaiv, uas zoo li 50-70% qis dua koj li.
Secondary Market
Kuj tseem muaj cov duab ntxoov ntxoo ua lag luam rau e-ink panels uas feem ntau cov neeg yuav khoom yeej tsis xav txog: cov khoom siv rov ua dua thiab cov khoom seem. Cov peev txheej suav nrog cov khoom siv rov ua dua tshiab thiab Kobos (cov ntxaij vab tshaus feem ntau outlast cov cuab yeej), decommissioned electronic shelf label systems (khw upgrade and discard old hardware), surplus inventory from canceled projects, and manufacturing overruns.
Nqe khiav30-50% ntawm cov nqi vaj huam sib luag tshiab. Ib lub vaj huam sib luag 6-nti uas raug nqi $ 40 tshiab tuaj yeem muaj rau $ 15- $ 20 los ntawm cov khoom siv rov ua dua tshiab.
Kev lag luam- tawm yog qhov tseem ceeb. Tsis muaj warranty-yog tias lub vaj huam sib luag puas lawm, koj noj qhov poob. Muaj peev xwm degradation-e-ink panels tuaj yeem tsim cov pixels daig lossis tsis sib xws nyob rau lub sijhawm thiab kev siv. Tsis paub keeb kwm-koj tsis paub tias muaj pes tsawg lub voj voog tshiab uas lub vaj huam sib luag tau ntsib lossis nws tau khaws cia li cas.
Qhov tseem ceeb tshaj plaws, cov khoom siv rov ua dua tshiab xav tau kev txhim kho tus neeg tsav tsheb. Koj tsis tau txais cov khoom siv txhim kho zoo nrog cov ntaub ntawv. Koj tab tom tau txais ib lub vaj huam sib luag liab qab, tej zaum nrog cov hlua txuas, thiab koj yuav tsum paub txog cov pinout, tsav lub waveforms, thiab pib ua ntu zus koj tus kheej.
Kev ua lag luam no tsuas yog tsim rau cov neeg tsim khoom kho vajtse nrog oscilloscopes, ua siab ntev, thiab ua siab ntev rau kev ua tsis tiav. Nws tsis yog rau hobbyists tsim lawv thawj e-paper project.
Cov Khoom Muag Khoom Muag Khoom Muag
Panels liab qab yog ib yam. Cov khoom tiav tiav yog qhov feem ntau cov neeg siv khoom tiag tiag yuav, thiab tus nqi cuam tshuam ntau dua li cov nqi vaj huam sib luag xwb.
Ib tug tiav e- nyeem ntawv los yog e-note ntaus ntawv suav nrog e- number case vaj huam sib luag, tab sis kuj: ib tug processor (feem ntau ARM-raws li), RAM thiab cia, roj teeb, kov txheej (capacitive los yog electromagnetic), pem hauv ntej lub teeb system, yas los yog txhuas enclosure, nyees khawm thiab ports, software tsim, regulatory chaw tsim tshuaj paus thiab gin.
Tus nqi vaj huam sib luag tuaj yeem sawv cev20-40% ntawm cov khoom sivrau tus neeg siv khoom siv. Txhua yam ntxiv ntxiv.

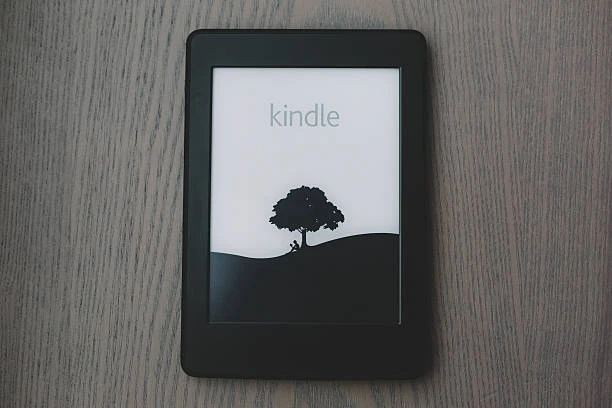

E-Cov neeg nyeem ($100–$280)
Lub Kindle Paperwhite thiab Kobo Clara nyob hauv$100–$180 ntau yamrau yooj yim monochrome 6-inch e- nyeem. Cov yam ntxwv tshwj xeeb- teeb pom kev sov sov, kev cia loj dua, tiv thaiv dej tsis zoo- thawb mus rau qhov kawg siab dua. Xim e-nyeem ntawv zoo li Kobo Libra Xim tau tuaj txog hauv$ 200- $ 280 ntau yam, siv Kaleido technology. Qhov ~ $ 100 tus nqi tshaj qhov sib npaug ntawm monochrome qhia txog ob qho tib si vaj huam sib luag tus nqi nce thiab qhov tshiab tshiab.
Ntawm cov nqi no, e- cov neeg nyeem tau dhau los ua tus nqi tiag tiag rau cov neeg nyeem feem ntau. Lub Kindle Paperwhite raug nqi tsawg dua li kaum phau ntawv hardcover. Tus nqi hais tawm yog qhov tseeb, txawm tias e- tus lej tus nqi them tshaj LCD.

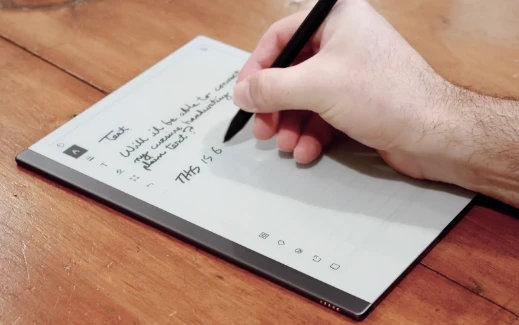

E-Note Tablets ($400–$900)
Qhov no yog qhov uas cov nqi nce siab heev rau e-cov ntsiav tshuaj ceeb toom. Lub reMarkable 2 nqi ib ncig$450. Boox Note Air series khiav$400–$500. Cov khoom siv supernote nyob hauv thaj chaw zoo sib xws. Ntawm 10.3 ntiv tes, cov no yog cov cuab yeej tshaj lij ua lag luam rau kev ceeb toom- cov neeg siv khoom, cov kws tshaj lij, thiab cov neeg siv lag luam uas xav tau daim ntawv- zoo li kev sau ntawv.
Tus nqi hais lus tsis tshua pom tseeb ntawm no. Ib lub $450 e-note ntsiav tshuaj sib tw nrog $329 lub hauv paus iPad uas ua txhua yam uas e-note ua, ntxiv rau ntau lab ntawm lwm yam. E-ceeb toom cov neeg yuav khoom tau them nyiaj tshwj xeeb rau daim ntawv-zoo li kev paub, kev cuam tshuam - ib puag ncig dawb, thiab txo qhov muag pom.
Loj -hom ntawv 13.3-inch e-notes thawb rau hauv$550–$800 ntau yam. Xim versions -siv Gallery 3- tuaj yeem tshaj$900. Ntawm cov nqi no, koj tab tom yuav cov cuab yeej tshwj xeeb rau kev ua haujlwm tshwj xeeb. Kev ua lag luam me me tab sis mob siab rau.
E-Ink Monitors ($500–$2,500)
E-cov tshuaj ntsuam xyuas tus cwj mem sawv cev rau tus nqi siab tshaj plaws-rau- suav nqi hauv tag nrho lub khw. Tus nqi 10.3-nti Dasung Paperlike 103$500–$800. Qhov no yog qhov thib ob saib xyuas qhov loj ntawm lub ntsiav tshuaj loj, haum rau kev nthuav tawm cov ntaub ntawv lossis cov ntaub ntawv siv thaum ua haujlwm ntawm lub vijtsam thawj. Lub 13.3- nti saib los ntawm Boox (Mira series) thiab Dasung (HD-FT) khiav$800–$1,200. Ntawm qhov loj me no, koj tuaj yeem tsim nyog nyeem cov ntaub ntawv tag nrho, kho cov ntawv nyeem, lossis tshawb xyuas cov vev xaib - yog tias koj tuaj yeem zam tus nqi tshiab.
Lub 25.3-nti desktop saib yog cov khoom lag luam tseem ceeb: Dasung Paperlike 253 ntawm$2,250, Boox Mira Pro ntawm tus nqi zoo sib xws, xim versions thawb mus rau$2,500.

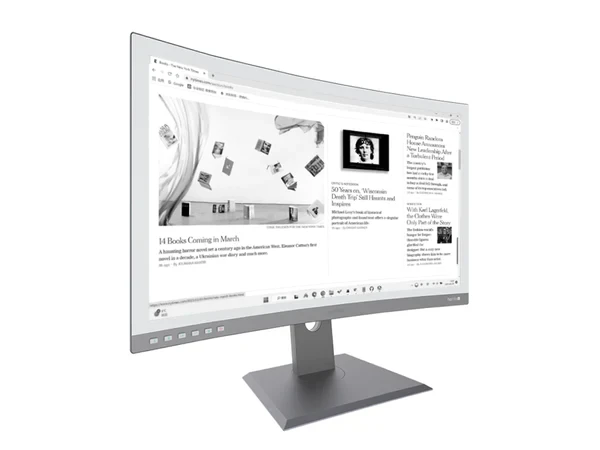

$ 2,250 yuav koj ntau hauv khw muag khoom. 32-nti 4K OLED saib nrog 120Hz refresh, HDR txhawb nqa, thiab ntau lab xim: txog $ 900. Ib tug 27-nti kev yees duab kho saib nrog lub Hoobkas xim calibration: txog $700. 49-nti ultrawide nkhaus gaming saib: txog $800.
Rau tus nqi ntawm ib qho 25.3-inch e-ink monitor, koj tuaj yeem yuav ob lub OLED qib kws tshaj lij thiab muaj nyiaj tshuav.
E-cov tshuaj ntsuam xyuas tsis sib tw ntawm tus nqi. Lawv tsis sib tw ntawm cov yam ntxwv. Lawv muag rau cov neeg yuav khoom nrog cov kev xav tau tshwj xeeb- txo qhov muag pom, ntawv-zoo li kev zoo nkauj, tshem tawm glare- uas tsis muaj lwm txoj hauv kev. Cov neeg tsim khoom paub qhov no. Tus nqi cuam tshuam nws.
Tus nqi zais tsis muaj leej twg qhia koj txog
Yog tias koj tab tom tsim cov khoom lag luam nrog e-ink- tsis yog yuav khoom tiav, tab sis tsim ib yam tshiab- tus nqi vaj huam sib luag yog qhov pib xwb.
Tsav Tsheb Electronics
Raw e-ink panels tsis lees txais cov khoom siv digital yooj yim. Lawv xav tau cov tswj hwm cov laug cam uas muaj peev xwm tsim cov waveforms nyuaj- raws li lub sijhawm ua haujlwm voltage uas txav cov xim xim hauv cov microcapsules. Tawm -- txee tswj muaj nyob. IT8951 yog ib qho rau cov vaj huam sib luag loj. Ntau yam controllers los ntawm Zoo Zaub thiab Waveshare tuav me me. Cov no ntxiv$10–$50rau koj daim nqi ntawm cov ntaub ntawv, nyob ntawm qhov kev daws teeb meem thiab nta. Kev txhim kho tus neeg tsav tsheb kev cai-yog tias koj xav tau cov yam ntxwv tshwj xeeb, tus nqi qis dua ntawm qhov ntim, lossis cov qauv me me- ntxiv cov sijhawm ua haujlwm ntau lub lis piam. Koj xav tau cov engineers kho vajtse uas nkag siab siab -voltage switching, time limits, and EMI management. Qhov kev txawj ntse no tsis muaj ntau.
Waveform Development
Thiab tom qab ntawd muaj waveform tuning-qhov no yog qhov uas tau txais neeg tiag tiag. E- cov ntawv luam tawm tsis tsuas yog tig pixels rau thiab tawm. Txhua qhov kev hloov tshiab yuav tsum ua tib zoo ntsuas qhov sib npaug ntawm cov hluav taws xob hluav taws xob uas yuav tsum suav rau lub xeev pixel yav dhau los, lub xeev xav tau tshiab, qhov kub thiab txias, thiab cov duab xav tau zoo.
Cov lus nrhiav waveform no yog cov kua ntses zais cia ntawm e- number case zaub zoo. Zoo waveforms tsim cov ntawv nkig nrog me ntsis ghosting. Cov duab tsis zoo tsim cov duab av nkos, pom cov duab kos, thiab cov pixel hnav ntxov ntxov.
Kev txhim kho Waveform tsis tau sau tseg.Tsis muaj pej xeem specification. Tsis muaj cov qauv tsim. Qhov no yog daim duab tsaus uas tau txais los ntawm kev sim thiab qhov ua yuam kev, cov cuab yeej siv - tus cwj pwm hnyav, thiab qee zaum kim kev sib tham nrog E Ink lossis cov neeg koom tes tso cai.
Cov tuam txhab xws li Good Display thiab Waveshare muab ua ntej -tuned waveforms nrog lawv cov khoom siv txhim kho. Qhov no ua haujlwm zoo rau kev tsim qauv thiab me me - nplai ntau lawm. Kev ua raws li kev cai-kev khiav hauj lwm sib txawv, cov vaj huam sib luag sib txawv, kev hloov kho kom zoo dua qub- yuav tsum tau rov qab engineering uas twb muaj lawm waveforms lossis tsim cov tshiab los ntawm kos.
Nyiaj txiag raws li.
Kov kev koom ua ke
Feem ntau cov neeg siv khoom e- cov khoom siv number case muaj xws li kov cov tswv yim, xws li capacitive (ntiv tes kov) lossis electromagnetic (stylus, siv Wacom lossis cov tshuab digitizer zoo sib xws). Cov khaubncaws sab nraud povtseg tsis suav nrog cov nqi vaj huam sib luag hauv qab. Lawv yog cov khoom sib cais uas yuav tsum tau sib koom ua ke rau cov zaub, calibrated, thiab kev koom ua ke nrog koj cov software. Capacitive kov kev koom ua ke ntxiv20–30%rau vaj huam sib luag nqi. Ib lub vaj huam sib luag $50 dhau los ua $60–$65 nrog kov. Electromagnetic digitizer kev koom ua ke-yuav tsum tau rau cov tswv yim stylus meej nyob rau hauv e- ntawv sau npe- ntxiv cov nqi zoo sib xws, qee zaum ntau dua.

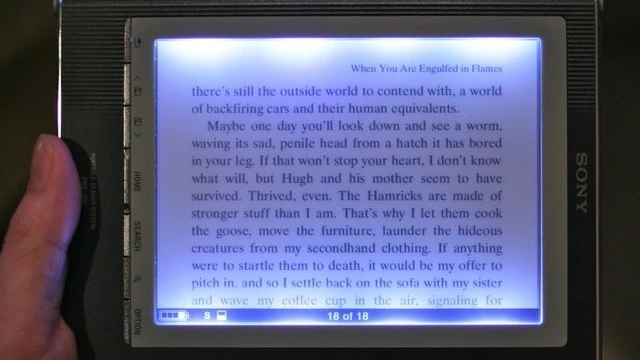

Pem hauv ntej Teeb Systems
E- cov duab kos yog qhov pom. Lawv saib zoo nyob rau hauv qhov kaj ambient tab sis ua tsis muaj txiaj ntsig hauv qhov tsaus ntuj. Cov neeg siv khoom siv feem ntau suav nrog teeb pom kev hauv ntej los daws qhov kev txwv no. Lub teeb ci pem hauv ntej siv ntug-mounted LEDs thiab cov lus qhia lub teeb kom faib cov teeb pom kev thoob plaws qhov chaw. Zoo-tsim lub teeb pem hauv ntej tsis pom thaum tawm thiab muab teeb pom kev zoo txawm tias ua haujlwm. Cov teeb pom kev tsis zoo rau pem hauv ntej tsim kom pom cov hotspots, qhov ci tsis sib xws, thiab teeb pom kev tsis pom kev. Pem hauv ntej teeb modules ntxiv$5–$20ib chav nyob nyob ntawm qhov zoo thiab nta xws li kev hloov xim kub. Tsim kev sib koom ua ke- kom ntseeg tau tias cov ntawv qhia teeb pom kev zoo rau cov duab tsis cuam tshuam rau qhov zoo ntawm qhov muag - yuav tsum muaj kev tsim vaj tsev ntxiv.
Supply Chain Risk
Tej zaum qhov tseem ceeb tshaj plaws tus nqi zais:ib leeg - qhov chaw nyob. E Ink Holdings yog koj tus neeg muag khoom nkaus xwb rau cov khoom siv electrophoretic. Yog tias lawv muaj teeb meem ntau lawm, koj muaj teeb meem ntau lawm. Yog tias lawv cov nqi nce, koj cov paj tau qis. Yog tias qhov kev thov los ntawm cov neeg siv khoom loj (Amazon, cov neeg muag khoom ESL loj) siv cov kev faib tawm, koj cov xaj yuav raug thawb rov qab.
Tsis muaj qhov poob qis. Tsis muaj qhov thib ob. Tsis muaj lwm tus neeg muab khoom lag luam uas koj tuaj yeem tsim nyog thaum muaj kev tsis txaus.
Prudent hardware tuam txhab uas muag tsim kev sib raug zoo nrog ntau tus neeg muag khoom rau cov khoom tseem ceeb. Nrog e-ink, qhov no ua tsis tau. Koj cov saw hlau muaj ib qho kev ua tsis tiav, tswj los ntawm lub tuam txhab uas nws nyiam yuav tsis ua raws li koj li.
Dab tsi tshwm sim tom ntej
Kev kwv yees yav tom ntej yog kev phom sij. Kev kwv yees yav tom ntej ntawm kev lag luam monopoly- tswj kev lag luam yog ob npaug. Tab sis tej yam tiam sis zoo li yuav.
Nyob ze -Lub Sijhawm (1–2 Xyoo)
Hauv xyoo tom ntej lossis ob xyoos, cov nqi vaj huam sib luag xim yuav poob qis dua li Kaleido 3 cov nplais ntau lawm. Cov thev naus laus zis tau paub tab txaus rau kev tsim khoom loj, thiab kev sib tw ntawm cov tuam txhab tsim khoom yuav tsum tsim qee tus nqi siab. Loj - hom ntawv qhia saum toj 25 ntiv tes yuav nkag siab dua - ntim ntau lawm. Lub 25.3- nti saib tam sim no ntawm kev ua lag luam yog qhov tseem ceeb ntawm tes- tsim cov khoom lag luam zoo. Raws li ntau lawm standardizes, tus nqi yuav poob 10-20%. Lub khw muag khoom hluav taws xob daim ntawv lo txuas ntxiv nthuav dav sai, ua rau tag nrho qhov kev thov rau e{15}} number case panels. Qhov no yog xov xwm zoo rau yav tom ntej thev naus laus zis, txawm hais tias ESL txoj kev loj hlob feem ntau tau txais txiaj ntsig zoo ntawm cov vaj huam sib luag me me ntau dua li cov neeg siv khoom siv.
Tsis muaj kev cuam tshuam tus nqi tseem ceeb yuav tsum tau cia siab rau hauv lub sijhawm no. E Ink's monopoly tseem ruaj ntseg. Manufacturing peev yuav siv sij hawm ntau xyoo los ua kom tiav. Tsis muaj dab tsi nyob ze - lub sij hawm qab ntug hem qhov xwm txheej quo.
Nruab nrab-Lub Sij Hawm (3–5 Xyoo)
Hauv peb lub xyoos tom ntej, cov patents tseem ceeb ntxiv yuav tas sij hawm, txoj hauv kev qhib lub sijhawm rau kev sib tw. Seb leej twg yuav siv cov kev qhib no tseem tsis paub meej.
Suav sib twnthuav tawm qhov tseeb tshaj plaws kev hem thawj rau E Ink txoj kev tswj hwm. Guangzhou OED tau tsim cov thev naus laus zis thev naus laus zis rau xyoo nrog kev ua lag luam tsis muaj kev vam meej. BOE- lub ntiaj teb cov chaw tsim khoom loj tshaj plaws - tau nqis peev hauv DES (Digital Electrophoretic System) thev naus laus zis uas tuaj yeem muaj peev xwm sib tw nrog E Ink qhov kev muab.
Yog tias cov neeg sib tw no ncav cuag kev ua lag luam muaj txiaj ntsig - loj yog tias - tus nqi tuaj yeem poob 20-30% vim tias cov tuam txhab tsim khoom tau txais kev sib tham txog kev siv zog. Kev sib tw tsis tas yuav ntes feem ntau ntawm kev lag luam los cuam tshuam tus nqi; lub tsuas muaj nyob ntawm ib tug credible lwm txoj kev hloov cov kev sib tham dynamic.
Flexible e-cov nqi ntawv yuav tsum txo qis raws li cov txheej txheem tsim khoom loj. Cov vaj huam sib luag yooj yim tam sim no hais kom cov nqi them tseem ceeb tshaj iav khov -cov duab rov qab. Cov nqi them nqi no tuaj yeem txo qis raws li qhov ntsuas ntau lawm.
Unknown Variables
Tab sis tsis muaj leej twg tuaj yeem kwv yees:Puas yog BOE lossis lwm cov zaub loj loj yuav nqis peev rau hauv tshuab electrophoretic?BOE muaj lub peev xwm tsim khoom, cov txuj ci engineering, thiab cov peev txheej nyiaj txiag los tawm tsam E Ink ncaj qha. Tab sis e- ntawv yog lub lag luam me me los ntawm BOE cov qauv. Kev ua lag luam $1 nphom yog qhov yuam kev sib npaug rau ib lub tuam txhab nrog $30+ billion hauv cov nyiaj tau los txhua xyoo. Cov teeb meem zoo rau kev nqis peev loj yog tsis meej.
Lwm cov thev naus laus zis puas yuav ua tiav kev lag luam?Cholesteric LCD muaj qee cov e- ntawv- zoo li cov yam ntxwv (bistable, reflective) nrog cov nqi tsim khoom qis dua. Electrowetting qhia tau cog lus ntau tab sis xa khoom me me. Cov thev naus laus zis tshiab tuaj yeem tshwm sim. Txawm hais tias ib qho twg tuaj yeem phim e-ink qhov sib xyaw ua ke ntawm cov yam ntxwv- sib piv, bistability, saib lub kaum ntse ntse, yoog raws- tseem yuav pom.
Puas yuav E Ink preemptively txiav nqi los tiv thaiv kev lag luam?Monopolists ntsib cov kev sib tw muaj peev xwm qee zaum txo tus nqi tawm tswv yim, lees txais cov paj qis kom tsis txhob muaj peev txheej los ntawm cov neeg sib tw muaj peev xwm. E Ink tuaj yeem txiav nqi 20-30% thiab tseem muaj txiaj ntsig. Lawv puas yuav txi nyiaj txiag los tuav txoj cai monopoly? Qhov kev txiav txim siab tsis yog kev lag luam nkaus xwb- nws suav nrog kev ua si txoj kev xav, koom nrog lub tswv yim, thiab kev ntsuam xyuas ntawm kev sib tw kev hem thawj uas cov neeg sab nrauv tsis tuaj yeem ntsuas.
Puas yuav Apple, Samsung, lossis lwm tus players loj nkag mus hauv khw?Ib lub tuam txhab siv khoom siv hluav taws xob loj tsim cov e- cov khoom lag luam tus lej loj tuaj yeem hloov kho tag nrho cov khoom siv. Apple qhov kev txaus siab rau e- ntawv tau rumored rau xyoo tsis muaj dab tsi los qhia. Samsung muaj kev tshaj lij kev tsim khoom los sib tw nrog E Ink ncaj qha yog tias mob siab rau. Tsis muaj leej twg tau ua qhov tseem ceeb txav mus rau qhov kev taw qhia no.
Kev ntsuam xyuas ncaj ncees: tsis muaj leej twg paub. Qhov feem ntau yuav tshwm sim yog txuas ntxiv evolution zuj zus ntxiv- maj mam txo tus nqi, maj mam txhim kho thev naus laus zis, maj mam nthuav cov ntawv thov- dua li tsis muaj kev cuam tshuam loj heev. Tab sis kev cuam tshuam, yog tias nws los, tuaj yeem tuaj sai.
E- tus nqi ntawm tus number case tsis yog txiav txim los ntawm kev tsim khoom nyuaj, cov nqi khoom siv, lossis kev siv thev naus laus zis. Nws yog txiav txim los ntawm kev ua lag luam qauv.
Ib lub tuam txhab tswj cov khoom siv. Patents thaiv kev sib tw. Kev ua lag luam me me dhau los ua kom zoo - cov neeg sib tw tau nyiaj. Cov nqi tseem siab vim tsis muaj dab tsi yuam kom lawv qis dua.
Rau cov neeg yuav khoom, qhov no tsim ib qho yooj yim xam:
Hauv qab $50tau txais koj cov qauv kev loj hlob me me-2.9" rau 5.8"-rau kev tsim qauv, IoT tej yaam num, thiab kev kawm. Ntawm tus nqi taw tes no, e- number case ua rau kev nkag siab rau cov haujlwm nyiam ua haujlwm txawm tias tus nqi tshaj LCD. Cov yam ntxwv tshwj xeeb- ntawv- zoo li cov tsos, bistability, nruab hnub nrig nyeem tau-tsim tus nqi rau cov ntawv thov tsim nyog.
$100–$300npog cov neeg siv khoom e- nyeem ntawv thiab e-cov khoom siv ceeb toom. Lub 6-inch e-nyeem khw lag luam tau mus txog qhov kev loj hlob thiab tus nqi tsim nyog. Yog tias koj xav tau ib lub cuab yeej nyeem ntawv tshwj xeeb, tus nqi lus pom zoo yog qhov ruaj khov.
$400–$800yuav cov kws tshaj lij e-cov ntsiav tshuaj ceeb toom thiab me me e- number case monitors. Koj tab tom them tus nqi them ntau heev rau ntawv-zoo li kev sau ntawv thiab qhov muag- txo qis. Cov no yog cov cuab yeej rau kev ua haujlwm tshwj xeeb, tsis yog dav dav - cov khoom siv.
$1,500–$2,500yog desktop e-ink saib thaj chaw. Cov neeg yuav khoom ntawm qib no muaj cov kev xav tau tshwj xeeb- teeb meem qhov muag hnyav, tshwj xeeb yog kev nyiam zoo nkauj, cov ntawv thov kev tshaj lij uas xav tau ntawv-zoo li cov duab- thiab tsis muaj lwm txoj hauv kev. Cov nqi qhia txog kev xav tau raug ntes.
$3,000 thiab siab duasawv cev tshwj xeeb loj - hom ntawv qhia, cov ntawv thov kev lag luam, thiab cov kev daws teeb meem digital signage. Cov no yog kev yuav khoom lag luam nrog cov peev nyiaj lag luam, sib tham los ntawm B2B raws.
Cov nqi no tsis ncaj ncees. Lawv tsis ua haujlwm zoo. Lawv tsis cuam tshuam txog kev siv thev naus laus zis hauv kev tsim khoom ntawm tus nqi tsim nyog. Lawv tsuas yog tus nqi ntawm kev yuav los ntawm kev lag luam monopoly nyob rau hauv ib qho kev lag luam uas tsis muaj leej twg tau tsim ib txoj hauv kev siv tau.
Lo lus nug tsis yog seb e- cov duab kos duab puas kim. Lawv yog, undeniably.
Cov lus nug yog seb leej twg puas yuav ua txhaum E Ink Holdings 'kev tuav ntawm kev ua lag luam ua ntej cov thev naus laus zis dhau los-tso tawm los ntawm qee qhov kev siv thev naus laus zis yav tom ntej uas muab e- ntawv cov txiaj ntsig yam tsis muaj kev txwv thiab tsis muaj nws tus nqi monopoly.
