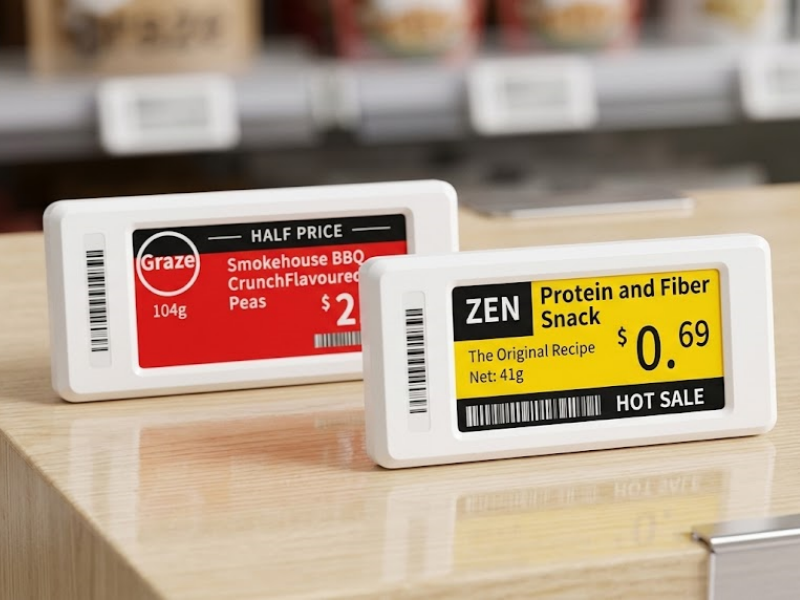

ESL Dimensions: Cov lej zoo li cas hauv kev xyaum
Electronic shelf edge labelsyog qhov loj los ntawm kev tshuaj ntsuam kab pheeb ces kaum, tib lub rooj sib tham siv rau cov saib thiab xov tooj. Legoyo's range khiav los ntawm 1.53 ntiv tes ntawm qhov kawg compact mus rau 9.7 ntiv tes rau cov ntawv tshaj tawm loj.
Daim duab feem ntau cov khw muag khoom xav tau ua ntej yoglub cev qhov tob- deb npaum li cas daim ntawv lo tawm sab nraud ntawm lub ntsej muag. Ntawm no yog qhov ntev ntawm qhov ntau, suav nrog Legoyo qhov tseeb spec rau 4.2 "tus qauv:
| Qhov Loj | Daim ntawv dav | Daim ntawv siab | Lub cev qhov tob | Daim ntawv thov |
|---|---|---|---|---|
| 1.53" | ~ 48 hli | ~ 33 hli | 8-10 mm | Cov khw muag tshuaj, tshuaj pleev ib ce, txee nqaim |
| 2.13" | ~ 72 hli | ~ 38 hli | 8-10 mm | High -khoom noj khoom haus ceev, txuj lom aisles |
| 2.66" | ~84 hli | ~ 43 hli | 9-11 mm | Cov khw muag khoom yooj yim, nyem & sau |
| 4.2" ✓ | 9 7,4mm | 88.9mm ib | 10-12 hli | Supermarket txheem, warehouse |
| 5.8" | ~ 155 hli | ~73 hli | 11-13 mm | Nruab nrab- hom khoom noj khoom haus, kev tshaj tawm khiav |
| 9.7" | ~ 235 hli | ~ 160 hli | 13-16 mm | Electronics, wine, tshwj xeeb khw muag khoom |
✓=lees paub los ntawm Legoyo's4.2-nti ESL spec daim ntawv. Lwm cov duab yog tus neeg sawv cev rau e-ink ESL kev tsim kho ntawm txhua qhov screen loj; txheeb xyuas cov nplooj ntawv cov khoom lag luam ua ntej ua tiav kev txiav txim.
Qhov tob ntawm 8-16 hli yog kwv yees li qhov tuab ntawm cov qauv credit card nteg tiaj tus - tsis yog ib qho kev cuam tshuam rau cov txee gondola. Cov lej ntawduatsim teeb meem thaum lawv tsis ncaj ncees lawm yog daim ntawv dav thiab daim ntawv siab, tsis tob. Ntxiv rau qhov hauv qab no.

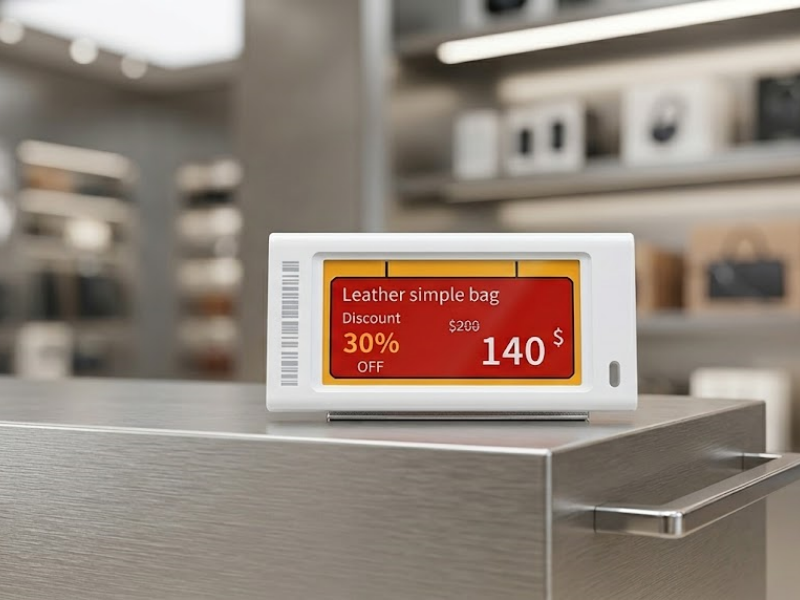

Yuav Ua Li Cas ESLs Sib Piv rau Koj Daim Ntawv Sau Npe Tam Sim No?
Cov lus teb tus qauv los ntawm cov neeg muag khoom yog tias ESLs siv "yuav luag tsis muaj chaw" - raug tab sis tsis muaj txiaj ntsig yog tias koj tab tom sim txiav txim siab seb koj puas yuav tau txais lossis poob kev cuam tshuam txog qhov koj muaj hnub no.
Ib daim ntawv lo rau cov khoom siv xws li cov yas snaps -hauv channel (10–14 mm sib sib zog nqus), daim ntawv ntxig rau nws tus kheej, thiab hauv ntau lub khw muag khoom muaj cov ntawv tshaj tawm, tus neeg hais lus txee, lossis tus tuav kos npe uas ntxiv 5–20 mm rau saum. Ib daim ntawv uas muaj neeg coob coob nyob ntawm lub txee ntug feem ntau protrudes12-28 hli, nyob ntawm seb muaj pes tsawg accessories txuas.
Legoyo's 4.2 "ESL ntawm 10-12 mm clips ncaj qha rau hauv feem ntau cov qauv txee rails. Daim ntawv channel yog nyob rau hauv qhov chaw thiab ESL mounts rau nws, los yog nws raug tshem tawm tag nrho - nyob rau hauv ob txoj kev, lub resulting protrusion yog sib npaug zos rau los yog ntiav tshaj li qhov nws hloov.
Rau cov ncauj lus kom ntxaws -los ntawm- sab kev sib piv ntawm kev ua haujlwm sib txawv,Shelby Report's retail technology coverage
muab kev pom zoo los ntawm cov khw muag khoom uas tau ua tiav qhov hloov pauv. Peb tus kheej qhia rauESL vs. daim ntawv lonpog tag nrho kev ua haujlwm sib piv.
Peb yam uas yuav tsum tau kuaj ua ntej xaiv koj daim ntawv loj
Feem ntau cov txee- teeb meem chaw hauv ESL cov haujlwm taug qab rov qab mus hla ib qho ntawm peb daim tshev ua ntej xaj.
1. Label Dav vs. Koj cov khoom Facing Dav
Lub cev qhov tob tsis tshua muaj teeb meem. Qhov loj me uas ua rau mob taub hau tiag tiagdaim ntawv lo lub cev dav txheeb ze rau cov khoom uas tau muab tso rau txee qhov. Yog tias ib yam khoom zaum hauv 60 hli qhov thiab koj xaj daim ntawv lo nrog lub cev 97.4 hli, koj tuaj yeem hla lub qhov nyob sib ze lossis poob ib txoj hauj lwm los ntawm koj lub phiaj xwm. Tsis tuaj yeem lees txais nruab nrab - xa tawm.
Ua ntej ua tiav qhov kev xaiv loj, ntsuas qhov nqaim tshaj plaws ntawm cov khoom hauv koj lub khw thiab paub meej tias koj xaiv daim ntawv dav dav poob rau hauv qhov chaw ntawd. Qhov no yuav siv sij hawm 30 feeb nrog ib daim kab xev ntsuas thiab tiv thaiv ib qho kev ua yuam kev loj tshaj plaws hauv tag nrho -kho ESL rollouts.
2. Label Qhov siab vs. Cov khoom ntsej muag
Daim ntawv qhov siab txiav txim siab npaum li cas ntawm cov khoom ntawm lub ntsej muag pem hauv ntej yog obscured hauv qab lub txee ntug. Legoyo's 2.13 "daim ntawv lo ntawm 38 mm siab blocks ib feem me me ntawm lub raj mis dej haus. Lub 9.7" daim ntawv lo ntawm 160 mm npog ib feem tseem ceeb.
Rau hauv qab - txee txoj hauj lwm uas cov neeg muas zaub crouch los nyeem cov ntawv kaw- nce, me me yuav ua hauj lwm zoo dua - tsis yog vim qhov tob, tab sis vim hais tias ib tug compact daim ntawv nrog ib tug huv layout yog yooj yim rau parse los ntawm 30 cm dua ib tug loj ib tug packed nrog ntawv nyeem. Sib piv daim ntawv loj npaum li cas cov neeg siv khoom lub cev cuam tshuam nrog lub txee qhov siab, tsis yog los tshuaj ntsuam - qhov loj me.
3. Yuav ua li cas tshwm sim rau koj Daim Ntawv Teev Npe Channel
Nov yog cov lus nug ua ntej-lub sijhawm cov neeg yuav khoom yuav luag ib txwm muaj tab sis tsis tshua nug ncaj qha:Kuv puas yuav tsum tau tshem kuv cov ntawv tam sim no daim ntawv lo ua ntej txhim kho ESLs?Feem ntau, tsis muaj. Legoyo's ESLs yog tsim los rau kev poob-hauv kev teeb tsa nrog xoom hloov chaw hloov pauv - lawv siv cov clip-hauv, sib nqus, peg nuv, thiab nplaum mounts uas ua haujlwm ntawm lossis nrog rau cov tsheb ciav hlau uas twb muaj lawm. Cov pab pawg txhim kho feem ntau tuaj yeem haum rau 500+ cov ntawv sau rau hauv ib qho kev hloov pauv ntawm tus qauv gondola shelving. Qhov twg cov laus los yog tsis yog - cov qauv kev tsheb ciav hlau muaj feem cuam tshuam, lub adapter clip daws kev sib raug zoo yam tsis muaj kev ua haujlwm. Covkauj ruam -los ntawm - kauj ruam qhia ESL installationnpog ob qhov xwm txheej.
Kev Pom Zoo Loj los ntawm Khw Ib puag ncig
Khoom noj khoom haus Supermarkets
Qhov 2.13 "-4.2" ntau yam npog feem ntau ntawm cov khoom noj khoom haus. Rau siab -SKU seem nrog nqaim cov khoom ntsib - condiments, txuj lom, khoom noj txom ncauj, kua ntses - 2.13" lossis 2.66" khaws daim ntawv dav dav hauv qhov muaj. Rau cov khoom siv dav dua xws li cov khoom ntim khoom lossis dej haus, qhov twg tso saib QR code lossis kev tshaj tawm hu xov tooj nrog rau tus nqi tseem ceeb, 4.2 "yog lub khw muag khoom thoob ntiaj teb rau qhov laj thawj zoo: nws haum rau qhov dav tshaj plaws ntawm gondola rail profiles thiab ua rau muaj qhov sib npaug ntawm cov khoom vaj khoom tsev thiab txee ntom ntom.
Cov khw muag khoom noj ESL xa tawm.Cov khw muag khoom yooj yim
SKU ceev yog qis dua lub khw muag khoom, tab sis qhov chaw txee rau ib qho khoom nruj dua. Lub 2.66" ua haujlwm zoo rau feem ntau C-khoom gondola configurations. Ib yam uas surprises thawj zaug -lub sij hawm yooj yim lub khw deployers: vim lub khw hneev taw me me, ib tug wireless access point npog tag nrho cov kev muag khoom pem teb nyob rau hauv yuav luag txhua rooj plaub, yog li kev npaj infrastructure tsawg heev. Qab nthab mounting ua rau tag nrho cov khoom siv wireless tawm ntawm lub rhawv ntawm qhov kev xaiv ntawm ESL 7.Bluetooth vs. Wi-Fi vs. Sub-GHz ESL systemspiav qhia txog kev pab them nqi thiab roj teeb -kev lag luam lub neej-offs.
Cov khw muag tshuaj
Qhov sib txawv tseem ceeb hauv cov chaw muag tshuaj yog daim ntawv dav dav, tsis yog qhov tob. Cov chaw muag tshuaj tuav cov pob blister, raj, thiab chav tsev - cov thawv tshuaj - feem ntau nqaim. Ib daim ntawv lo uas yog technically zoo nyob rau hauv qhov tob yuav tseem tsim ib tug teeb meem yog hais tias nws los ntshav mus rau hauv lub SKU lub qhov nyob sib ze, uas yog tshwj xeeb yog cuam tshuam nyob rau hauv planogram- tswj OTC seem. Qhov 1.53"–2.13" ntau yam yog tus qauv rau siab -cov chaw muag tshuaj qhov ceev; 2.66" ua haujlwm rau qhov dav dua - hom OTC lossis cov khoom siv kho mob. Tshawb xyuas lub cev dav hauvLegoyo lub khw muag khoom ESL catalogua ntej lees paub koj qhov kev txiav txim.
Tshwj xeeb thiab Electronics Retail
Cov txee dav, tsawg SKUs, thiab cov khoom lag luam uas qhia meej meej cuam tshuam rau kev txiav txim siab. Qhov 5.8 "–9.7" ntau yam khwv tau nws cov hneev taw loj dua ntawm no los ntawm kev nthuav tawm cov ntsiab lus lav, cov khoom lag luam specs, thiab QR cov lej nrog rau tus nqi - cov ntsiab lus uas txav tiag tiag suav tias yog kev yuav khoom. Cov khoom dav dav ntsib ntau yam hauv cov khoom siv hluav taws xob thiab cov khoom siv hauv tsev muag khoom txhais tau tias daim ntawv dav dav tsis tshua muaj kev tsis sib haum xeeb hauv cov qauv no.
Txias thiab Frozen Displays
Standard e-ink ESLs ua haujlwm ntawm 0℃txog 40℃. Cov tub yees txias thiab khov yuav tsum muaj lub hom phiaj-tsim qis- qauv ntsuas kub rau −20℃lossis qis dua. Cov no muaj nyob thoob plaws feem ntau ntawm Legoyo tus qauv loj ntau yam thiab siv tib lub clip-hauv kev txuas mus kom ze - tsis muaj qhov hloov pauv yuav tsum tau. Nco ntsoov lees paub qhov ntsuas kub ua haujlwm ua ntej xaj kom txias -chain seem.
Plaub qhov kev txiav txim siab loj uas tsim cov teeb meem tiag tiag
Kev txiav txim los ntawm qhov screen loj yam tsis tau kuaj xyuas daim ntawv lo lub cev dav
Lub vijtsam loj yog qhov ntsuas kab pheeb ces kaum ntawm cov zaub, tsis yog qhov dav ntawm daim ntawv lo lub cev. Qhov sib txawv nam piv txhais tau hais tias 5.8 "daim ntawv lo (155 mm dav) thiab 4.2" daim ntawv lo (97.4 mm dav) muaj qhov sib txawv ntawm lub cev dav txawm tias ob qho tib si yog qhov loj me. Ib txwm muab piv rau daim ntawv lolub cev davtiv thaiv koj cov khoom nqaim tshaj plaws tig ntsej muag ua ntej tso qhov kev txiav txim ntau - tsis yog lub vijtsam kab pheeb ces kaum.
Piv txwv tias tag nrho cov txee rails txais tus qauv ESL clips
Feem ntau gondola shelving ntsia hauv 15 xyoo dhau los yog sib xws nrog cov qauv snaps -hauv ESL clips. Qhov tshwj xeeb yog cov khoom qub qub los ntawm ua ntej ESL saws ua dav dav, lub qhov rooj tub yees, thiab qee lub tsev khaws khoom pallet racking. Kuaj ib qho qauv ntawm koj qhov kev tsheb ciav hlau tshwj xeeb ua ntej lub khw muag khoom - nthuav dav. Nws yog 10-feeb xyuas uas tiv thaiv kev xa tawm- nres teeb meem ntawm hnub teeb tsa - thiab nws yog vim li cas Legoyo pom zoo kom xaj cov qauv ua ntej kev cog lus ntau.
Siv cov ntawv loj loj - hom ntawv nyob hauv qab - txee txoj haujlwm
Qhov teeb meem ntawm cov txee hauv qab tsis yog qhov tob - nws yog nyeem tau. Cov neeg siv khoom crouching saib hauv qab -cov khoom txee pom ib daim ntawv lo ntawm 20–40 cm deb. Daim ntawv loj tuab nrog cov ntawv tshaj tawm yog qhov nyuaj rau kev txheeb xyuas ntawm qhov kev ncua deb tshaj li daim ntawv cog lus nrog lub ntsej muag huv, siab - qhov sib piv tus nqi. Cov ntawv me me nyob hauv qab, loj dua ntawm qhov muag, yog lub hauv paus ntsiab lus teeb tsa uas siv txawm tias koj siv tshuab dab tsi.
Tsis muaj kev npaj rau qhov kawg thiab cov khoom siv txhawb nqa
Ncaj gondola khiav yog ncaj nraim. Endcaps, nkhaus kawg fixtures, thiab freestanding promotional bays tej zaum yuav tsum tau lub kaum sab xis bracketslos yog kev cai mounting kev daws teeb meem uas tsis yog ib feem ntawm tus qauv gondola xaj. Cov no yog ib qho yooj yim los saib xyuas thaum npaj los ntawm kev npaj hauv pem teb. Kev txheeb xyuas lawv thaum lub sij hawm ua ntej - qhov chaw soj ntsuam kev sim ntxiv yuav luag tsis muaj sij hawm los npaj thiab tiv thaiv kev ntxhov siab nruab nrab - kev xa tawm improvisation. Yog koj xav nkag siab
yuav ua li cas ESL systems ua haujlwm kawg - mus rau - kawglos ntawm hardware mus rau software, phau ntawv qhia npog tag nrho cov duab.Ceev Reference: Pom zoo ESL Loj los ntawm Txee hom
| Txee / Yam khoom | Pom zoo Loj | Lub cev qhov tob | Kev txiav txim siab tseem ceeb |
|---|---|---|---|
| Cov khoom noj me me (jars, sachets, spices) | 1.53"–2.13" | 8-10 mm | Daim ntawv lub cev dav yuav tsum nyob hauv qhov khoom |
| Khoom noj khoom haus Standard (cov khoom ntim, dej qab zib) | 2.66"–4.2" | 9-12 hli | 4.2 "muaj widest gondola rail compatibility |
| Pharmacy / OTC (blister packs, tubes) | 1.53"–2.13" | 8-10 mm | Dav yog qhov sib txawv tseem ceeb, tsis yog qhov tob |
| Lub khw muag khoom (cov khoom sib xyaw) | 2.13"–2.66" | 9-11 mm | Tshawb xyuas kev sib tw tsheb ciav hlau; ib qho AP feem ntau npog tag nrho pem teb |
| Tshwj xeeb / electronics / khoom siv hauv tsev | 5.8"–9.7" | 11–16 mm | Siv qhov screen ntxiv rau specs thiab QR cov lej |
| Txias / khov zaub | 2.66"–4.2" (tsawg- qauv temp) | 9-12 hli | Paub meej min. kev khiav hauj lwm temp spec ua ntej xaj |
Ua ntej koj xaj: Tsib -Point Sizing Checklist
- Ntsuas koj cov khoom nqaim tshaj plaws.Koj daim ntawv lo lub cev dav yuav tsum haum rau hauv lub qhov uas tsis muaj sib tshooj.
- Test rail compatibility.Thov ib daim qauv ntawm lub cev thiab muab nws tso rau hauv koj lub txee tshwj xeeb ua ntej muab qhov kev txiav txim ntau.
- Nco ntsoov cov txee qhov siab muaj feem cuam tshuam.Hauv qab- cov chaw txee nyiam cov ntawv me me, huv dua; qhov muag- theem txee tuaj yeem nqa cov ntaub ntawv ntxiv.
- Chij txhua qhov chaw txias los yog khov.Cov no yuav tsum mob siab rau qis- qauv ntsuas kub - paub meej qhov ntsuas kub ua ntej xaj.
- Txheeb xyuas qhov kawg thiab tsis yog - tus qauv fixtures.Cov no yuav xav tau kev cai brackets; yam uas muaj nyob rau hauv koj txoj kev npaj tsav tsheb.
FAQ
Q: Puas yuav cov ntawv txee hluav taws xob thaiv qhov barcode ntawm kuv cov khoom?
A: Tsis yog. ESLs mount rau ntawm txee ntug - pem hauv ntej rail sawb - tsis nyob ntawm cov khoom nws tus kheej. Lub barcode ntawm cov khoom ntim khoom zaum saum toj thiab tom qab daim ntawv lo, pom pom tag nrho. Tsuas yog qhov xwm txheej uas daim ntawv lo siab dhau los ua qhov teeb meem yog tias daim ntawv loj - hom ntawv tau teeb tsa rau ntawm cov khoom luv luv, uas yog vim li cas qhov sib piv daim ntawv siab rau cov khoom loj tseem ceeb - thiab vim li cas cov ntawv me me ua haujlwm zoo dua rau cov khoom me me xws li cov hnab ntim khoom lossis cov pob hlwv.
Q: Kuv puas yuav tsum tau tshem kuv daim ntawv lo nplaum uas twb muaj lawm los nruab ESLs?
A: Feem ntau tsis yog. Legoyo's clip-nyob rau hauv thiab sib nqus mount designs ua hauj lwm nyob rau hauv los yog nrog rau cov uas twb muaj lawm daim ntawv lo rail systems tsis muaj cov cuab yeej los yog cov qauv kev hloov kho. Rau cov laus los yog tsis yog- qauv rail profiles - feem ntau nyob rau hauv cov tub yees los yog ua ntej-2010 gondola fixtures - ib tug adapter clip daws compatibility nyob rau hauv feem ntau. Saib tag nrho cov txheej txheem hauv Legoyo's ESL phau ntawv qhia kev teeb tsa.
Q: Ntev npaum li cas cov ntaub ntawv txee hluav taws xob tau tawm ntawm lub txee ntug?
A: Legoyo's e-ink ESLs zaum 8–16 mm tob nyob ntawm qhov loj. 2.66 "thiab 4.2" qauv - feem ntau deployed - protrude 9-12 mm. Ib qho qauv yas daim ntawv lo nrog ib daim ntawv ntxig yog feem ntau 10-14 hli, yog li ESLs sib piv thiab feem ntau ntiav ib zaug thaum daim ntawv tawm.
Q: Puas yog qhov chaw nkag wireless siv qhov chaw ntawm lub txee?
A: Tsis yog. Qhov chaw nkag mus rau ntawm lub qab nthab lossis siab ntawm phab ntsa, tsis yog ntawm cov khoom txee. Rau feem ntau me me thiab nruab nrab - cov khw muag khoom loj, ib lossis ob lub ntsiab lus nkag mus rau tag nrho cov khoom muag. Tus qauv wireless uas koj xaiv cuam tshuam txog kev them nyiaj ntau thiab roj teeb ua haujlwm - peb phau ntawv qhia rau Bluetooth vs. Wi-Fi vs. Sub-GHz ESL systems piav qhia txog kev lag luam tawm - tawm.
Q: Puas muaj ESLs tsim rau cov tub yees txias?
A: Yog. Lub hom phiaj-tsim qis-kub e- number case ESLs muaj nyob rau hauv feem ntau cov qauv loj thiab ntsuas rau −20℃lossis qis dua. Lawv siv tib lub clip- nyob rau hauv mounting li ambient- qauv kub, yog li tsis muaj kev hloov kho txee. Paub meej tias qhov ntsuas kub ua haujlwm yam tsawg kawg nkaus thaum xaj kom txias -chain seem - nws txawv ntawm tus qauv.
Q: Qhov luaj li cas kuv yuav tsum thov ua tus qauv?
A: Pib nrog 4.2" - nws yog qhov loj tshaj plaws siv thoob ntiaj teb thiab sib haum nrog feem ntau ntawm cov txheej txheem gondola rail systems. Yog tias koj lub khw muaj cov ntu tseem ceeb ntawm nqaim -cov khoom txee (khoom muag, tshuaj pleev ib ce, txuj lom aisle), kuj thov ib qho 2.13" lossis 2.66" 7} tus qauv ntawm koj ib sab siv tsib feeb thiab yuav teb txhua lo lus nug ib daim ntawv spec tsis tuaj yeem thov cov qauv ncaj qha los ntawm Legoyo ntawm no.
