Electronic Shelf Labels (ESLs) tau hloov pauv li cas cov khw muag khoom tswj hwm tus nqi. Cov txheej txheem kev teeb tsa txiav txim siab seb lub khw puas tau txais kev sib tw lossis tau txais lub nra hnyav.
System Architecture Fundamentals
Ib qho ESL system muaj plaub yam sib koom ua ke. Kev nkag siab txog lawv txoj kev sib raug zoo tiv thaiv kev ua yuam kev uas cov pab pawg ua ntau zaus.

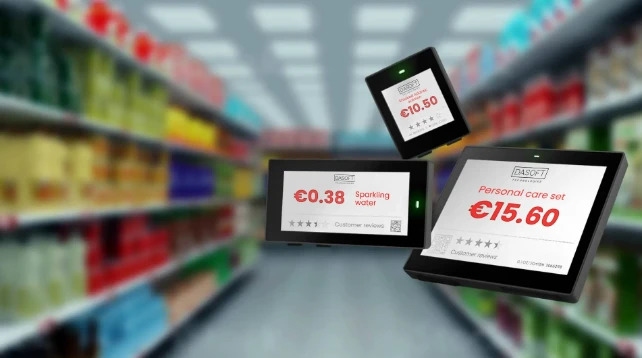

Electronic Labelsntiav electrophoretic zaub technology. Microcapsules uas them cov xim dub thiab dawb tsiv mus nyob rau hauv qhov siv hluav taws xob, tsim cov duab ruaj khov uas tsis muaj zog. Qhov physics no ua rau lub roj teeb lub neej ntev li 3-5 xyoos raws li kev ua haujlwm ib txwm muaj-Hanshow's Nebular series tsis tu ncua tsoo lub cim 5 xyoo, thaum qee cov peev nyiaj hauv Suav tuam txhab lag luam nyuam qhuav ua rau 2.5 xyoo. Qhov ntau thiab tsawg ntawm cov zaub yog li ntawm 1.54 ntiv tes rau cov txheej txheem txee rau 12.2 nti rau qhov kawg-cap promotions.

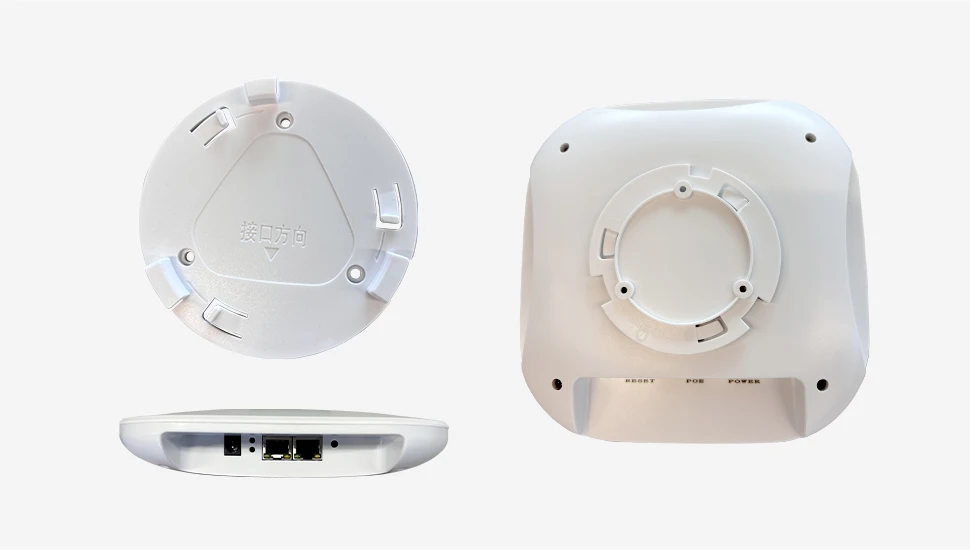

Chaw nres tsheb hauv paus (Access Points)txuas lub network infrastructure thiab wireless daim ntawv lo sib txuas lus. SES-imagotag's VUSION system ua haujlwm ntawm 2.4GHz, thaum Pricer siv lub tswv yim infrared / RF hybrid hauv qee cov qauv. Txhua lub chaw nres tsheb hauv paus tswj hwm ntau pua mus rau ntau txhiab daim ntawv sau npe nyob rau hauv nws lub vojvoog kev pab cuam -SES-imagotag thov 15,000 rau ib qho chaw nkag, tab sis tus lej tiag tiag yog 2,000-3,000 nyob rau hauv ib puag ncig khw muag khoom ntom ntom ua ntej cov nqi poob qis pib tshwm sim.
Management Serverexecutes ESL software pawg. Nws tuav cov khoom database, renders tso saib templates, queues hloov tshiab commands, thiab cav system txheej xwm. Kev xa tawm huab tau txhim kho tau zoo hauv peb lub xyoos dhau los. Rau feem ntau cov khw muag khoom hauv qab 10,000 daim ntawv lo, huab tam sim no yog qhov kev pom zoo.

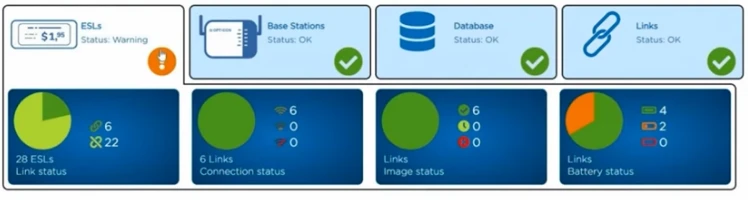

Management Softwaremuab cov kev tswj interface rau daim ntawv sau npe, qauv tsim, cov ntsiab lus teem caij, thiab kev saib xyuas lub cev. API qhov zoo sib txawv ntawm cov neeg muag khoom. Tus nqi API cov ntaub ntawv zoo heev. SES-imagotag's tau txhim kho tab sis tseem muaj qhov khoob. Qee tus neeg muag khoom me me muaj APIs uas xav zoo li kev xav tom qab.
Site Survey: Lub hauv paus ntawm kev txhim kho tau zoo
Raws li kev tshawb fawb xyoo 2022 los ntawm Retail Industry Leaders Association, qhov chaw tshawb fawb tsis txaus ua rau kwv yees li 60% ntawm ESL xa mus ua tsis tiav yuav tsum tau ua haujlwm tseem ceeb.
Yuav tsum muaj kev soj ntsuam nrujpeb teev yam tsawg kawg nkausrau 2,000-square-meter khw.

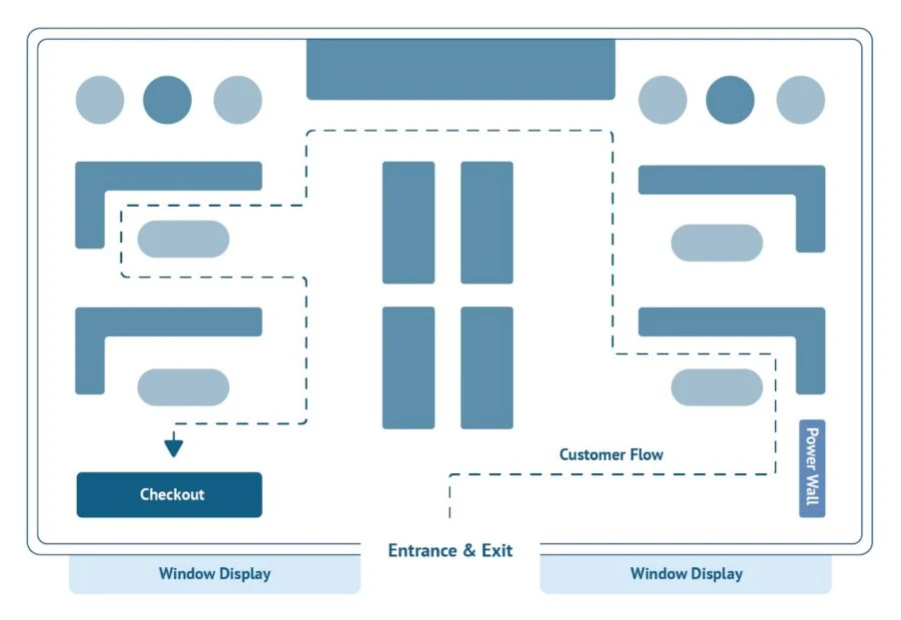

Kev ntsuas lub cev ib puag ncig
Cov ntaub ntawv hauv pem teb
Tau los yog tsim cov phiaj xwm hauv pem teb uas qhia txog qhov chaw txee, kev taw qhia, qhov siab, thiab cov khoom siv. Cov ntaub ntawv yuav tsum muaj xws li cov tub yees qhov chaw thiab hom, cov kab ke thiab cov phab ntsa, qab nthab qhov siab hloov pauv, thiab cov khoom siv hluav taws xob thiab network uas twb muaj lawm.
Cov phiaj xwm hauv pem teb muab los ntawm lub khw yuav tsum tau txheeb xyuas. Ib qho kev teeb tsa Kroger hauv Ohio tau muab cov phiaj xwm hauv pem teb uas muaj plaub xyoos thiab tsis tau pom qhov ua tiav cov tub yees kom kho dua tshiab. Cov chaw nres tsheb hauv paus yuav tsum tau rov npaj dua rau hnub ob ntawm kev teeb tsa. Qhov xwm txheej ntawd zam tau nrog kev txheeb xyuas kom raug.
Txee Classification
Txhua hom shelving coj txawv txawv rau RF signals, thiab kev nkag siab txog dab tsi muaj nyob hauv lub khw yog qhov tseem ceeb ua ntej xaj khoom kho vajtse.
Standard hlau gondolas-cov khob cij thiab butter ntawm cov khw muag khoom feem ntau- ua rau muaj teeb meem qis qis. Rail clips ua haujlwm zoo ntawm no; Pricer's K-series clips thiab SES-imagotag's SmartTAG clips tau pom tias muaj kev vam meej.Hlau pob tawb shelvingyog qhov ua tau yooj yim dua rau kev ua haujlwm nrog txij li qhov qhib tsim tsim tsawg RF cuam tshuam. Hook adapters muaj txiaj ntsig, txawm hais tias muaj teeb meem kev vibration tuaj yeem tshwm sim hauv siab - cov chaw tsim khoom lag luam uas cov neeg siv khoom niaj hnub rub cov khoom.
Cov iav tso saibyog ncaj nraim -tsis tshua muaj attenuation, thiab cov nplaum los yog sib nqus mounting ua haujlwm. 3M VHB daim kab xev yog qhov zoo dua rau kev teeb tsa mus tas li vim nws tsis hloov lub sijhawm.Cov tub yees nrog kaw qhov rooj-qhov no yog qhov kev teeb tsa uas ua rau qhov project tsis ua haujlwm. Qhov hnyav attenuation tshwm sim los ntawm cov iav thiab hlau framing. Sab nraud magnetic mount nkaus xwb. Kev tso chaw sab hauv yuav tsum tsis txhob sim txawm hais tias tus neeg muag khoom lees paub. Kev poob qis yog ib txwm tsis lees txais nrog kev tso kawm sab hauv.
Lub Freezer unitstseem phem dua. Tsis pom zoo muab tso rau sab hauv. Lub sijhawm. Kev sim nrog ntau yam extensioners, tshwj xeeb kav hlau txais xov, thiab repositioning tsis tau ua kom ntseeg tau tau. Mount externally los yog tsis mount kiag li.
RF Environment Analysis
Document tag nrho 2.4GHz emitters. Cov ntsiab lus nkag WiFi yog qhov pom tseeb - kaw cov haujlwm channel. Tab sis tsis txhob hnov qab Bluetooth beacons (ntau ntau ntxiv rau cov neeg siv tshuaj ntsuam xyuas), lub koob yees duab kev ruaj ntseg wireless, microwave ncu hauv chav so, thiab IoT sensors.
Qee lub teeb pom kev zoo LED-tshwj xeeb tshaj yog cov ntse / txuas nrog- tsim kom muaj suab nrov txaus 2.4GHz los ua kom muaj kev cuam tshuam tsis tu ncua. Ib Lub Hom Phiaj lub khw muag khoom yuav tsum muaj ob hnub ntawm kev daws teeb meem ua ntej kev sib raug zoo nrog lawv cov teeb pom kev zoo tshiab tau txheeb xyuas. Tshawb xyuas txhua yam.
Txoj hauv kev hauv phau ntawv qhia muaj xws li kev poob kev suav nrog cov qauv zoo li PL(d)=PL(d₀) + 10n log₁₀(d/d₀) + Xσ. Hauv kev xyaum, cov kev cai ntxhib ntawm tus ntiv tes xoo yog kawm thiab tom qab ntawd ua tiav nrog kev sim. Hlau gondolas txiav ntau yam rau tej zaum 12-15 meters ib lub hauv paus chaw nres tsheb. Nyob ze lub tub yees, txiav qhov ntawd hauv ib nrab. Tom qab cov ncej pob zeb, kab - ntawm - pom lossis qhov chaw nres tsheb tshwj xeeb yog xav tau. Qhov kev sim taug kev- tau them tom qab-yog qhov tseeb qhia tias kev pab them nqi puas ua haujlwm.
Label Quantity Planning
Suav SKUs ib kab 'meter' ntawm qhov chaw txee rau txhua chav haujlwm. Khoom noj khoom haus feem ntau khiav 8-12 SKUs ib 'meter'. Kev noj qab haus huv thiab kev zoo nkauj yog nyob thoob plaws qhov chaw- cov khw muag tshuaj tus qauv yuav yog 15-20, tab sis Sephora-style zaub tuaj yeem ntaus 40+. Electronics khiav qis ntawm 3-6 ib meter. Cov khaub ncaws zoo sib xws ntawm 4-8.
Muab faib los ntawm tag nrho cov txee ntev rau ib chav haujlwm. Ntxiv5% kev tiv thaivrau kev nthuav qhia cov khoom tshiab-los yog10%yog tias tus neeg muag khoom pheej hloov cov phiaj xwm ntau zaus.
Rau kev faib khoom loj, feem ntau kev xa tawm mus txog ib puag ncig60-70% cov ntawv me (1.54 "), 15-20% nruab nrab (2.13 "), thiab qhov seem cais ntawm 2.9 "thiab qhov loj dua. Cov khw muag khoom tsis tu ncua underorder 2.9" loj pib, ces rov qab los ntxiv. Kev tshaj tawm nthuav tawm tsav cov npoo, thiab cov thawj coj hauv khw xav tau cov ntawv loj dua rau cov chaw ntawd. Nyiaj txiag raws li.
Network Infrastructure
Base Chaw Nres Nkoj Quantity
Theoretical kev pab them nqi nyob rau hauv qhov chaw dawb yog 25-30 meters. Tus lej ntawd tsis muaj txiaj ntsig hauv lub khw tiag. Nrog hlau shelving qhov tseeb ntau yog10-15 m. Cov chaw tub yees poob rau5-8 m.
Qhov tseeb xam tsis nyuaj. Faib hauv pem teb rau hauv ib cheeb tsam los ntawm kev thaiv hom, siv qhov tseeb qhov hluav taws xob qhov hluav taws xob rau txhua cheeb tsam, suav nrog cov chaw nres tsheb uas xav tau, tom qab ntawd ntxiv20% rov ua dua. Qhov kev rov ua dua ntawd yog qhov ua kom muaj txiaj ntsig zoo dua li 99% thiab tiv thaiv kev hu xov tooj thaum hmo ntuj thaum lub chaw nres tsheb tuag.
Lub khw muag khoom noj 2,000 square meter tau tawg zoo li qhov no: qhov chaw yuav khoom tus qauv siv li 1,400 square metres thiab xav tau 4 lub hauv paus chaw nres tsheb. Cov tub yees seem ntawm 400 square meters yuav tsum tau 3 lub hauv paus chaw nres tsheb vim qhov txo qis. Ib qhov chaw me me siab -cov tshuaj pleev ib ce ntom ntom yuav tsum tau siv nws lub hauv paus chaw nres tsheb. Tag nrho tuaj rau 8, thiab nrog redundancy qhov kev txiav txim yog rau 10.
Tus neeg muag khoom-SES-imagotag nyob rau hauv cov ntaub ntawv no- tau hais 6. Lawv tsis yog qhov yuam kev los ntawm qhov kev pom zoo ntawm kev pabcuam dawb huv. Tab sis 6 lub hauv paus chaw nres tsheb yuav tau xa tej zaum 97% refresh tus nqi. Kev xa tawm 10-unit mus tas li hits 99.5%+. Qhov 2.5% qhov sib txawv txhais tau rau 75 daim ntawv tsis hloov kho rau hnub so muag hauv 3,000-label khw. Tus nqi kho vajtse ntxiv yog tsim nyog.
Qhov chaw
Mount nruab nrab3.0-4.0 msaum pem teb. Tsawg tshaj li qhov ntawd thiab cov txee thaiv thaiv tua cov kev pabcuam. Siab dua thiab teeb liab lub zog mus rau hauv qab - cov ntawv txee poob lawm - uas feem ntau siab -SKUs uas xav tau kev hloov kho tshiab.
Kab rov tav, txoj hauj lwm ntawm txoj kab kev sib tshuam uas pom cov kab pom tseeb nyob hauv ntau cov lus qhia. Tsis txhob mount ncaj qha saum lub tub yees. Lub compressor cuam tshuam ib leeg yuav ua teeb meem.

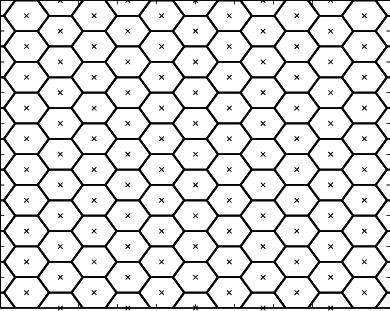

Muab tso rau hauv ahexagonal kab sib chawstsis yog square. Lub hlwb hexagonal muab kwv yees li 13% zoo dua thaj chaw nrog rau tib lub hauv paus chaw nres tsheb suav. Qhov no tau ntsuas los ntawm ntau qhov kev xa tawm.
Hloov thiab Cable

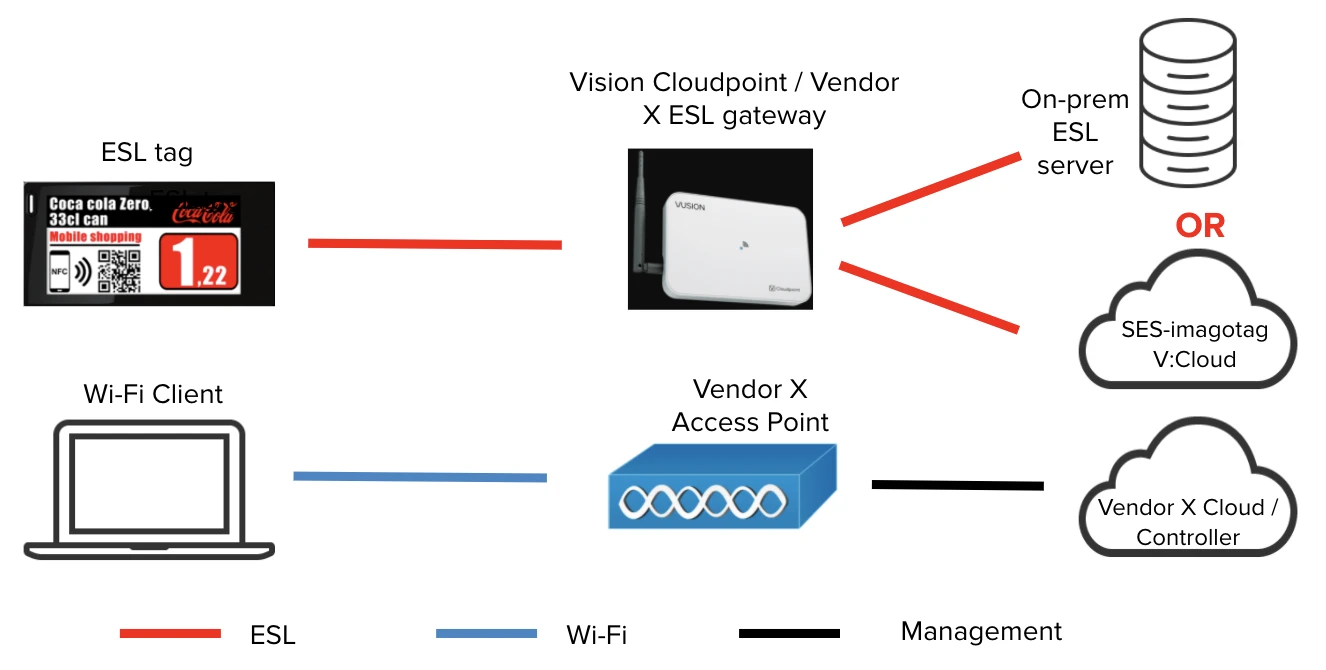

PoE + keyboardsyog yuav tsum tau-802.3at nrog tsawg kawg yog 25.5W ib qhov chaw nres nkoj. Siv gigabit, tsis Fast Ethernet. Cov duab cov ntaub ntawv rau cov ntawv loj dua yuav ua rau muaj kev cuam tshuam ntawm 100Mbps txuas. Tau txais kev hloov pauv tswj hwm rau VLAN segmentation thiab QoS. Chaw nres nkoj suav yuav tsum yog lub hauv paus chaw nres tsheb suav ntxiv rau 30% headroom rau yav tom ntej nthuav dav.
Rau cable,Cat6 lossis 6A shielded, 90 meters siab tshaj plaws khiav ib TIA-568, khaws 30cm sib cais los ntawm lub hwj chim cables ntawm parallel khiav. Siv cov kav dej los yog cov tais hluav taws xob, tshwj xeeb tshaj yog nyob rau hauv cov khw muag khoom uas pom lub qab nthab. Tsis muaj qhov no yog ESL- tshwj xeeb-nws yog tus qauv kev teeb tsa zoo hauv network.
Kev teeb tsa Base Station

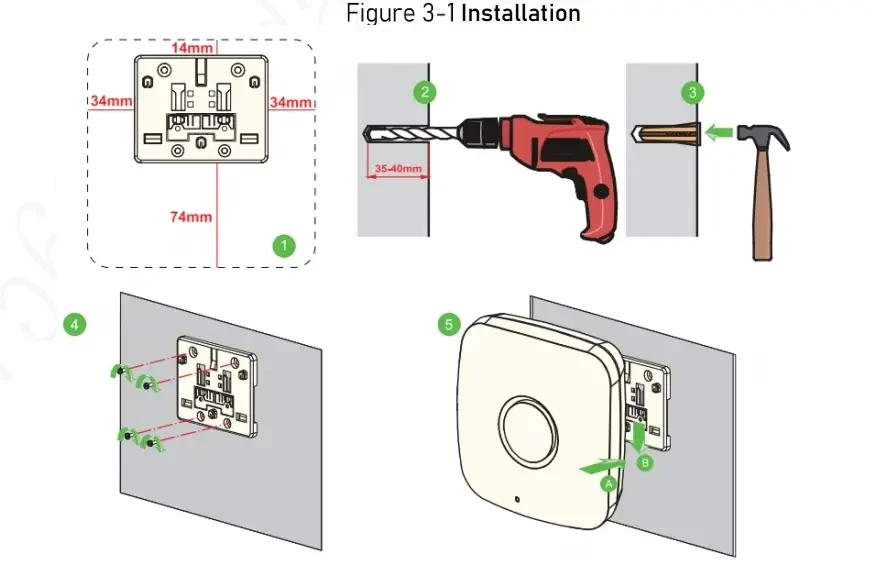

Yuav tsum tau cov cuab yeej thiab cov khoom siv
Lub zog laum nrog rauj muaj nuj nqi, 8 hli masonry khoom (nqa spares vim qab nthab pob zeb noj cov), cable crimping cuab tam, cable tester, laser nrug ntsuas, qib ntsuj plig, torque ntswj ntsia hlau. Rau cov khoom siv: tus neeg muag khoom- muab cov hlua txuas (tsis hloov), nthuav dav thauj tog rau nkoj, Cat6 thaj cables nyob rau hauv ntau qhov ntev, UV- tiv thaiv cable ties, thiab cable daim ntawv lo.
Cov ntawv cable tsis yog xaiv tau.
Installation txheej txheem
Hloov chaw nres tsheb hauv paus tswj xyuas los ntawm kev npaj mus rau qhov chaw lub cev siv lub laser nrug ntsuas. Kos mounting qhov. Nqa cov duab ntawm theem no-thaum tus neeg siv khoom nug yog vim li cas lub chaw nres tsheb hauv paus nyob rau hauv ib qho chaw tshwj xeeb rau lub hlis tom qab, cov ntaub ntawv khaws cov lus sib cav.
Laum qhov, ntxig anchors, ruaj ntseg brackets, txheeb xyuas theem, torque rau spec (feem ntau 2-3 Nm rau M6 rau hauv anchors). Route network cable los ntawm PoE hloov mus rau txhua txoj haujlwm, tawm hauv 1-meter kev pabcuam loops ntawm txhua qhov kawg. Ruaj ntseg cables ntawm 1-meter ib ntus thiab sau ob qho kawg.
Kuaj txhua lub cable khiav ua ntej mounting lub hauv paus chaw nres tsheb.Txiav nrog RJ45 raws li T568B tus qauv, tom qab ntawd sim rau kev txuas ntxiv thiab tus pin txoj haujlwm. Cov ntaub ntawv tshwm sim.
Thaum cov cables raug txheeb xyuas, txuas mus rau lub hauv paus chaw nres tsheb, mount rau bracket, txheeb xyuas lub zog LED teeb pom kev zoo rau kev sib tham PoE. Sau qhov chaw nyob MAC thiab lub cev qhov chaw. Chav tsev yuav tsum tshwm sim hauv kev tswj software hauv 60 vib nas this. Yog tias nws tsis yog, xyuas qhov kev txiav tawm cable ua ntej-90% ntawm lub sijhawm uas yog qhov teeb meem, tsis yog lub tsev tsis raug.
Label Installation
Ua ntej-Kev Npaj Kev Txhim Kho
Cov ntawv sau nkoj hauv kev pw tsaug zog sib sib zog nqus. Kev ua kom nws txawv ntawm cov chaw tsim khoom thiab qhov no tau ua rau lub sijhawm nkim ntau dua li yuav luag txhua qhov teeb meem.SES-imagotagsiv lub khawm nias- tuav lub khawm recessed 3-5 vib nas this kom txog rau thaum LED flashes.Tus nqicov ntawv sau npe pib-tso tseg thaum lawv pom cov teeb liab chaw nres tsheb uas siv tau.Hanshowfeem ntau siv lub roj teeb tab tshem tawm.Solumyuav tsum muaj kev sib nqus ua kom dhau mus rau thaj tsam sensor.
Txoj kev ua kom yuav tsum paub ua ntej hnub teeb tsa. Cov pab pawg tau nkim sij hawm vim tsis muaj leej twg thab los nyeem cov txheej txheem ua ntej ua ntej.
Batch sau npeyog tsim nyog rau lub sij hawm teem. Export serial tooj los ntawm shipping cov ntaub ntawv, ntshuam mus rau hauv kev tswj software, ua ntej - muab rau qhov chaw codes. Qhov no txiav ib lub sijhawm -label installation los ntawm kwv yees li 40%. SES-imagotag's bulk import ua haujlwm zoo. Hanshow yuav tsum tau tshwj xeeb CSV formatting uas tsis muaj ntaub ntawv zoo - hu rau lawv cov kev txhawb nqa rau cov qauv yog tias tus qauv ntshuam cuam tshuam qhov yuam kev.
Kev khi txoj kev
Rau kev npaj xa tawm nrog ua ntej - txoj haujlwm tau muab,sequential khiua haujlwm zoo. Tus kws kho mob mus rau txoj haujlwm tsim, tshuaj xyuas daim ntawv lo barcode, qhov system lees paub qhov ua ntej - muab khi, cov kws tshaj lij mounts, cov kab ke hloov tshiab. Cov kws tshaj lij txhim kho ntaus 80-100 daim ntawv lo rau ib teev li no.
Tiag tiag - sij hawm khiua rau kev txiav txim siab thaum cov phiaj xwm tsis tiav. Luam theej duab cov khoom barcode ntawm txee, luam theej duab daim ntawv lo barcode, system tsim kev khi ntawm ya. qeeb ntawm 50-70 daim ntawv lo rau ib teev, tab sis qee zaum tsim nyog.
Kev khi ntauntawm CSV upload yog ceev tshaj thaum muaj cov ntaub ntawv huv. Xyuas kom meej ua ntej upload.
Lub cev Mounting
Feem ntau ntawm cov khw muag khoom txee siv C-channel lossis T- channel rails ntawm txee ntug. Cov txheej txheem sib xws yogSIB 39(39mm qhov siab, ib txwm nyob hauv European hypermarkets zoo li Carrefour),HLB 30(30 hli, feem ntau nyob rau hauv North American khoom noj), thiab ntau yam ntaub ntawv Sawb dav nyob rau hauv warehouse retails. Muab cov clip rau hauv qhov profile, ntxig cov tabs rau hauv txoj kev tsheb ciav hlau qhib, siv lub zog downward thaum zawv zawg rau pem hauv ntej, tso tawm. Caij nplooj ntoos hlav nro locks nws nyob rau hauv qhov chaw. Txheeb xyuas daim ntawv lo tiv thaiv kab rov tav zawv zawg- cov neeg siv khoom yuav tsoo cov no tas li.
Rau cov hlau qhov chaw uas tsis muaj cov ntsia hlau, los yog sab nraud mounting ntawm cov tub yees,sib nqus mountsua hauj lwm los ntawm iav txog li 6 hli thickness. Qhov no yog li cas kaw cov tub yees txias tau daws. Ntxuav qhov chaw nrog isopropyl cawv ua ntej.
Adhesive mountingntawm iav, yas, lossis ntoo yog qhov tseem ceeb nyob ruaj khov . 3M VHB daim kab xev tsim kev lag luam- cov ntawv cog lus muaj zog. Kev tshem tawm yuav tsum muaj rab phom cua sov thiab cov kua nplaum nplaum, thiab qhov kev puas tsuaj saum npoo yuav zoo li qub. Xyuas kom tus neeg siv nkag siab qhov no ua ntej siv cov nplaum.
Installation Sequence
Ua kom tiav tag nrho cov ntawv sau rau hauv ib qho chaw nres tsheb hauv cheeb tsam kev pab them nqi ua ntej tsiv mus rau lwm qhov. Qhov no tso cai rau kev txheeb xyuas tam sim thiab tiv thaiv cov neeg teeb tsa los ntawm kev tsim RF duab ntxoov ntxoo uas thaiv kev hloov tshiab rau cov ntawv uas twb tau teeb tsa lawm.

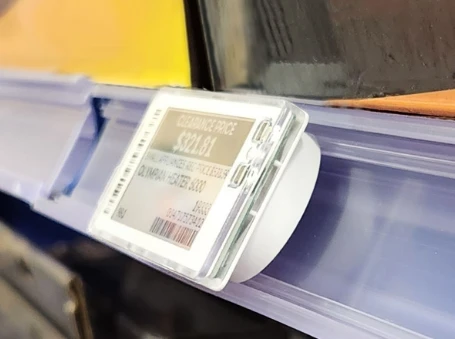

Kev txiav txim ua ntej:lub kaus mom kawg thiab kev tshaj tawm ua ntej (qhov pom tau siab tshaj plaws, kev tswj hwm lub khw muag khoom no), cov chaw ua haujlwm ib puag ncig thib ob (ntev cable ntev tshaj plaws, ntes cov teeb meem kev tsim kho thaum ntxov), lub khw muag khoom gondolas thib peb (qhov siab tshaj plaws, feem ntau rov ua dua), cov chaw tshwj xeeb kawg (txuag lub tshuab ua kom txias txias ua haujlwm rau thaum pab pawg muaj suab nrov).
Rau kev xa tawm ntau dua 3,000 daim ntawv lo, pab pawg tsim teeb meem. Ib tus neeg saib xyuas kev tswj hwm kev ua haujlwm thiab tuav tswj kev sib txuas lus hauv khw. Ob tug neeg ntawm scanning/binding nrog mobile pab kiag li lawm. Plaub installers ua lub cev mounting. Ib tus neeg pov thawj lees paub qhov tseeb thiab cov ntaub ntawv teeb meem. Qhov no configuration sustains400-500 daim ntawv ib teev. Cov pab pawg muaj kev paub tuaj yeem ntaus 600+, tab sis tsis txhob siv nyiaj rau qhov kev sib tw ntawd.
System Configuration
Hloov kho ncua sijhawm
Qhov no yog lub roj teeb lub neej piv rau kev lag luam teb -tawm.
Kev teeb tsa txhua yam hloov tshiab txhua ob peb feeb suab zoo kom txog thaum cov ntawv hloov pauv tom qab 18 lub hlis tsis yog 4 xyoo. Ib daim ntawv qhia tshiab txhua 5 feeb depletes roughly8x ceevtshaj ib qho ntawm 2-teev voj voog. Ib lub khw muag khoom noj tau teeb tsa lawv lub chaw tsim khoom tag nrho rau 5-feeb hloov tshiab vim tias cov nqi hloov pauv ntau zaus, ces yuav tsum tau hloov 400 daim ntawv lo rau ob xyoos tom qab.
Qhov kev xav tau yooj yim: siv1-2 teev ib ntusraws li default rau feem ntau cov khoom. Txav mus rau15-30 feeb hloov tshiabrau pawg nrog cov nqi hloov pauv tsis tu ncua xws li cov khoom lag luam lossis cov khoom lag luam sib tw. Khaws qhov txhoj puab heev1-5 feeb kev teeb tsarau cov SKUs tshwj xeeb thaum lub sijhawm tshwj xeeb tshaj tawm, tsis yog txoj cai daim pam.
Kev xaiv Channel
Lub 2.4GHz band muaj 14 raws, tab sis tsuas yog1, 6, thiab 11tsis yog - sib tshooj hauv cheeb tsam FCC. Tshawb xyuas qhov kev xa tawm WiFi uas twb muaj lawm thiab xaiv ESL raws kom txo qis kev sib tshooj. Yog tias WiFi nyob rau ntawm tshooj 1 thiab 6, muab ESL rau 11. Feem ntau cov lag luam WiFi tshuab tuaj yeem hloov kho tau- koom tes nrog pab pawg neeg siv khoom IT es tsis yog ua haujlwm nyob ib puag ncig lawv.
Pib kis tau tus mob ntawm nruab nrab (10-15 dBm). Nce tsuas yog tias qhov kev pab them nqi txuas mus ntxiv tom qab tso qhov kev ua kom zoo. Mus siab dua yuav cuam tshuam nrog lwm cov 2.4GHz systems nrog rau lub khw tus kheej WiFi.

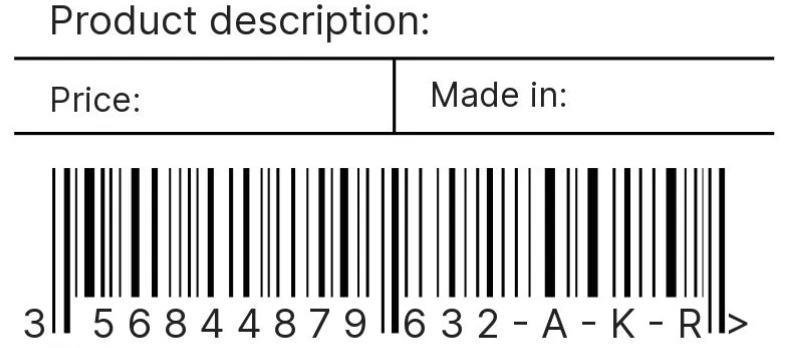

Tus Qauv Tsim
Nqe yuav tsum yog qhov loj tshaj plaws -yam tsawg kawg nkaus 48-point fontrau kev nyeem ntawv ntawm 1 meter nrug. Khoom npe thib ob. Barcode loj rau kev txhim khu kev qha scanning,yam tsawg kawg 80% magnificationrau EAN-13. Chav ntsuas tus nqi raug cai hauv EU thiab ntau lub xeev Asmeskas, yog li xyuas cov kev cai hauv zos. Cov chij txhawb nqa xav tau cov xim sib txawv ntawm peb cov xim; Nco ntsoov tias liab renders li grey ntawm cov ntawv monochrome, yog li tsim raws li.
Kev koom ua ke
Ob txoj hauv kev los txuas rau kev lag luam.Push qauvmuaj ERP lossis POS xa cov nqi hloov tshiab ntawm API thaum muaj kev hloov pauv -tiag - lub sijhawm synchronization tab sis yuav tsum tau hloov kho qhov system.Rub tus qauvmuaj cov lus nug ESL server ntawm lub sijhawm- yooj yim dua rau kev siv tab sis qhia txog kev lag luam ntawm tus nqi hloov pauv thiab hloov kho daim ntawv lo.
Rau cov khoom noj khoom haus thiab cov khoom siv hluav taws xob uas cov nqi hloov pauv ntau zaus, thawb yog tsim nyog rau kev sib koom ua ke. Rau cov nqi ruaj khov ib puag ncig zoo li cov khw muag khoom kho vajtse, rub ua haujlwm zoo.
Direct database kev twb kev txuaskuj yog ib qho kev xaiv - nug cov khoom lag luam rau cov ntaub ntawv hloov kho txij li qhov kawg sync. Ib txwm txuas mus rau lub replica, tsis ntau lawm. Cov lus nug ESL sau tsis zoo tau coj mus rau POS system thaum lub sijhawm Dub Friday ntawm ib qho kev teeb tsa.
Qhov tiag API hu thiab database queries yog ncaj nraim REST posts thiab SQL xaiv. Qhov kev sib tw yog cov ntaub ntawv zoo thiab kev ua yuam kev, tsis yog kev sib koom ua ke ntawm nws tus kheej.
Kev xeem thiab validation

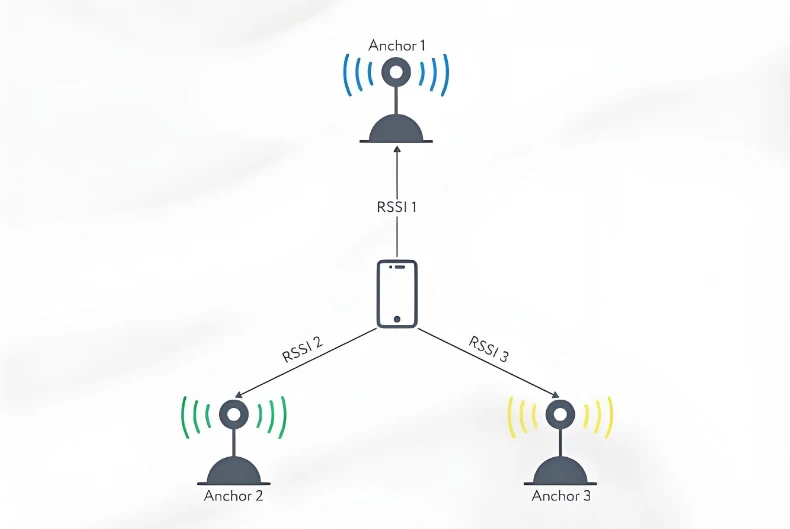

Taug kev xeem
Muab cov ntawv xeem ntsuas thoob plaws hauv lub khw, suav nrog cov haujlwm ntawm thaj tsam kev tiv thaiv- kawg ntawm txoj kab, cov ces kaum, tom qab tus ncej, ze thiab sab hauv cov tub yees. Ua ib txhij hloov tshiab rau tag nrho cov ntawv xeem. Ib daim ntawv lo tsis hloov tshiab li ntawm 5 feeb qhia tias muaj qhov sib txawv. Kho cov no ua ntej yuav mus.
Yog xav paub ntxiv txog kev txheeb xyuas, siv cov cuab yeej tshawb fawb RF lossis ESL cov txheej txheem tsim - hauv kev kuaj mob los qhia txog lub zog ntawm cov teeb liab. Txais RSSI yog-70 dBm lossis siab dua. Nruab nrab ntawm -70 thiab -80 dBm yog marginal- nws yuav ua haujlwm tab sis xav tias qee zaus ua tsis tiav. Tsis muaj zog dua -80 dBm yog qhov tsim nyog. SES-imagotag qhia ib-label RSSI hauv lawv qhov kev kuaj mob. Hanshow xav tau cov cuab yeej tshawb fawb cais.
Kev Xeem Ua Haujlwm
Khiav tag nrho -kho tshiab. Lub hom phiaj metrics:99% kev vam meej ntawm thawj zaug sim, 99.9% tom qab tsis siv neeg rov sim dua, ua tiav hauv 15 feeb rau cov khw muag khoom hauv qab 5,000 daim ntawv lo. Yog tias cov lej no tsis raug ntaus, muaj teeb meem kev pab cuam, teeb meem cuam tshuam, lossis kho vajtse puas. Tsis txhob kos npe tawm mus txog thaum muaj cov theem pib.
Rub tus qauv 5% random thiab txheeb xyuas cov nqi tso tawm kom haum rau qhov system.Zero tolerance rau qhov tsis sib xws.Ib qho kev tsis sib haum xeeb qhia tias kev sib khi ua yuam kev lossis kev sib koom ua ke tsis ua haujlwm.
Rau kev ntsuam xyuas kev ntxhov siab, simulate qhov muag muag los ntawm kev hloov kho 50% ntawm cov ntawv ib txhij. Xyuas kom tseeb tias lub kaw lus nyob twj ywm thiab cov txheej txheem queue huv si. Kuj sim ua tsis tiav-txiav ib lub hauv paus chaw nres tsheb thaum lub sijhawm hloov pauv hloov tshiab thiab paub meej tias cov ntawv cuam tshuam tuaj tos cov kev pab cuam los ntawm cov tsev nyob ib sab. Qhov no ua pov thawj tias 20% redundancy ua tau tiag tiag.
Thaum Tej Yam Tsis Zoo
Cov teeb meem no tshwm sim ntau zaus.
Cov ntawv tsis teb:yog tias LED tsis flashes, lub roj teeb tsis tau qhib ua haujlwm - rov ua dua qhov ua kom ua tiav. LED flashes tab sis tsis muaj kev hloov pauv txhais tau hais tias daim ntawv lo tej zaum yuav tawm ntawm qhov ntau. Ib nrab lossis garbled zaub hloov tshiab taw qhia rau RF cuam tshuam - sim sib txawv thiab yos hav zoov rau kev sib tw 2.4GHz qhov chaw. Cov ntsiab lus qub uas yuav tsis hloov tshiab yog yuav luag ib txwm muaj teeb meem hauv kev tswj hwm software.
Base chaw nres tsheb teeb meem:tsis muaj hwj chim LED txhais tau tias PoE tsis sib tham -xyuas qhov chaw nres nkoj hloov tau txhawb PoE + thiab xyuas cov cable txiav. Lub hwj chim tab sis tsis muaj kev sau npe software yog kev teeb tsa hauv lub network - IP assignment, firewall rules, VLAN settings. Kev tsis sib haum xeeb nyob rau hauv ib cheeb tsam qhia txog kev tiv thaiv ciam teb los ntawm lub hauv paus chaw nres tsheb. Tag nrho cov ntawv nyob rau hauv ib cheeb tsam ua tsis tau ib txhij feem ntau txhais tau hais tias lub hauv paus chaw nres tsheb nws tus kheej tuag.
System- theem teeb meem:kev hloov tshiab queuing tab sis tsis ncav cov ntawv qhia txog kev sib txuas lus ntawm cov neeg rau zaub mov thiab cov chaw nres tsheb hauv paus - tshawb xyuas txoj hauv kev network thiab rov pib ESL cov kev pabcuam. Cov nqi tsis raug txawm hais tias qhov tseeb cov ntaub ntawv txhais tau hais tias kev sib koom ua ke synchronization tau tawg - khawb rau hauv API cav. Cov lus teb qeeb qeeb rau kev ua haujlwm ntawm cov ntaub ntawv, tshwj xeeb tshaj yog ntawm kev xa tawm loj dua. Disappearing bindings qhia cov ntaub ntawv kev noj nyiaj txiag - rov qab los ntawm kev thaub qab tam sim.
Cia Nws khiav
Tsis muaj kev saib xyuas thoob ntiaj teb, tab sis tsis quav ntsej qee yam ua rau muaj teeb meem.
Txhua hnubkev saib xyuas yuav tsum tau ua kom tiav los ntawm kev ceeb toom rau cov ntawv sau offline, roj teeb tsawg, thiab hloov kho tsis tau.Txhua lub lim tiam, tshuaj xyuas cov ntawv ceeb toom xwm txheej thiab tshawb xyuas txhua yam offline ntau tshaj ib hnub.Txhua hli, tshuaj xyuas cov ntawv hauv lub cev hauv thaj chaw muaj plua plav-cov chaw ua mov ci tsis muaj npe nrov-thiab qhov chaw- kuaj xyuas qhov tseeb.Txhua xyoo, tshuaj xyuas seb qhov kev hloov pauv hauv khw puas tau cuam tshuam cov chaw nres tsheb hauv paus thiab npaj hloov roj teeb.
Ntawm cov roj teeb: cov ntawv lo tsis yog cov neeg siv- tuaj yeem siv tau, yog li tag nrho lub tsev tau hloov pauv thaum lub roj teeb poob. Tsis txhob tos rau qhov ua tsis tiav. Thaum 10% ntawm lub nkoj qhia cov lus ceeb toom tsis tshua muaj roj teeb, tso qhov kev txiav txim hloov. Kev txiav txim thaum muaj xwm ceev raug nqi ntau dua thiab cov ntawv tuag thaum lub sij hawm tshaj tawm tsim teeb meem.
Deployment Scale
Kev xa me menyob rau hauv 500 daim ntawv lo xav tau 1-2 lub hauv paus chaw nres tsheb, ib hnub ntawm kev teeb tsa nrog ob tus neeg, thiab huab hosting. Cov phiaj xwm pib zoo rau pab pawg tshiab rau ESL.
Kev xa tawm nruab nrablos ntawm 500 mus rau 3,000 daim ntawv lo xav tau 3-8 lub hauv paus chaw nres tsheb, 2-4 hnub nrog 4-6 tus neeg pab pawg, thiab cov phiaj xwm tiag tiag.
Cov khw muag khoom lojnrog 3,000-15,000 daim ntawv lo txawv. Npaj rau 8-25 lub hauv paus chaw nres tsheb, 1-2 lub lis piam, pab pawg ntawm 8-12, thiab cov servers hauv tsev rau kev ntseeg tau. Kev xa mus rau theem thiab kev tswj xyuas qhov project yog qhov tsim nyog.
Enterprise scalesaum 15,000 daim ntawv lo-flagships, cov khw loj loj- txhais tau tias 25+ chaw nres tsheb hauv paus, 2-4 lub lis piam, 15+ pab pawg neeg uas muaj lub luag haujlwm tshwj xeeb, thiab rov ua dua tshiab. Tau txais kev pab cuam rau kev xa tawm thawj zaug ntawm qhov ntsuas no.
Quality Assurance Checklist
Ua ntej pib:site daim ntawv ntsuam xyuas ua tiav nrog cov duab, RF cuam tshuam mapped, lub hauv paus chaw nres tsheb txoj hauj lwm cim, network infrastructure txheeb xyuas, daim ntawv lo kom muaj nuj nqis nrog contingency, pab neeg luv luv qhia, kev tswj khw.
Thaum lub sij hawm installation:lub hauv paus chaw nres tsheb ntawm qhov siab qhov tseeb, cables kuaj ua ntej txiav tawm, txhua lub hauv paus chaw nres tsheb tau lees paub hauv online ua ntej tsiv mus rau tom ntej, kev ua kom pom tseeb, khi tau siv tau, thaj tsam rov ua dua tshiab dhau 99% +, kev pab them nqi kho mob.
Tom qab ua tiav:tag nrho lub khw refresh nyob rau hauv 15 feeb, 99.9% kev ua tau zoo tus nqi tiav, tus nqi raug soj ntsuam dhau, kev sib koom ua pov thawj, cov neeg ua haujlwm cob qhia, xa cov ntaub ntawv, txhawb kev sib cuag, kev saib xyuas lub sijhawm tsim.
