Cov kev ua tsis tiav no muaj cov qauv, thiab feem ntau yog kuaj tau hauv 30 feeb lossis tsawg dua. Cov lus qhia no yog tsim los ntawm qhov kev daws teeb meem tiag tiag ua haujlwm li cas: pib ntawm qhov koj tuaj yeem pom ntawm qhov screen, tom qab ntawd ua haujlwm rov qab mus rau qhov ua rau. Txawm koj tuavcoj mus muag LCD zaub cov ntxaij vab tshausnyob rau hauv khw muag khoom, khiav panels nyob rau hauv pej xeem kiosks, los yog debug embedded hardware thaum lub sij hawm txoj kev loj hlob, cov txheej txheem kuaj mob yog tib yam.
Cov tsos mob ceev ceev
Siv lub rooj no ua koj thawj lim. Ntau qhov laj thawj tuaj yeem tsim cov tsos mob tib yam, yog li kho nws raws li kev taw qhia pib, tsis yog lus teb kawg.
| Cov tsos mob | Qhov Zoo Tshaj Plaws | Thawj Ua |
|---|---|---|
| Ua tiav qhov screen tsaus, tsis muaj teeb pom kev zoo | Lub zog tsis ua haujlwm lossis tshuab fuse | Ntsuas input voltage ntawm module pins |
| Screen rau tab sis dim heev | Backlight degradation los yog ua tsis tiav LED array | Kuaj backlight circuit ntawm nws tus kheej |
| Cov duab tsaus muag tsuas pom nrog lub teeb nyem | Backlight tsis ua haujlwm - vaj huam sib luag nws tus kheej ua haujlwm | Tshawb xyuas LED strips thiab tsav Circuit Court |
| Flickering lossis flashing zaub | Loose ribbon cable los yog tsis ruaj tsis khov mov voltage | Reseat tag nrho cov connectors; check khoom ripple |
| Vertical lossis kab rov tav kab hla qhov screen | Cracked substrate los yog tsav tsheb IC txhaum | Kev tshuaj xyuas qhov muag; swap tsav tsav tsheb |
| Scrambled los yog tsis muaj cim | Cov txheej txheem mismatch lossis firmware kab laum | Txheeb xyuas qhov chaw sib txuas lus tiv thaiv cov ntaub ntawv |
| Dawb screen tsis muaj cov ntsiab lus | Initialization tsis ua hauj lwm los yog teeb liab poob | Kos raws tu qauv config; paub meej tias lub sijhawm pib dua |
| Daim duab dab tsis tu ncua lossis hlawv -in | Cov duab zoo li qub ntawm lub vaj huam sib luag laus ntev dhau lawm | Lub voj voog fais fab; khiav pixel- rov qab kuaj qauv |
| Kov input tsis sau npe | Kev puas tsuaj kov cable lossis corrupted firmware | Tshawb xyuas ribbon cable; re-flash touch controller |
| Random rov pib dua lossis lub zog caij tsheb kauj vab | Voltage spike los yog tsis txaus tam sim no muaj peev xwm | Ntsuas cov khoom siv nrog oscilloscope; ntxiv surge tiv thaiv |
Dab tsi ua rau LCD Module Failures?
Backlight Degradation
Lub teeb nraub qaum yog qhov tshwm sim ntau tshaj ib zaug - cov khoom tsis ua haujlwm hauv LCD modules. LED arrays maj mam dhau lawv lub neej ua haujlwm - cov tuam txhab tsim nyog cov khoom tawm tsamJEDEC semiconductor kev ntseeg tau kuaj cov qauv, thiab ntsuas lub neej sib txawv ntawm cov neeg siv khoom-qib thiab kev lag luam- qib panels. Ib txwm xa mus rau koj cov ntaub ntawv tshwj xeeb cov ntaub ntawv rau nws cov kev pabcuam hauv lub neej raws li koj qhov kev ua haujlwm, tsis yog daim duab kev lag luam.
Ib qho zaub nrog lub teeb pom kev tsis zoo tseem dhau los ntawm kev kuaj hluav taws xob. Lub vaj huam sib luag ua haujlwm - nws tsuas yog tsis tuaj yeem tsim cov duab nyeem tau hauv ib puag ncig lub teeb. Yog tias qhov screen zoo nkaus li tau txais hauv chav tsaus tab sis yuav luag tsis pom nyob rau hauv qhov chaw ua haujlwm teeb pom kev zoo lossis sab nraum zoov, lub teeb nraub qaum yog thawj qhov kev sim.
⚠️ Feem ntau yuam kev:Kev them nyiaj yug rau qhov dimming backlight los ntawm kev thawb qhov ci kom siab tshaj plaws. Qhov no ua kom cov LED coj thiab ua kom lub neej muaj txiaj ntsig ntawm qhov uas twb muaj lawm -degrading. Xaiv cov khoom siv uas tsim nyog lub teeb ci ntsa iab los ntawm qhov pib zam qhov teeb meem nkaus - saib dab tsi txawvcoj mus muag- qib LCD moduleslos ntawm cov neeg siv khoom- qib kev xaiv.
Connector thiab Cable teeb meem
Ribbon cables, zebra connectors, thiab solder pob qij txha degrade nyob rau hauv kev co, thermal cycling, thiab rov flex. Hom tsis ua haujlwm yog yuav luag ib txwm sib cuam tshuam: flickering ntawm qee qhov kev taw qhia, cov khoom poob qis hauv qab vibration, lossis lub vijtsam uas ua haujlwm thaum pib tab sis tsis ua haujlwm ntawm qhov kub thiab txias. Rov ua dua txhua qhov txuas ua ntej xaj cov khoom daws teeb meem feem ntau ntawm cov lus tsis txaus siab ntawm qhov tsis raug nqi.
Environmental Stress
Cold slows kua crystal teb; tshav kub accelerates polarizer laus thiab nplaum delamination; Cov av noo corrodes electrodes los ntawm sab hauv, ua rau cov khoom uas ploj lawm uas tsis zoo zuj zus tuaj ntau lub lis piam. Ib txwm qhia rau qhov phem tshaj - rooj plaub, tsis yog qhov nruab nrab. Rau cov ntawv thov hauv qhov xav tau ib puag ncig,integrated LCD zaub daws teeb meem nrog matched ib puag ncig ntsuam xyuastsim nyog ntsuas ua ntej xa mus, tsis yog tom qab kev ua tsis tiav.
⚠️ Feem ntau yuam kev:kuaj cov zaub hauv qhov chaw kuaj mob thiab xav tias nws yuav ua tau zoo ib yam sab nraum zoov, hauv lub tsev txias txias, lossis ze ntawm qhov chaw noo noo - yam tsis tau lees paub tias qhov ntsuas IP chav kawm IP thiab qhov ntsuas kub tau ua tau raws li qhov chaw xa tawm.
Cov teeb meem muab hluav taws xob thiab cov tsav tsheb tsis raug
Voltage spikes ua rau tam sim ntawd tsav tsheb IC puas. Kev xa khoom ripple - AC suab nrov ntawm DC rail - ua rau muaj kev hloov maj mam, kev puas tsuaj ntau ntxiv: random resets, duab nrov, thiab luv LED lub neej. Nrog koj lub module cov ntaub ntawv rau nws qhov siab tshaj plaws ripple voltage; tsis muaj universal threshold uas siv thoob plaws txhua hom vaj huam sib luag.
Firmware yoov thiab raws tu qauv tsis sib haum yog ib pawg cais uas ua rau cov khoom siv tsis ua haujlwm tsis txaus ntseeg. Lub vijtsam dawb lossis cov zis tawm tom qab lub rooj sib pauv lossis hloov kho software feem ntau yog qhov teeb meem yuam kev, tsis yog lub vaj huam sib luag tawg. Qhov kev sib txawv no tseem ceeb thaum twgMuab piv rau LCD thiab LED bar screen tawm tswv yim- cov thev naus laus zis sib txawv muaj tus cwj pwm sib txawv thiab kos npe ua txhaum.
Rau -Cov txheej txheem kuaj mob
Ua hauj lwm los ntawm cov no nyob rau hauv kev txiav txim. Nres sai li sai tau thaum koj txheeb xyuas qhov txhaum - tsis tsim nyog swaps nkim sijhawm thiab qhia cov hloov pauv tshiab.
Kauj ruam 1 - Kev tshuaj xyuas qhov muag ua ntej lub hwj chim- qhib.Nrhiav cov kab nrib pleb, condensation tom qab lub vaj huam sib luag, hlawv cov cim ntawm PCB, thiab hloov chaw lossis kinked ribbon cables. Yog tias koj pom lub cev puas tsuaj, tsis txhob siv lub zog. Kev sib txuas luv luv tuaj yeem ua rau cascading kev puas tsuaj uas kim tshaj qhov qub qhov txhaum.
Kauj ruam 2 - Txheeb xyuas qhov hluav taws xob input.Siv ib tug multimeter ntawm lub module lub hwj chim input pins. Cov ntsuas hluav taws xob zoo rau TFT panels yog 3.3V, 5V, lossis 12V - xyuas koj cov ntaub ntawv. Kev nyeem ntau dua 5% sab nraud spec warrants tshawb nrhiav. Rau qhov tsis sib haum xeeb, ntxiv ib qho oscilloscope los xyuas cov khoom ripple tiv thaiv cov ntaub ntawv qhov kev tso cai tshwj xeeb.
Kauj ruam 3 - cais lub teeb rov qab.Hauv chav tsaus nti, ci lub teeb nyem ntawm lub vaj huam sib luag ntawm lub kaum sab xis. Yog tias koj tuaj yeem ua kom pom cov duab faint, lub vaj huam sib luag ua haujlwm thiab tsuas yog lub teeb rov qab ua tsis tiav. Ib qho kev sim no tshem tawm ib nrab ntawm tsob ntoo kuaj mob hauv qab 10 vib nas this - thiab ua haujlwm sib npaug zoo raubar- hom ntawv LCD zaubraws li nyob rau hauv standard rectangular panels.
Kauj Ruam 4 - Hloov cov cables thiab cov boards methodically.Load ib tug paub- qauv xeem zoo. Hloov cov ribbon cable nrog ib qho chaw ua haujlwm uas tau lees paub. Yog tias qhov txhaum ua raws li lub cable, lub cable yog qhov teeb meem. Yog tias nws nyob nrog lub rooj tsavxwm, lub rooj tsavxwm yog tom ntej. Hloov cov khoom kim tshaj plaws, feem ntau siv tau ua ntej.
Kauj ruam 5 - Tshawb xyuas cov txheej txheem kev sib txuas lus.Ib qho screen dawb los yog garbled tso zis tom qab ib tug board swap yog yuav luag ib txwm ib tug configuration yuam kev. Txheeb xyuas baud tus nqi (UART), SPI hom (CPOL/CPHA), lossis I2C chaw nyob tiv thaiv cov ntaub ntawv. Cov kauj ruam no catches ib tug disproportionate feem ntawm faults nyob rau hauvkiosk zaub ib puag ncigqhov twg modules hloov nyob rau hauv daim teb, feem ntau los ntawm cov ntaub ntawv tsis tiav.
Kauj Ruam 6 - Rov ua dua qhov chaw nyob ntawm lub rooj ntev zaum.Ib qho zaub uas ua haujlwm hauv chav kuaj tab sis ua tsis tiav hauv kev xa tawm yuav luag ib txwm muaj qhov ua rau thermal lossis vibration hauv paus. Lub connector uas yog marginal ntawm 22℃yuav qhib kiag li ntawm 55 degree. Siv cov cua sov uas tswj tau thaum lub rooj ntev zaum sim - ib qho txhaum uas tshwm saum toj ib qho ntsuas kub txheeb xyuas qhov thermal expansion raws li lub tshuab ncaj qha.
Kho lossis Hloov? Ib Daim Ntawv Txiav Txim Siab
Kho ua rau kev nkag siab thaumqhov txhaum yog nyob rau hauv ib qho kev hloov pauv tau ib qho - cable, backlight array, firmware hloov tshiab - lub module yog ib feem ntawm ib qho system uas qhov kev hloov pauv cuam tshuam nrog kev poob qis lossis rov tsim dua, thiab tus nqi kho dua yog qhov tseeb tsawg dua chav tsev tshiab.
Kev hloov ua kom pom tseeb dua thaumntau cov tsos mob tshwm sim ib txhij. Dim backlight, connector hnav, thiab cov duab ghosting tshwm sim ua ke yog ib qho kev txhim khu kev qha ntawm qhov kawg ntawm kev pab cuam lub neej, tsis yog ib tug fixable txhaum. Kev hloov pauv kuj ua rau muaj kev nkag siab zoo thaum lub module tam sim no muaj cov lus qhia zoo dua - brightness siab dua, dav dua kev khiav hauj lwm kub, zoo ingress tiv thaiv - uas yuav txo tau lub nra tom ntej.
Ua ntej cog lus rau ob txoj hauv kev, ua haujlwm ntawm tsib lo lus nug no:
- Qhov no puas yog chav tsev thawj qhov tsis ua haujlwm, lossis nws puas tau ua ntej?
- Puas yog qhov txhaum txwv rau ib qho, hloov tau?
- Puas yog tus nqi kho tag nrho - qhov chaw, kev ua haujlwm, thiab lub sijhawm poob haujlwm - puas nyob hauv qab tus nqi hloov?
- Lub tsev kho mob puas yuav kav ntev los ntawm qhov kev xav tau kev pabcuam ntxiv?
- Puas yog qhov kev hloov pauv tam sim no muaj cov ntsiab lus zoo dua rau daim ntawv thov no?
Yog tias peb lossis ntau cov lus teb txaus siab hloov pauv, feem ntau yog txoj hauv kev kom pom tseeb. Xauj qhov puvcov khoom lag luamlos yogtham nrog tus kws kho mob tshwj xeebtxog kev xa khoom. Rau kev muag khoom thiab kos npe cov ntsiab lus,kev cai LCD configurations rau khw muag khoom signagefeem ntau xa tau zoo dua ntev - lub sij hawm kev lag luam ntau dua li qhov ncaj qha zoo li -rau -zoo li sib pauv.
Kev Tiv Thaiv Kev Tiv Thaiv
- Environmental tswj:Muab tso rau hauv qhov ntsuas qhov ntsuas kub thiab cov av noo, siv qhov phem tshaj - rooj plaub rau kev npaj. Hauv qhov chaw siab -cov av noo, cov ntaub thaiv npog nrog cov ntawv pov thawj IP yog qhov yuav tsum tau ua, tsis yog kev ceev faj.
- Kev tswj fais fab:Siv cov khoom siv tswj hwm nrog kho vajtse tiv thaiv kev tiv thaiv. Tsis txhob khiav backlights tsis tu ncua ntawm qhov ci siab tshaj plaws - kev tswj kev ci ntsa iab txo qis LED coj tsis pom kev cuam tshuam rau kev siv tau.
- Teem sijhawm soj ntsuam:Txhua hli - xyuas lub rooj txuas txuas thiab nrhiav kev sib xyaw ua ke. Peb lub hlis twg - khiav cov qauv kuaj mob thiab txheeb xyuas cov khoom siv hluav taws xob hauv qab load. Txhua xyoo - xyuas cov khoom ripple thiab tshuaj xyuas cov txheej txheem kho qhov muag rau delamination lossis polarizer aging.

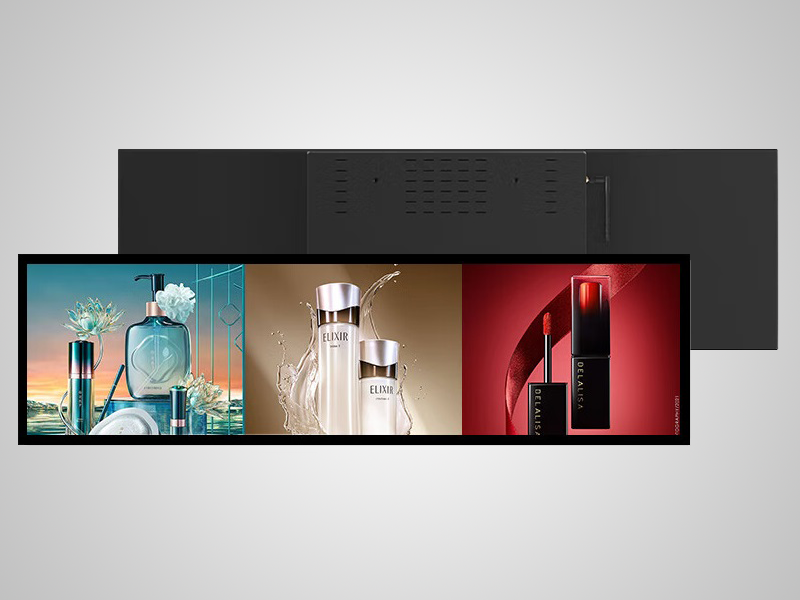

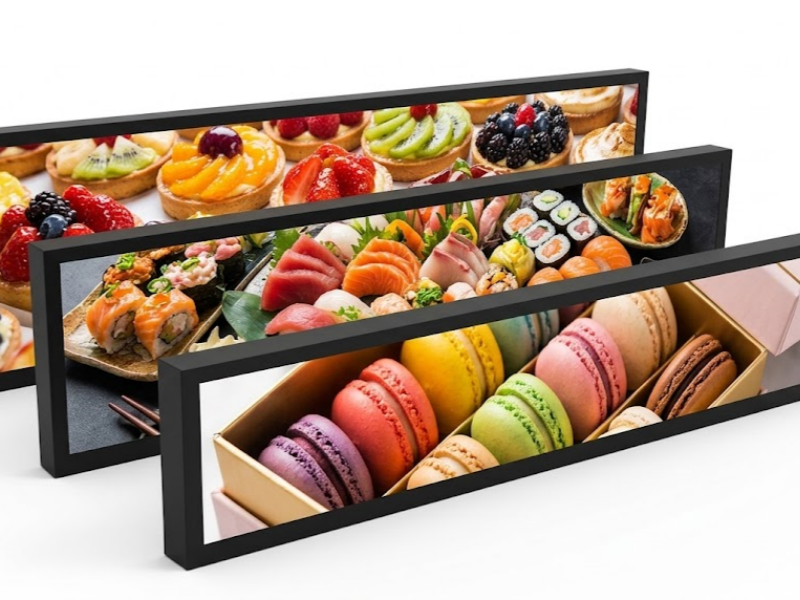

Rautus kheej - chaw ua haujlwmkev xa mus ua haujlwm tsis tu ncua nyob rau hauv siab - ib puag ncig kev tsheb khiav, kev kuaj xyuas peb lub hlis twg yog qhov siab tshaj - tus nqi ntawm kev saib xyuas ib leeg.Stretched LCD cov ntxaij vab tshaus siv nyob rau hauv lub tsev muag khoom ib puag ncigfim tshwj xeeb raug rau cov av noo thiab tshuaj tua kab mob uas cov txheej txheem txij nkawm yuav tsis ua tiav.
Cov lus nug nquag
Kuv LCD pom lub vijtsam dawb - puas yog lub vaj huam sib luag tawg?
Tsis tas li. Lub vijtsam dawb feem ntau yog kev sib txuas lus lossis kev pib ua tsis tiav ntau dua li kev puas tsuaj rau lub cev. Txheeb xyuas qhov kev teeb tsa raws tu qauv - baud tus nqi, SPI hom, lossis I2C chaw nyob - tawm tsam module cov ntaub ntawv. Qhov no yog qhov tshwj xeeb tshaj yog tom qab hloov kho firmware lossis board swap qhov chaw tej zaum yuav tsis tau pauv kom raug.
Kuv yuav qhia li cas yog lub teeb nraub qaum lossis LCD vaj huam sib luag ua tsis tiav?
Ci ib lub teeb nyem ntawm qhov screen ntawm lub kaum sab xis hauv chav tsaus. Yog tias koj tuaj yeem pom cov duab faint, lub vaj huam sib luag tsim cov zis kom raug thiab tsuas yog lub teeb rov qab ua tsis tiav. Tsis muaj duab nyob rau hauv lub teeb nyem txhais tau hais tias qhov txhaum yog nyob rau hauv lub vaj huam sib luag, lub rooj tsavxwm tsav tsheb, los yog lub teeb liab txoj kev ntawm lawv.
Lub flickering zaub tuaj yeem kho yam tsis tau hloov lub module?
Feem ntau, yog. Flickering feem ntau yog tshwm sim los ntawm kev xoob ribbon cable, marginal solder sib koom, los yog ntau tshaj ripple. Reseating connectors thiab xyuas cov khoom voltage stability nyob rau hauv load daws feem ntau ntawm flickering kev tsis txaus siab ua ntej yuav tsum tau hloov cov khoom.
Nws puas muaj kev nyab xeeb rau lub hwj chim ntawm cov zaub uas tau raug ya raws?
Tsis yog. Tso cai rau lub module kom qhuav tag nrho hauv qhov chaw qis -cov av noo ua ntej siv fais fab. Kev siv lub zog ntawm cov duab ntub dej muaj kev pheej hmoo electrode corrosion thiab luv luv Circuit Court uas tuaj yeem ua rau lub vaj huam sib luag puas lawm.
Vim li cas kuv cov zaub ua haujlwm ntawm lub rooj ntev zaum tab sis ua tsis tiav hauv daim teb?
Kev ua haujlwm tsis sib xws-tsuas yog qhov ua tsis tiav yuav luag ib txwm tshwm sim los ntawm kev nthuav dav thermal ntawm kev ua haujlwm kub, kev vibration-induced connector intermittency, los yog condensation thaum pib. Rov ua dua qhov chaw xa tawm tiag tiag - qhov kub thiab txias, kev co, av noo - thaum lub rooj zaum sim. Rau kev taw qhia txog kev xaiv cov khoom siv kho vajtse uas tswj cov kev xav tau ntau dua,no saib ntawm siab -kev ua tau zoo LCD zaub xaivnpog cov specification sib txawv uas tseem ceeb tshaj plaws.
Xaus
LCD module tsis ua haujlwm tuaj yeem nyeem tau thaum koj paub tias yuav nrhiav dab tsi. Lub vaj huam sib luag tsaus nti, lub vijtsam flickering, cov zis tawm tsis txaus - txhua daim duab qhia chaw rau cov npe tswj tau ntawm qhov ua tau tshwm sim, thiab cov txheej txheem kuaj mob pom qhov tseeb qhov txhaum sai dua li hloov cov khoom ntawm random. Cov txheej txheem tib yam kuj qhia rau koj kom meej thaum kho tau khiav nws cov chav kawm thiab kev hloov pauv yog cov lus teb zoo.
Yog tias qhov kev ua tsis tiav tsis ntev los no tau muab cov khoom siv tshiab tso rau hauv koj cov txheej txheem, tshawb xyuasYuav ua li cas niaj hnub kev lag luam LCD cov ntxaij vab tshaus piv rau cov kev xaiv zaub ib txwm muaj, los yogxa ib qho kev nuglos tham txog koj qhov kev thov tshwj xeeb.
