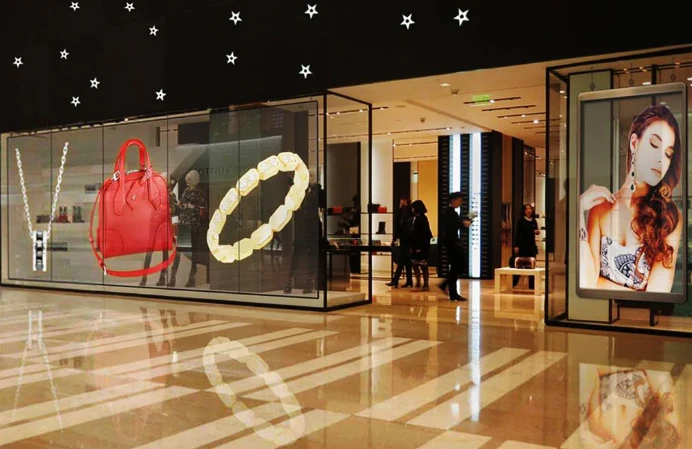

Qhov hnyav tua ntau qhov haujlwm ntau dua li pob nyiaj siv.
Pob tshab cov ntxaij vab tshaus hnyav3-12 kg/m²thiab khiav txog10mm tuab. Tsoos cov ntxaij vab tshaus nrog cov txee hnyav30-50 kg/m²thiab ntsuas50-150mm tob. Cov cuab yeej cuab tam lub tsev nrog cov qhov rais qub feem ntau tsis tuaj yeem txhawb nqa ib txwm muaj qhov hnyav ntawm LED yam tsis muaj kev txhawb nqa steel uas yuav rhuav tshem cov npe cuab yeej cuab tam. Pob tshab cov ntxaij vab tshaus mount ncaj qha mus rau sab hauv iav qhov chaw uas tsis muaj kev ua haujlwm. Kev teeb tsa yuav siv sij hawm hnub ntau dua li lub hlis.
Ib lub khw muag khoom nrog 500 iav storefronts dov tawm pob tshab cov ntxaij vab tshaus thoob plaws hauv lub network tsis tas kov cov qauv tsim. Sim ua tib yam nrog cov ntxaij vab tshaus ib txwm siv yuav xav tau kev tsim kho vaj tse ntawm txhua qhov chaw -ib txoj haujlwm uas tua feem ntau cov lus pom zoo ua ntej lawv mus txog qhov kev pom zoo nyiaj txiag zaum kawg.
Qhov Peb Yog Qhov Tseeb Tiag
Tau ntau xyoo lawm, cov ntxaij vab tshaus LED ib txwm muaj nyob txhua qhov chaw -chaw ncaws pob scoreboards, khw muag khoom kos npe. Lawv ua haujlwm zoo: ci, xim raug, txhim khu kev qha. Tab sis lawv tuaj nrog kev sib pauv tsis muaj leej twg tuaj yeem ua haujlwm nyob ib puag ncig: txhua qhov screen yog ib phab ntsa. Thaiv lub teeb, thaiv kev pom, coj qhov chaw.
Transparent LED tig qhov sib npaug. Cov khoom sib txawv ntawm cov khoom ua ke.
Daim ntawv thov kev muag khoom yog dab tsi ua rau muaj kev loj hlob feem ntau tam sim no. Lub khw qhov rais yeej ib txwm ua vaj tsev zoo tshaj plaws. Koj xav qhia cov khoom lag luam thiab khiav kev tshaj tawm ib txhij. Ib txwm LED yuam kev xaiv- npo lossis qhov rais. Pob tshab LED tshem tawm qhov kev xaiv ntawd kiag li. Cov neeg siv khoom pom cov ntsiab lus tshaj tawm thiab cov khoom muag tib lub sijhawm. Nike thiab Zara flagship qhov chaw xam qhov no tawm thaum ntxov. Cov ntaub ntawv siv ib leeg no piav qhia vim li cas pob tshab LED tau txav los ntawm niche xav paub txog kev lag luam loj hauv tsib xyoos.
Lawv Ua Li Cas
Cov ntxaij vab tshaus ib txwm muaj qhov tseem ceeb ib yam: cramming ntau pixels li sai tau rau hauv ib cheeb tsam. LED chips-txawm yogSMD (Nto Mount Ntaus), COB (Chip on Board), los yog cov lausDIP (Dual In{0}}kab Pob)hom- tau ntim nruj rau hauv PCB substrates. Lub npog ntsej muag dub lossis epoxy txheej npog txhua yam kom nqus tau lub teeb pom kev zoo thiab txhawb qhov sib txawv.
Cov txiaj ntsig tau hais rau lawv tus kheej. COB panels ntaus qhov sib piv piv saum toj no20,000:1. Pixel pitches mus zoo lip0.6mm uarau 4K thiab 8K zaub. Cov chav nyob sab nraum zoov thawb10,000 nits.
Tab sis tsoos LED cov ntxaij vab tshaus thaiv 100% ntawm lub teeb hla lawv. Lawv yog cov phab ntsa digital. Zoo rau kev cuam tshuam, txaus ntshai rau txhua yam uas koj xav pom los ntawm.

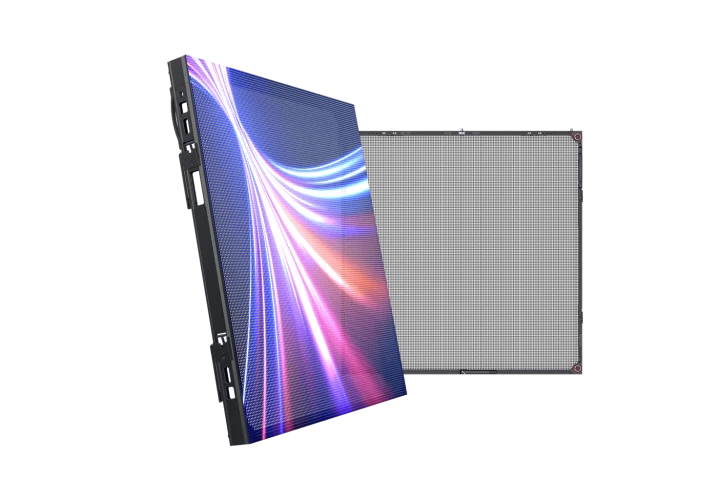

Pob tshab cov ntxaij vab tshaus pib los ntawm qhov kawg. Es tsis txhob ua kom ntau pixel suav, lawv tau tsim nyob ib puag ncig cia lub teeb los ntawm thaum khaws cov duab zoo. Peb txoj hauv kev tseem ceeb muaj nyob.Sawb-raws li kev tsimmuab cov chips LED tso rau hauv nqaim aluminium lossis PCB strips nrog qhov khoob ntawm lawv- lub teeb hla dhau qhov khoob, tsoo 60-90% pob tshab nyob ntawm qhov sib nrug.Zaj duab xis-raws li versionsembed micro-LEDs rau hauv ultra-thin pob tshab substrates (nyob ib ncig ntawm 4mm tuab, hnyav 3-6 kg / m²) uas lo ncaj qha rau ntawm iav uas twb muaj lawm.iav -kev tsim qauvSandwich LED ntsiab ntawm ob txheej iav, tig architectural iav rau hauv ib qho screen.
Ntau qhov sib txawv ntawm strips txhais tau tias ntau lub teeb tau dhau los, tab sis tsawg dua pixels ib square meter. Txhua lub npov pob tshab yog kev sib haum xeeb ntawm ob yam no.

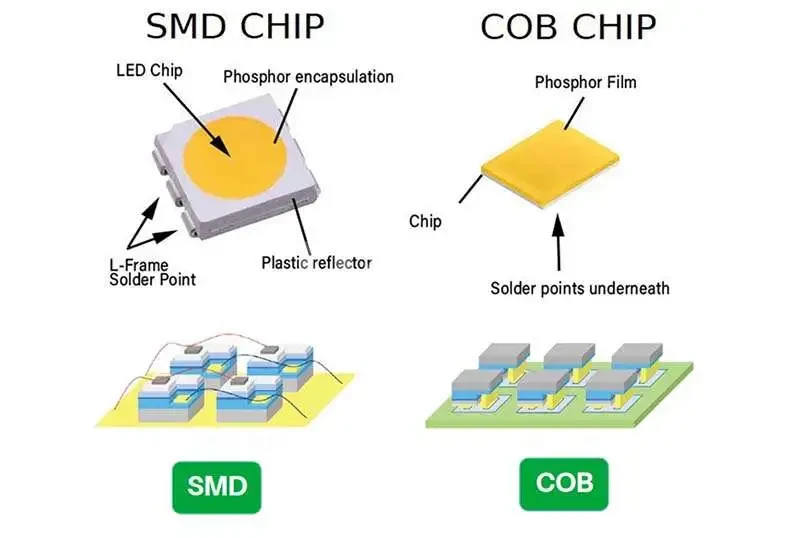

LED Ntim Hom
SMD-Nto Mount Ntaustau nyob ib ncig ntawm kaum xyoo. Cov chips tus kheej hauv cov vaj tsev me me, soldered mus rau PCBs. Lub tshuab yog ncaj qha, uas yog precisely nws zoo. Cov saw hlau yog cov paub tab, cov kws tshaj lij paub ua haujlwm nrog nws, thiab thaum ib leeg LED tuag nws tuaj yeem hloov pauv yam tsis tau hloov tag nrho cov module. Qhov no yog qhov pov thawj tshaj plaws thiab txhim khu kev qha LED thev naus laus zis: tsis txiav-ntug, ua haujlwm tsis tu ncua, nqi- siv tau los tswj. Qhov sib txawv zaum ib ncig1,200-1,800:1. Feem ntau units kav txog50,000 teevua ntej brightness poob ceeb thawj. Rau ib yam dab tsi P1.2 lossis coarser, SMD tseem yog qhov kev xaiv ua ntej rau qhov laj thawj zoo.
COByog qhov uas tej yam txaus siab-thiab kim. Chip on Board hla tus neeg lub tsev yas nkaus xwb. Ntau LED chips tau mounted ncaj nraim mus rau lub substrate, ces them nrog ib tug resin txheej. Cov txiaj ntsig engineering tau txais txiaj ntsig los ntawm qhov ntawd: tshav kub dissipates roughly 3x zoo dua (tsis muaj yas vaj tse cuab kev sov), qhov sib txawv dhia dhau los20,000:1(uas qhov chaw sib koom ua ke absorbs ambient lub teeb zoo dua), thiab lifespan txuas ntxiv mus100,000 teev. Nws yog tib txoj kev siv tau rau ultra- cov suab zoo hauv qab P1.0. Kev lag luam tawm: thaum ib yam dab tsi ua tsis tiav, tag nrho cov module yuav tsum tau hloov ntawm$200-300 rau qhov xwm txheej. Thiab tus nqi pem hauv ntej khiav ntau dua. Cov thev naus laus zis haum rau kev tshaj tawm cov studios thiab siab -ib puag ncig koom nrog. Nws sawv cev rau kev nqis peev ntau rau lub tsev so chaw tos txais.

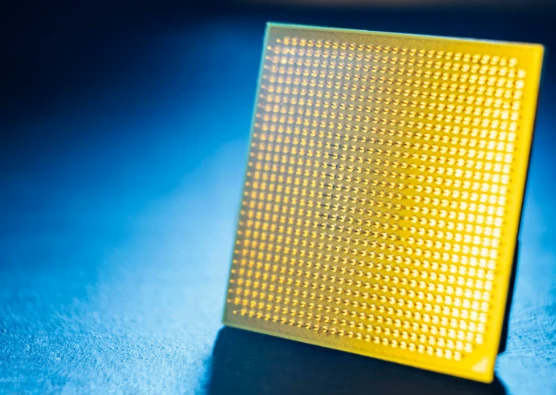

Ces muajGOB-SMD nrog txheej tiv thaiv. Glue ntawm Board. Tib lub hauv paus tech, tab sis nrog ib txheej ntawm optical kua nplaum npog lub LED nto. Qhov no muab kev ruaj khov zoo dua tiv thaiv kev sib cuag ntawm lub cev thiab cov av noo thaum khaws kev kho kev lag luam ntawm SMD. Qee tus neeg koom ua ke pom zoo kom nws ua rau siab - chaw muag khoom tsheb thauj mus los. Lwm tus xav tias nws tsis tsim nyog rau feem ntau daim ntawv thov. Cov txiaj ntsig sib txawv nyob ntawm qhov kev siv tshwj xeeb.
Feem ntau pob tshab cov ntxaij vab tshaus siv hloov strips -raws li SMD mounting los yog tshwj xeeb pob tshab substrates. Qee tus qauv zoo tshaj plaws siv COB-pob tshab hybrid mus kom ze.
Cov Specs Uas Tseem Ceeb (Thiab cov uas tsis yog)
Tsis yog txhua qhov specs tsim nyog sib npaug.
Pob tshab
Transparency ranges ntawm50% txog 95%ntawm pob tshab npo nyob ntawm kev teeb tsa. Ib txwm zaum ntawm 0%- uas yog qhov tseem ceeb rau lawv ua haujlwm li cas. Coarser pixel pitches txhais tau tias ntau qhov sib txawv ntawm LED strips, ntau lub teeb hla dhau. Push mus rau P9.26 thiab koj yuav tau dhau los 80% pob tshab, tab sis thaum lub sijhawm ntawd koj tsuas yog tsim nyog rau loj - teev saib - lub tsev facades pom los ntawm hla txoj kev.
Kev daws teeb meem
Kev daws teeb meem yog ib txwm LED lub meej yeej. COB mus zoo liP0.4. Standard SMD cov ntxaij vab tshaus hauv qab tawm ib ncigP1.0-P1.2. Transparent screens tam sim no max tawm ib ncigP2.6. Feem ntau AV integrators siv kev suav ceev: faib pixel pitch (hauv mm) los ntawm 0.3 kom tau txais yam tsawg kawg nkaus saib qhov deb hauv meters. Yog li P3.9 pob tshab npo xav tau txog 13 meters ua ntej pixelation ploj. P1.2 ib txwm tshuaj ntsuam zoo li ntse los ntawm tsuas yog 4 meters tawm.
Brightness
Rau kev siv sab hauv tsev, pob tshab LED feem ntau tso tawm800-2,500 nits. Ib txwm nyob sab hauv tsev cov ntxaij vab tshaus khiav600-1,500 nits-yog li pob tshab yeej muaj ntug hauv ntau qhov kev teeb tsa. Cov khw muag khoom xav tau punch ntau dua: pob tshab cov ntxaij vab tshaus feem ntau khiav4,000-5,500 nits. Lub hnub ncaj ncaj yog qhov uas ib txwm tseem nyob hauv -lawv thawb5,000-10,000 nitsthaum lub vijtsam pob tshab tom qab iav tawm tsam qis dua 6,000 nits.
Contrast thiab Xim
Kev sib piv thiab xim- LED ib txwm muaj nyob ntawm no, thiab qhov no yuav tsis hloov. Lub npog ntsej muag dub tsim absorbs ambient lub teeb, ua kom cov xim dub. COB technology posts lab- ntsuas qhov sib piv piv rau saum toj no20,000:1. Qhov twg cov ntxaij vab tshaus ib txwm qhia dub, pob tshab cov ntxaij vab tshaus qhia txawm tias tom qab lawv. Ib chav sib tham, chaw nres tsheb, nruab hnub. Tsis muaj ntau npaum li cas ntawm engineering kho qhov no - nws yog los ntawm kev cia lub teeb los ntawm.

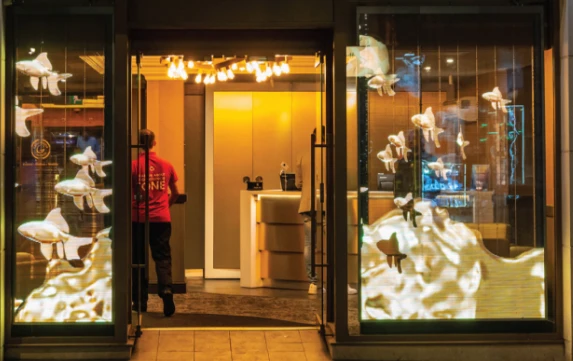

Yam Koj Yuav Them Tiag
Cov no yog tus nqi FOB Shenzhen -tus nqi tsaws hauv North America lossis Europe feem ntau ntxiv 15-25%. Tus nqi hloov pauv; LED nti nqi poob kwv yees li 12% ntawm Q1 thiab Q3 2024.
Pob tshab LED
Nkag mus - theem sab - emitting panels khiav$580-950/m². Nruab nrab-ntau yam pem hauv ntej-emitting- qhov twg feem ntau kev lag luam kev teeb tsa av- zaum ntawm$1,100-2,400/m². Pob tshab zaj duab xis LED mus rau$1,150-2,800/m². Holographic pob tshab qhia thawb$1,400-3,200/m².
Kev cai LED
Sab nraum zoov SMD (P4-P10) yog qhov pheej yig tshaj ntawm$150-400/m². Sab hauv SMD (P1.5-P3) khiav$300-800/m². Zoo-pitch COB (P0.9-P1.2) hits$1,000-2,500/m². Ultra- zoo COB (P0.6 thiab hauv qab) pib ntawm$3,000+/m².
Kev teeb tsarau pob tshab LED feem ntau khiav $200-500/m²-txoj kev ncaj nraim mus rau cov iav uas twb muaj lawm. Kev teeb tsa LED ib txwm siv $ 500-2,000 / m² ib zaug koj ua tau raws li qhov yuav tsum tau ua. Qhov no yog qhov uas qhov sib txawv qhov hnyav tau hais thaum pib tshwm sim hauv pob nyiaj siv.
Cov nqi hluav taws xob txhua xyoontawm 100m² installation khiav 12 teev ib hnub twg: kwv yees li $3,000-4,500 rau pob tshab, $5,000-7,500 rau ib txwm. Pob tshab cov ntxaij vab tshaus rub 30-40% tsawg zog-tsawg LED chips ib square meter, passive txias es tsis txhob ua kom cua.
Cov ntsiab lus tsimntxiv lwm tus neeg hloov pauv tsis nco qab. Cov duab pob tshab xav tau cov ntsiab lus tsim los rau cov keeb kwm yav dhau los pob tshab- cov cheeb tsam dub qhia los ntawm pob tshab.
Installation thiab Maintenance Reality
Transparent LED cov ntxaij vab tshaus mount ncaj qha rau ntawm iav qhov chaw siv cov nplaum, cov tshuab sib nqus, lossis cov khoom siv kho tshuab. Tsis muaj steel qauv rau feem ntau daim ntawv thov. Sijhawm Sijhawm: hnub rau lub asthiv.
Cov ntxaij vab tshaus LED ib txwm xav tau kev txhawb nqa kev txhawb nqa, kev ntsuas qhov hnyav, kev ntsuas cua rau sab nraum zoov, kev tso cai hauv tsev ntau zaus. Sijhawm Sijhawm: lis piam mus rau hli.
Kev tu ua haujlwm txawv ib yam nkaus. Transparent cov ntxaij vab tshaus siv modular sawb / vaj huam sib luag hloov. Cheebtsam yog lub teeb txaus rau ib leeg - cov kws kho mob. Ib txwm SMD cov ntxaij vab tshaus tso cai rau ib tus neeg hloov pauv LED tab sis xav tau cov kws tshaj lij nrog kev ua kom raug soldering -$ 10-15 rau ib qhov xwm txheej. Ib txwm COB cov ntxaij vab tshaus xav tau kev hloov pauv qib ntawm $200-300+ ib qho kev kho qhov teeb meem, txawm tias qhov ua tsis tiav tshwm sim tsawg dua.
Qhov twg Txhua Tus
Qee qhov project poob pom tseeb rau hauv ib qho chaw pw hav zoov.
Pob tshab LED yeej:Cov iav kab hlau rhuav phab ntsa cov tsev nyob qhov twg facades dhau los ua qhov chaw tshaj tawm thaum ua kom zoo nkauj zoo nkauj. Khw khw atriums thiab iav partitions. Exhibition halls thiab tsev cia puav pheej muab cov ntsiab lus digital dhau ntawm lub cev. Automotive showrooms. Cov theem thiab cov xwm txheej keeb kwm yav dhau uas cov neeg ua yeeb yam tshwm sim hauv cov ntxaij vab tshaus.

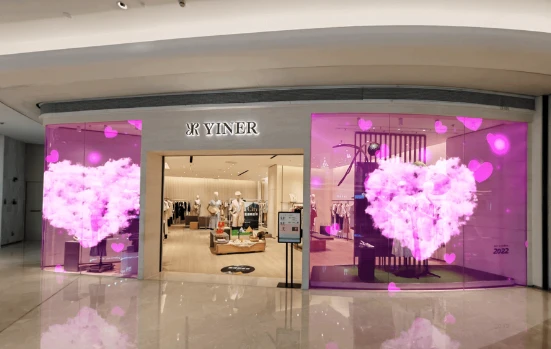

Traditional LED yeej:Sab nraum zoov advertising billboards xav tau siab tshaj plaws ci nyob rau hauv lub hnub ncaj qha. Chaw ntau pob qhia ntawm 50+ meters qhov twg pixel suab tsis cuam tshuam. Tshaj tawm cov studios thiab tswj cov chav uas qhov tseeb xim tsis yog -xav tau. Kev hais kwv txhiaj tseem ceeb cov ntxaij vab tshaus npog ntau pua square meters. Cov ntaub ntawv tsheb thauj mus los qhia pom qhov pom pom qhov tsis muaj dab tsi ntxiv.
Qhov twg?
Puas muaj iav koom nrog uas koj xav khaws cia? Lub teeb ntuj puas tseem ceeb rau qhov chaw ua haujlwm li cas? Cov qauv puas tuaj yeem ua tau 30-50 kg / m²? Dab tsi yog qhov pom qhov deb? Puas yog pob nyiaj xav tau los suav rau kev tsim kho vaj tsev?
Rau pawg loj hlob ntawm tej yaam num uas muaj xws li iav architecture thiab tej yam ntuj tso teeb pom kev zoo, pob tshab LED tau hloov los ntawm nthuav lwm txoj rau lub neej ntawd xav. Rau txhua yam ntxiv - sab nraum daim ntawv tshaj tawm, tshaj tawm cov studios, chaw ntau pob qhia - LED ib txwm nyob raws nraim li nws ib txwm ua: pov thawj, ci, nqi- zoo, thiab tsis pom tseeb.
